Ignition System - Service Information
>>
Ignition Coil And Spark Plug
>>
Components [09/2015 - ]
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components [09/2015 - ]: Illustration

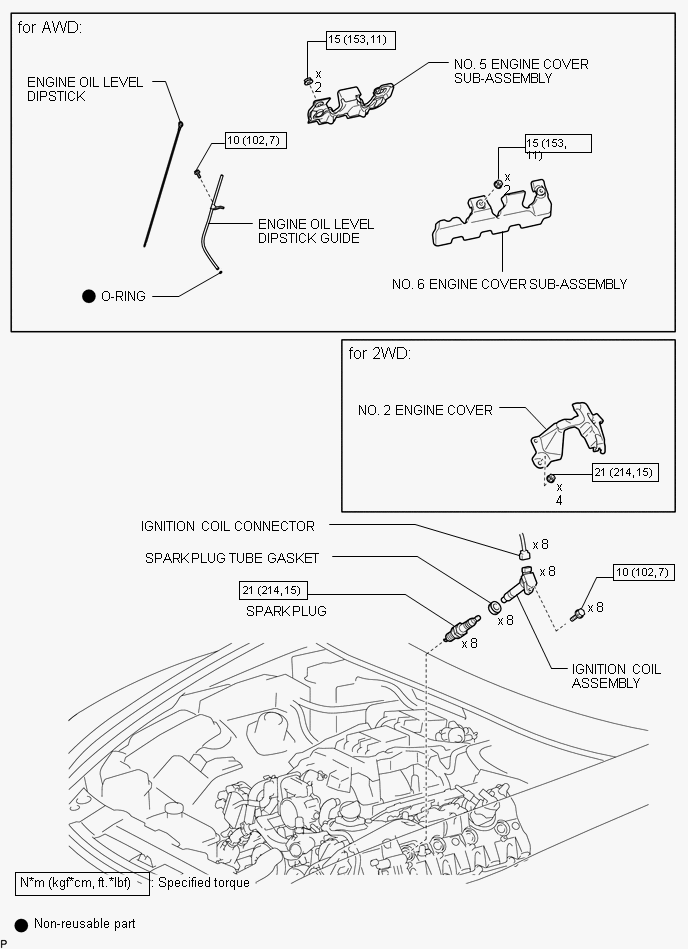

Fig 1: Ignition Coil And Spark Plug Component Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

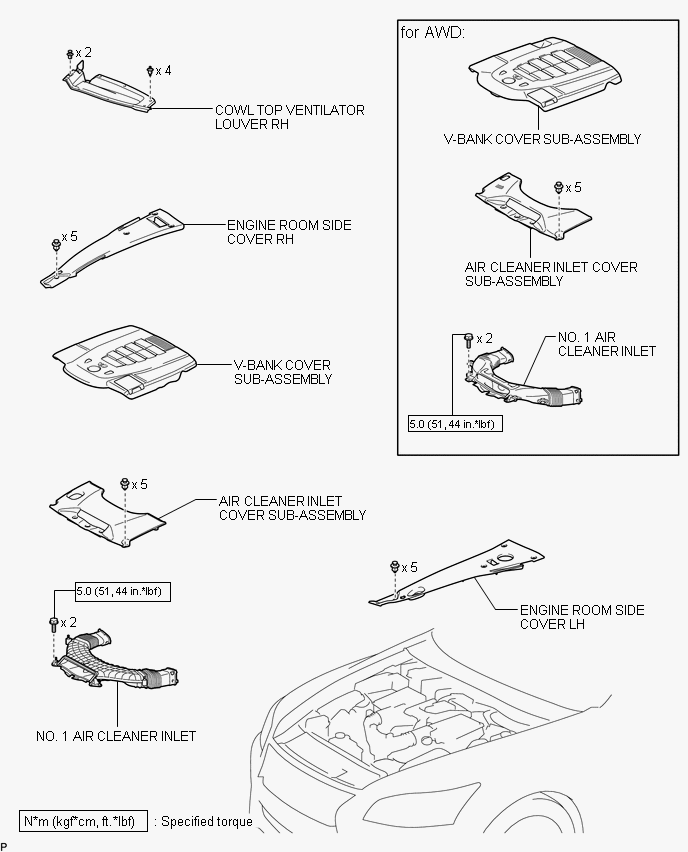

Fig 1: Ignition Coil And Spark Plug Component Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

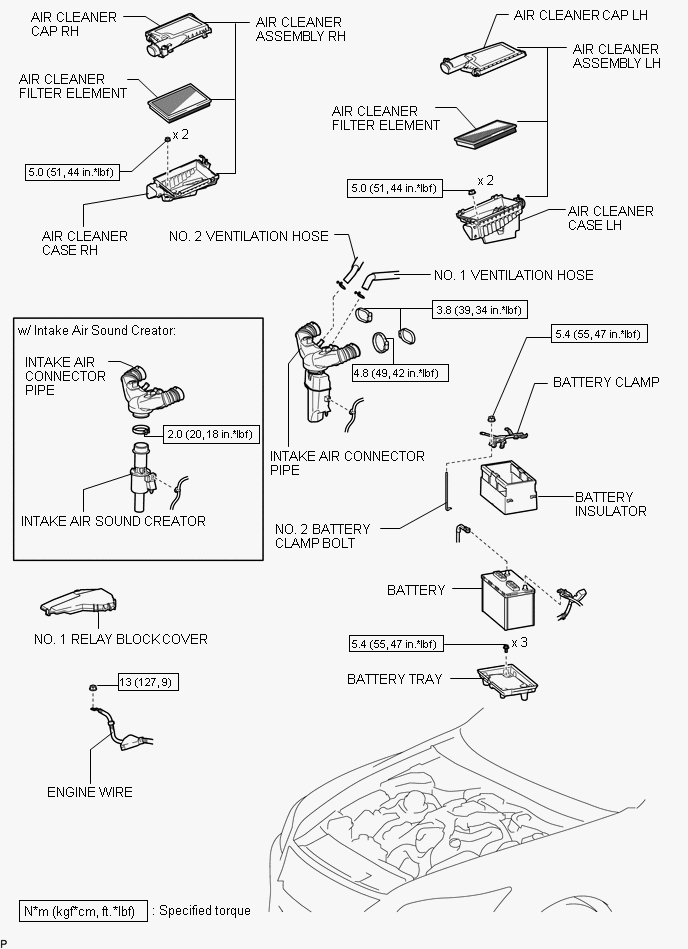

Fig 1: Ignition Coil And Spark Plug Component Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
