Installation [09/2015 - ]: Procedure

1. Install a new gasket to the relief valve.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

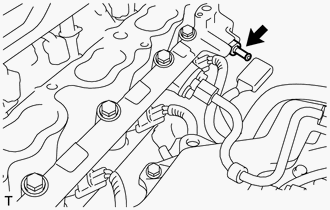

2. Using a 14 mm deep socket wrench, install the relief valve to the No. 2 delivery pipe.

   Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

   NOTE:

   • Do not apply oil to the threads of the relief valve and delivery pipe.
   • Do not allow foreign matter to enter the pipe during the installation.

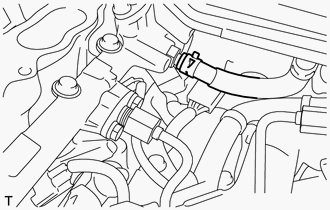

3. Connect the No. 3 fuel hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(Refer to INSTALLATION [09/2015 - ] )

Refer to PROCEDURE - Step 1
