Components [09/2015 - ]: Illustration

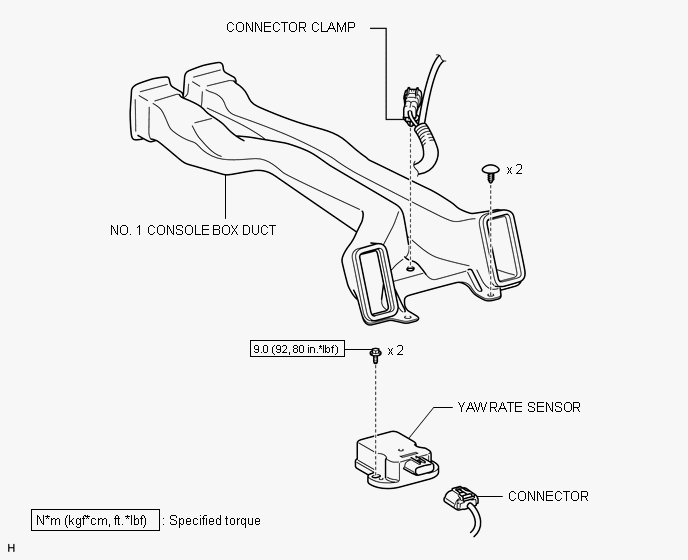

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications
GTY675595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
