Components [09/2015 - ]: Illustration

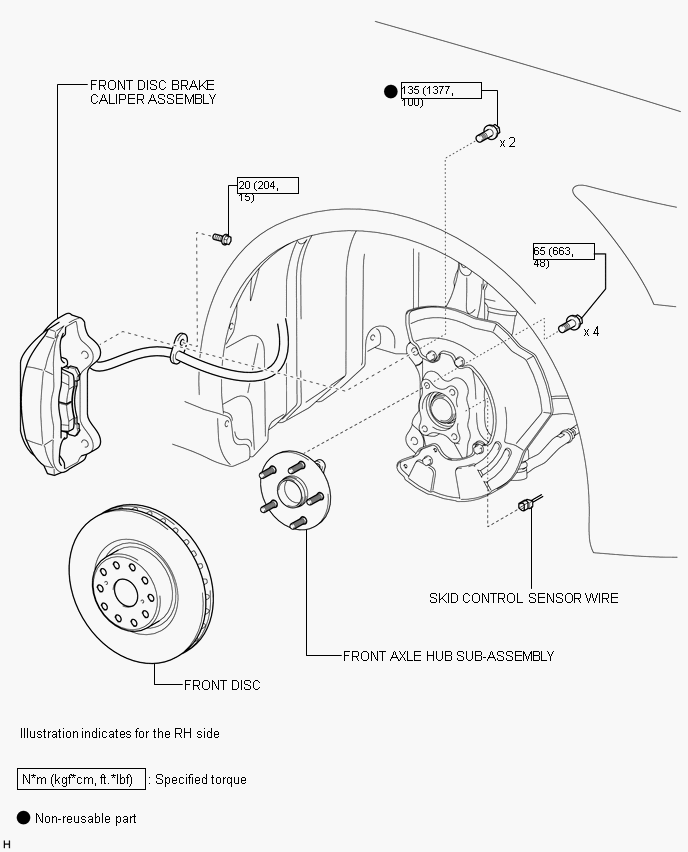

Fig 1: Front Speed Sensor (2Wd) Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

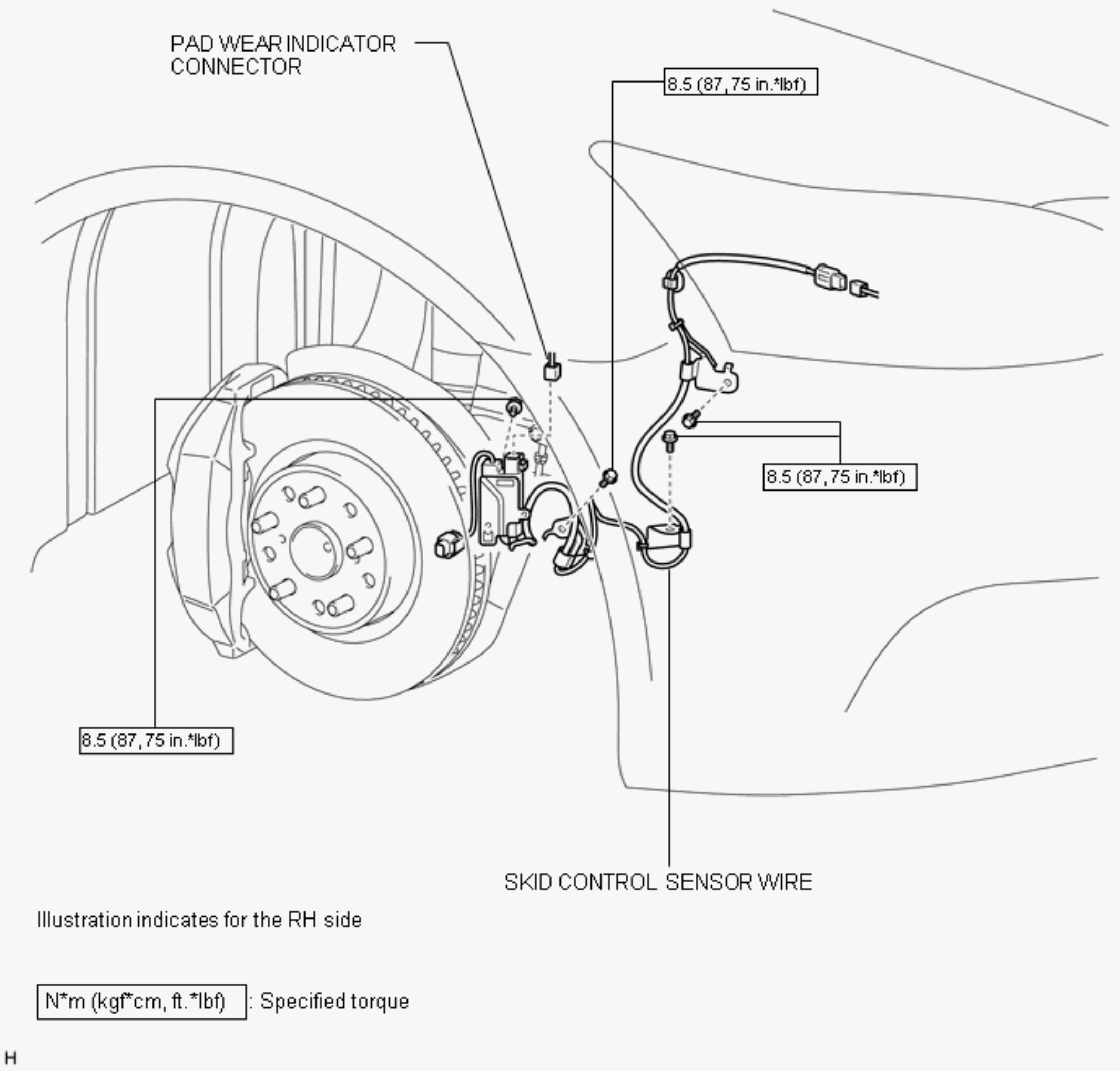

Fig 1: Front Speed Sensor (2Wd) Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
