Removal [09/2015 - ]: Procedure

  1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

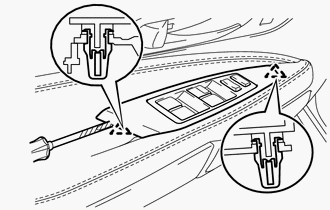

    1. Using a screwdriver, detach the 2 clips.
      GTY396303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the connector and remove the armrest base panel assembly.
      GTY665349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 screws and multiplex network master switch assembly.
      GTY684161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
