Components [04/2013 - 10/2017]

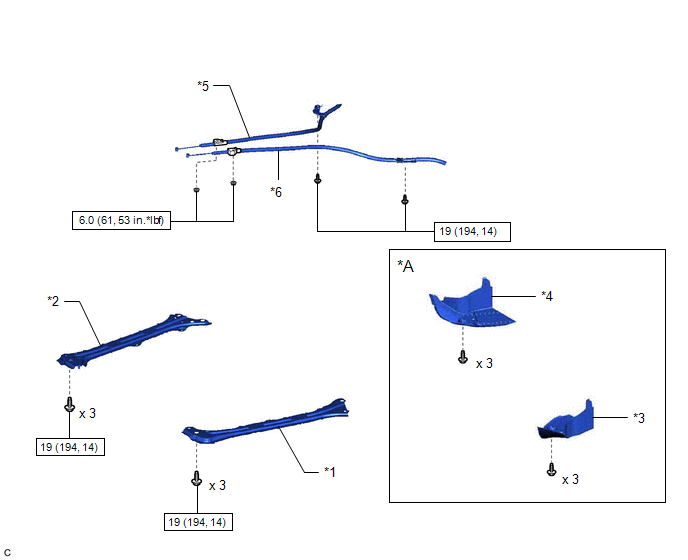

| *A | For Half Cover Type | - | - |
| *1 | REAR BODY MOUNTING CUSHION SUB-ASSEMBLY LH | *2 | REAR BODY MOUNTING CUSHION SUB-ASSEMBLY RH |
| *3 | REAR FLOOR SIDE MEMBER COVER LH | *4 | REAR FLOOR SIDE MEMBER COVER RH |
| *5 | NO. 2 PARKING BRAKE CABLE ASSEMBLY | *6 | NO. 3 PARKING BRAKE CABLE ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

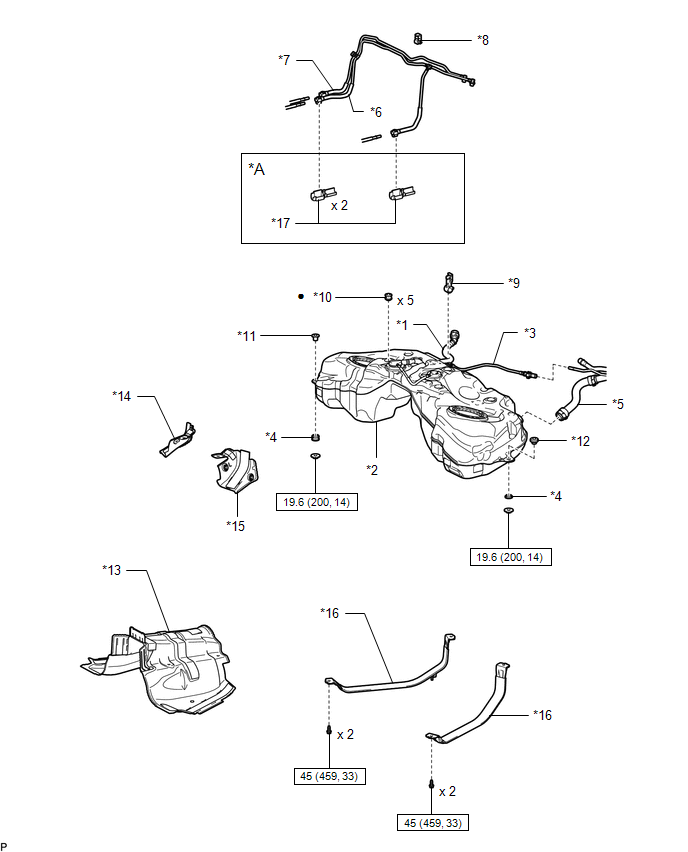

| *A | For Half Cover Type | - | - |
| *1 | FUEL CUT OFF VALVE TUBE | *2 | FUEL TANK ASSEMBLY |
| *3 | FUEL TANK BREATHER TUBE | *4 | FUEL TANK CUSHION |
| *5 | FUEL TANK TO FILLER PIPE HOSE | *6 | FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *7 | FUEL TANK RETURN TUBE | *8 | NO. 5 FUEL TUBE CLAMP |
| *9 | NO. 1 EVAPORATION VENT TUBE CLAMP | *10 | NO. 6 FUEL TANK CUSHION |
| *11 | FUEL TANK BRACKET | *12 | FUEL TANK CUSHION SET |
| *13 | NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY | *14 | NO. 2 FUEL TANK PROTECTOR |
| *15 | NO. 3 FUEL TANK PROTECTOR | *16 | NO. 1 FUEL TANK BAND |
| *17 | PROTECTOR | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
