Installation [10/2015 - ]: Procedure

  1. INSTALL KICK DOWN SWITCH ASSEMBLY
    1. Install the kick down switch assembly to the vehicle body with the 2 bolts and nut.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Connect the kick down switch assembly connector.
    3. Engage the clamp to install the wire harness.
  2. INSTALL NO. 3 DASH PANEL INSULATOR PAD
    1. Engage the 2 clips to install the No. 3 dash panel insulator pad to the vehicle body.
    2. Return the front floor carpet assembly to its original position, and engage the clamp, hook and each fastener.

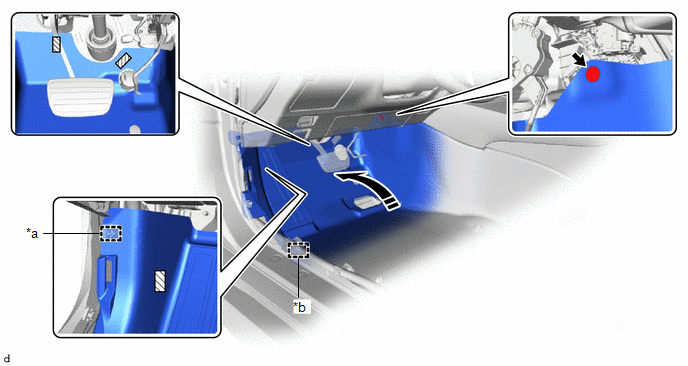

      GTY672050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp *b Hook
      Fastener Install in this Direction
    3. Install the clip.
  3. INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY

    Refer to INSTALLATION [10/2015 - ]

  4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26

  5. INSTALL FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 31

  6. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 33
