Components [10/2015 - ]: Illustration

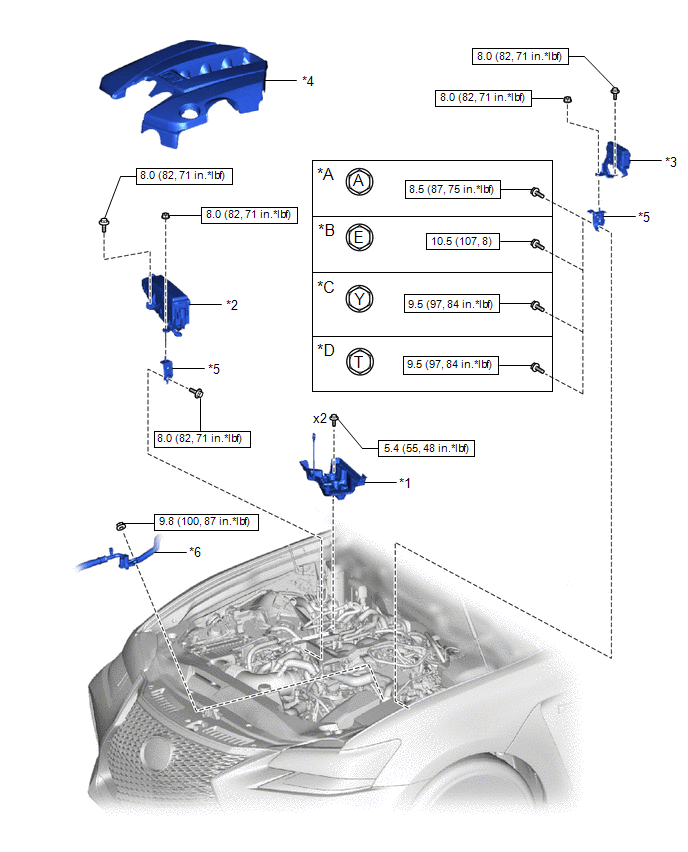

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 of 2)
GTY619385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Bolt Type A *B for Bolt Type B
*C for Bolt Type C *D for Bolt Type D
*1 BATTERY TRAY *2 NO. 1 ENGINE ROOM RELAY BLOCK
*3 NO. 3 ENGINE ROOM RELAY BLOCK *4 V-BANK COVER SUB-ASSEMBLY
*5 WIRE HARNESS CLAMP BRACKET *6 SUCTION PIPE SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -

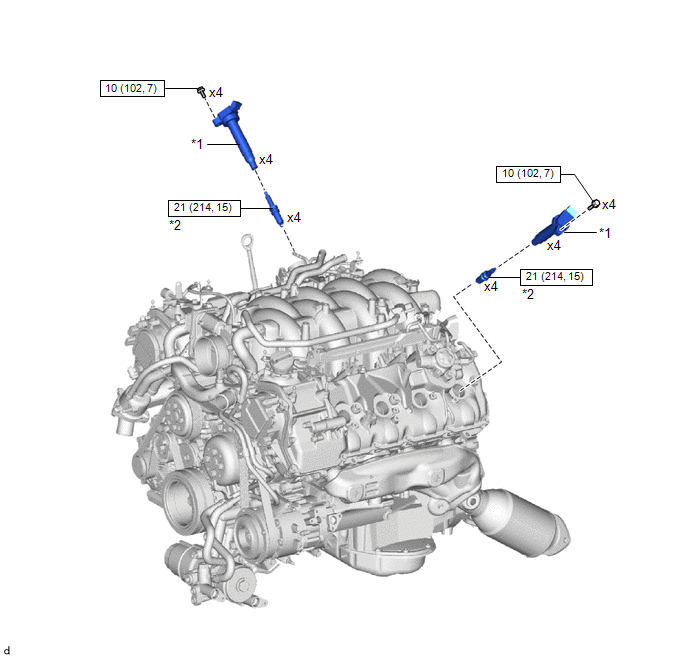

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 of 2)
GTY655643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION COIL ASSEMBLY *2 SPARK PLUG
N*m (kgf*cm, ft.*lbf): Specified torque - -
