Installation [10/2015 - ]: Procedure

INSTALL GENERATOR ASSEMBLY

Using an E8 "TORX" socket wrench, temporarily install the generator assembly with the 2 stud bolts.
Tighten the 2 stud bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Install the bolt B and 2 nuts.

Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

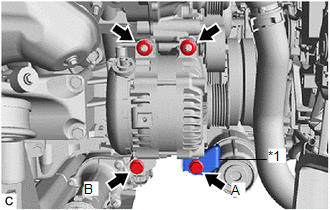

GTY615932

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Engine Wire Bracket

Install the engine wire bracket with the bolt A.
Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)
Install the oil cooler tube with the bolt.
Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
Connect the generator assembly connector.
Connect the engine wire to the terminal B with the nut.
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
Install the terminal cap.
Connect the engine wire with the bolt.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
Engage the clamp.

INSTALL FAN AND GENERATOR V BELT
Refer to INSTALLATION [10/2015 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [10/2015 - 09/2016] , or Refer to INITIALIZATION [09/2016 - 09/2017] , or Refer to INITIALIZATION [09/2017 - ]
