Components [10/2015 - ]: Illustration

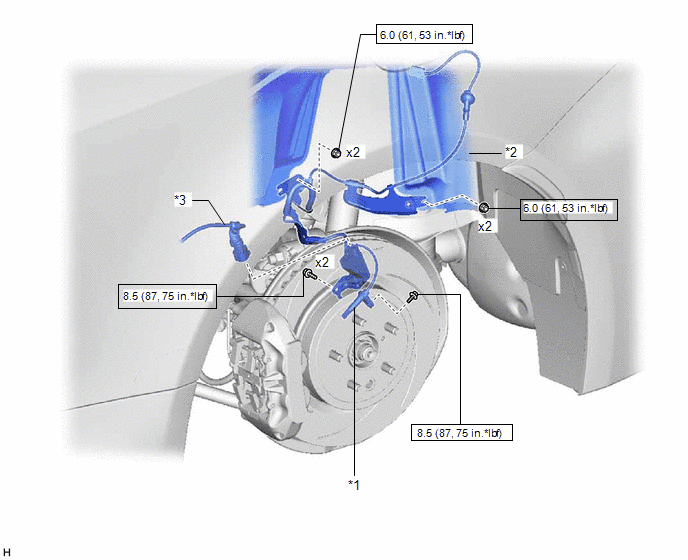

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications
GTY683466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR SPEED SENSOR *2 REAR WHEEL HOUSE LINER
*3 PAD WEAR INDICATOR WIRE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
