Removal [10/2015 - 09/2017]: Procedure

  1. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [10/2015 - 09/2017]

  2. REMOVE DRIVING SUPPORT ECU ASSEMBLY

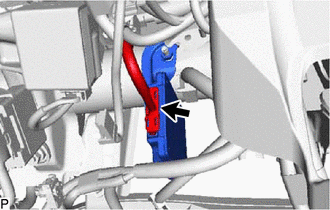

    1. Disconnect the connector.
      GTY640281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

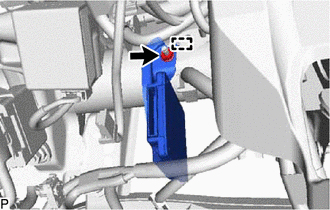

    2. Remove the nut.
      GTY640282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guide to remove the driving support ECU assembly.
