Components [09/2014 - ]: Illustration

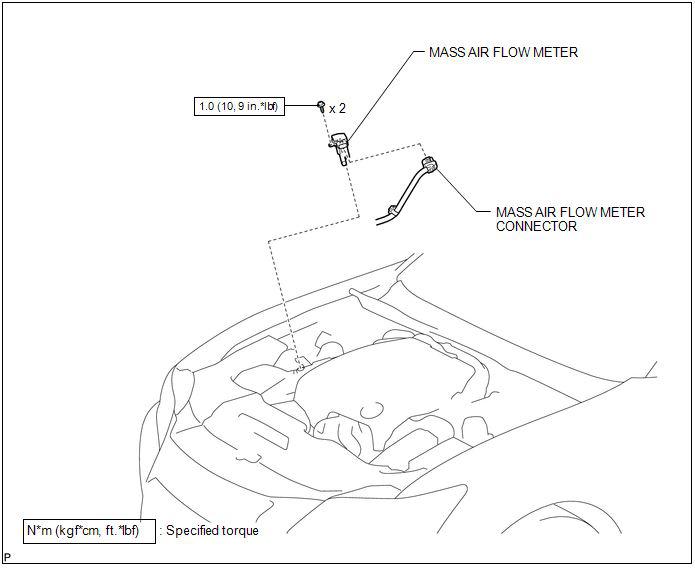

Fig 1: Mass Air Flow Meter Replacement Components With Torque Specifications
GTY522425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
