Components [10/2015 - ]: Illustration

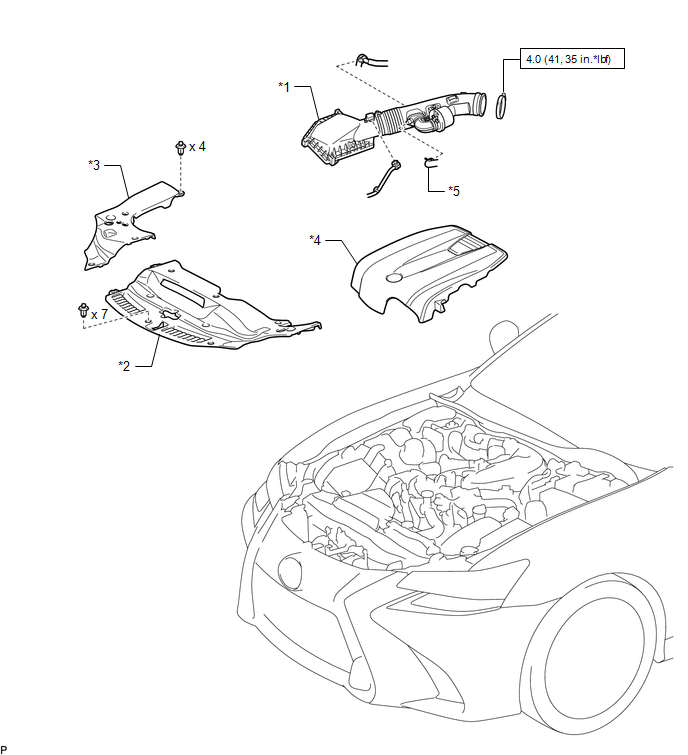

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY671676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR CLEANER CAP AND HOSE *2 COOL AIR INTAKE DUCT SEAL
*3 ENGINE ROOM SIDE COVER *4 V-BANK COVER SUB-ASSEMBLY
*5 NO. 2 VENTILATION HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

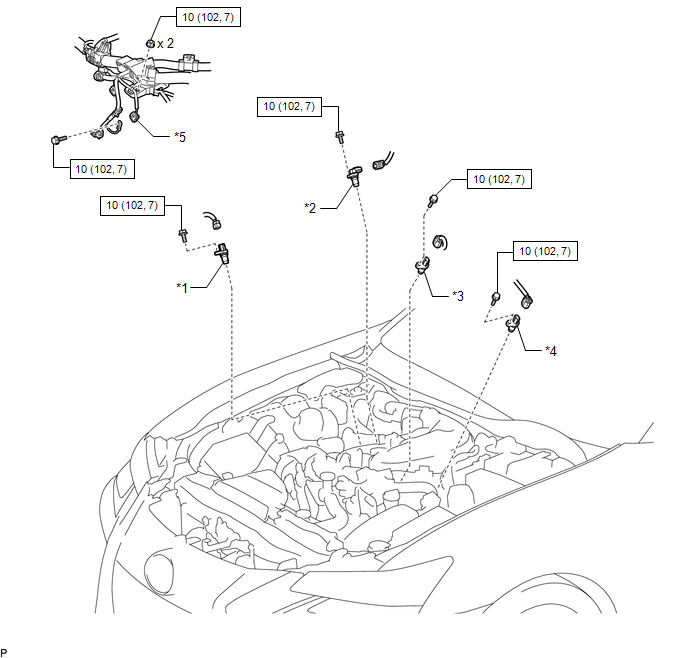

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY640040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 VVT SENSOR (for Exhaust Side of Bank 1) *2 VVT SENSOR (for Intake Side of Bank 1)
*3 VVT SENSOR (for Intake Side of Bank 2) *4 VVT SENSOR (for Exhaust Side of Bank 2)
*5 ENGINE WIRE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
