Installation [07/2015 - ]: Procedure

1. Install 5 new No. 1 fuel tank cushions shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 1 fuel tube clamp.

1. Install the No. 2 fuel tube clamp.

1. Install the fuel tank vent hose sub-assembly to the No. 2 fuel tube clamp.

1. Install the fuel tank breather tube sub-assembly to the No. 2 fuel tube clamp.

1. Install the fuel tank main tube sub-assembly to the No. 1 fuel tube clamp.

1. Support the fuel tank sub-assembly using an engine lifter.
2. Raise the engine lifter, then install the fuel tank sub-assembly to the vehicle.
   NOTE:

   • Do not drop the fuel tank sub-assembly.
   • When installing the fuel tank sub-assembly, tilt it slightly to prevent it from interfering with the suspension arm or other surrounding parts.
3. Tighten the 4 bolts of the 2 fuel tank bands.

   Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)

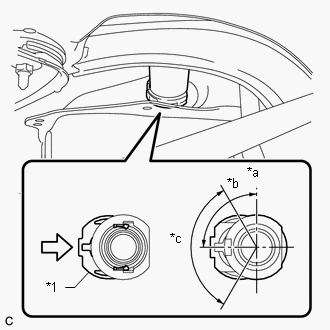

1. Push in the fuel tank to filler pipe hose connector to the fuel tank sub-assembly and push in the retainer so that the claws engage.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Retainer
   *a	UP
   *b	90°
   *c	120° (Retainer Area)
   	Push

   NOTE:

   • Check that there are no scratches or foreign matter around the connected parts of the fuel tank to filler pipe hose connector and fuel tank sub-assembly before performing this work.
   • After connecting the fuel tank to filler pipe hose, check that the fuel tank to filler pipe hose is securely connected by pulling on the fuel tank to filler pipe hose connector.

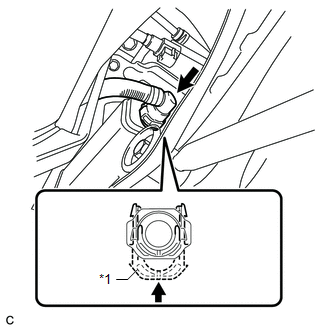

1. Push in the fuel tank vent hose connector to the charcoal canister and push up the retainer so that the claws engage.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Retainer
   	Push

   NOTE:

   • Check that there are no scratches or foreign matter around the connected part of the fuel tank vent hose connector and charcoal canister before performing this work.
   • After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the fuel tank vent hose connector and the charcoal canister.

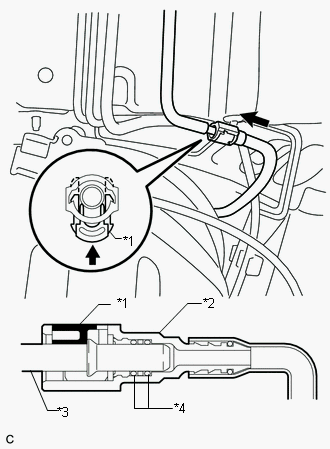

1. Push in the fuel tube connector to the fuel pipe and push up the retainer so that the claws engage.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Retainer
   *2	Fuel Tube Connector
   *3	Fuel Pipe
   *4	O-ring
   	Push

   NOTE:

   • Check that there are no scratches or foreign matter around the connected part of the fuel tube connector and fuel pipe before starting this step.
   • After connecting the fuel tube connector, check that the fuel tube connector is securely connected by pulling on the fuel tube connector.

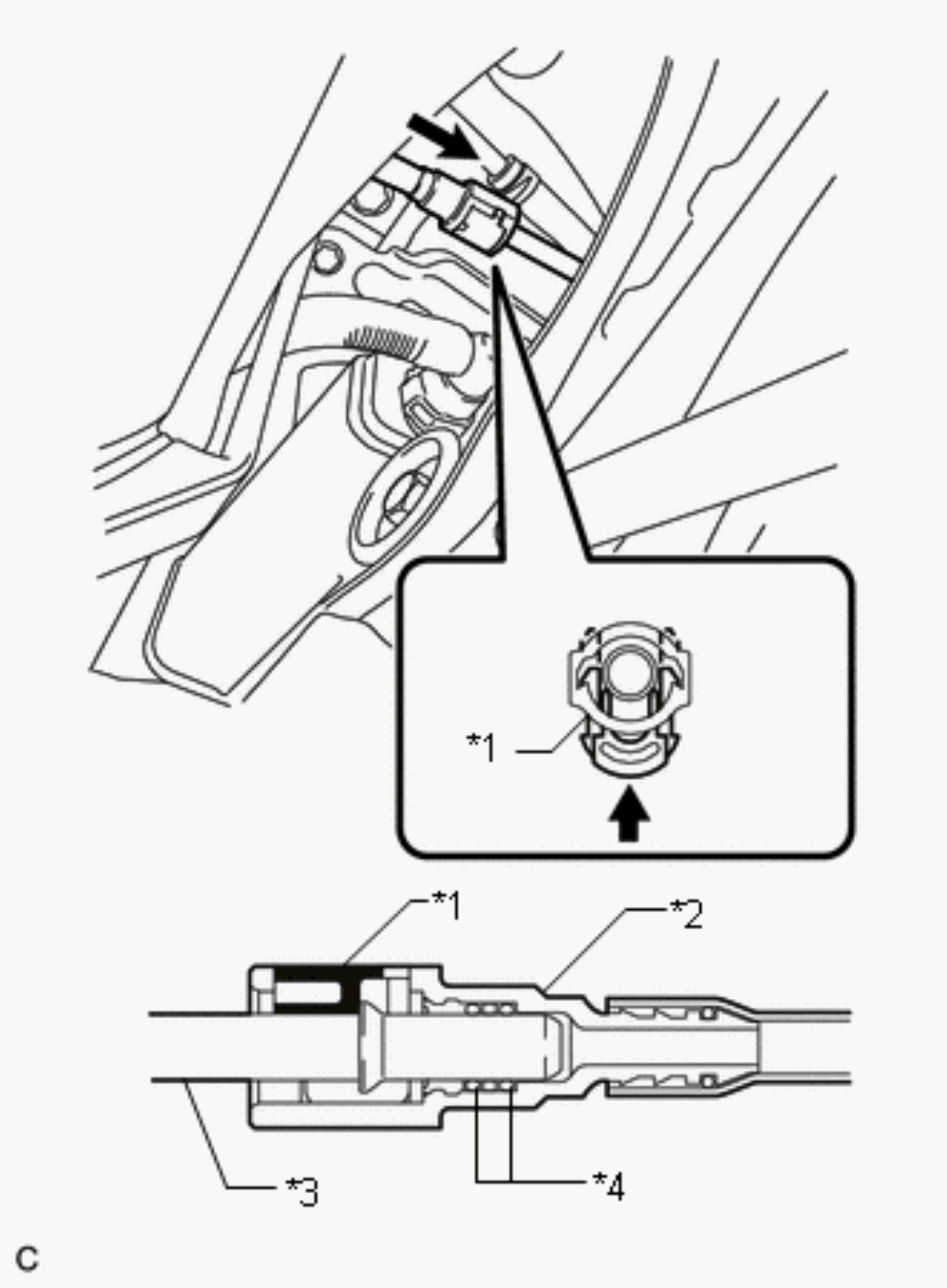

1. Push in the fuel tube connector to the fuel pipe and push up the retainer so that the claws engage.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Retainer
   *2	Fuel Tube Connector
   *3	Fuel Pipe
   *4	O-ring
   	Push

   NOTE:

   • Check that there are no scratches or foreign matter around the connected part of the fuel tube connector and fuel pipe before starting this step.
   • After connecting the fuel tube connector, check that the fuel tube connector is securely connected by pulling on the fuel tube connector.

1. Install the No. 1 fuel tank protector with the 3 clips.

1. Install the 2 rear No. 1 stabilizer bar brackets with the 4 nuts.

   Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

1. Install the No. 3 parking brake cable assembly with the nut.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

1. Install the No. 2 parking brake cable assembly with the nut.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

Refer to PROCEDURE - Step 11

Refer to PROCEDURE - Step 10

(Refer to INSTALLATION [07/2015 - ] )

(Refer to INSTALLATION [07/2015 - ] )
