Installation [07/2015 - ]: Procedure

  1. INSTALL CRUISE CONTROL MAIN SWITCH
    1. Connect the connector.

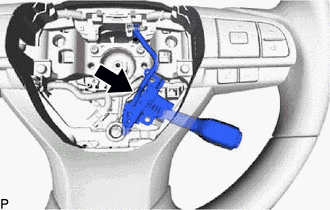

    2. Insert the cruise control main switch as shown in the illustration.
      GTY636410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the cruise control main switch with the 2 screws.

      Torque: 2.4 N*m (24 kgf*cm, 21 in.*lbf)

  2. INSTALL STEERING PAD

    (Refer to INSTALLATION [07/2015 - 08/2016] Refer to INSTALLATION [08/2016 - ] )
