Brake Control System - Service Information
>>
Rear Speed Sensor
>>
Components [08/2014 - ]
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components [08/2014 - ]: Illustration

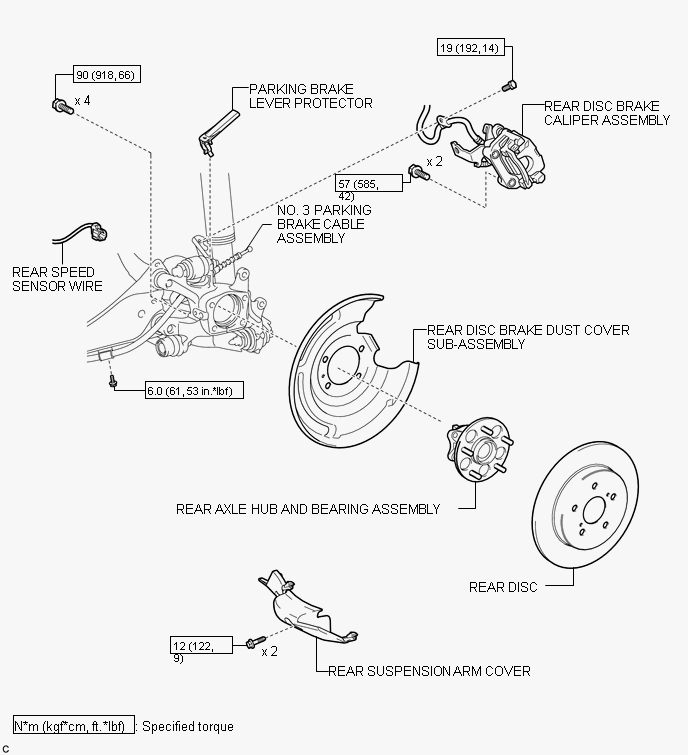

Fig 1: Rear Speed Sensor Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Rear Speed Sensor Replacement Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
