Components [08/2014 - ]: Illustration

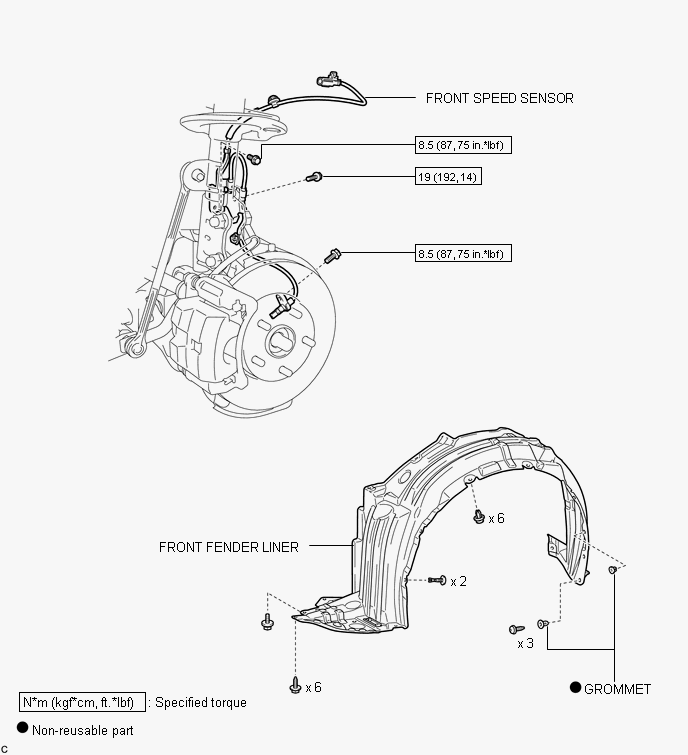

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications
GTY529979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
