Brake Control System - Service Information
>>
Brake Hold Switch
>>
Components [09/2015 - ]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components [09/2015 - ]

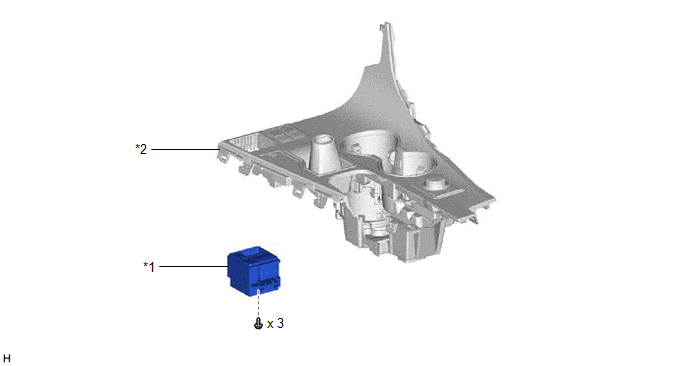

Fig 1: Brake Hold Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BRAKE HOLD SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)
*2
CONSOLE PANEL SUB-ASSEMBLY
