Components [09/2014 - ]

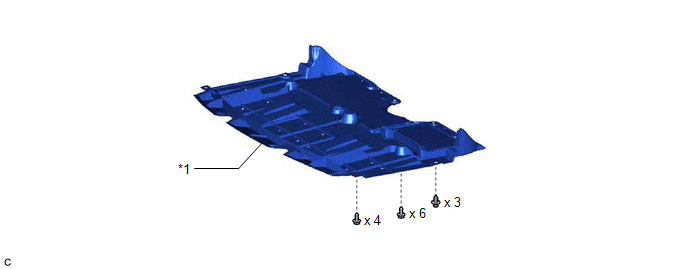

Fig 1: Front Speed Sensor (For AWD) Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-

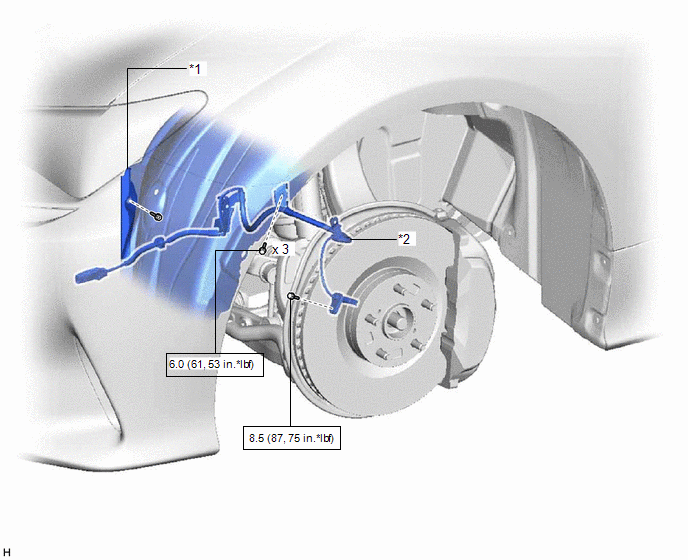

Fig 2: Front Speed Sensor (For AWD) Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FRONT FENDER LINER	*2	FRONT SPEED SENSOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
