Components [09/2015 - ]: Illustration

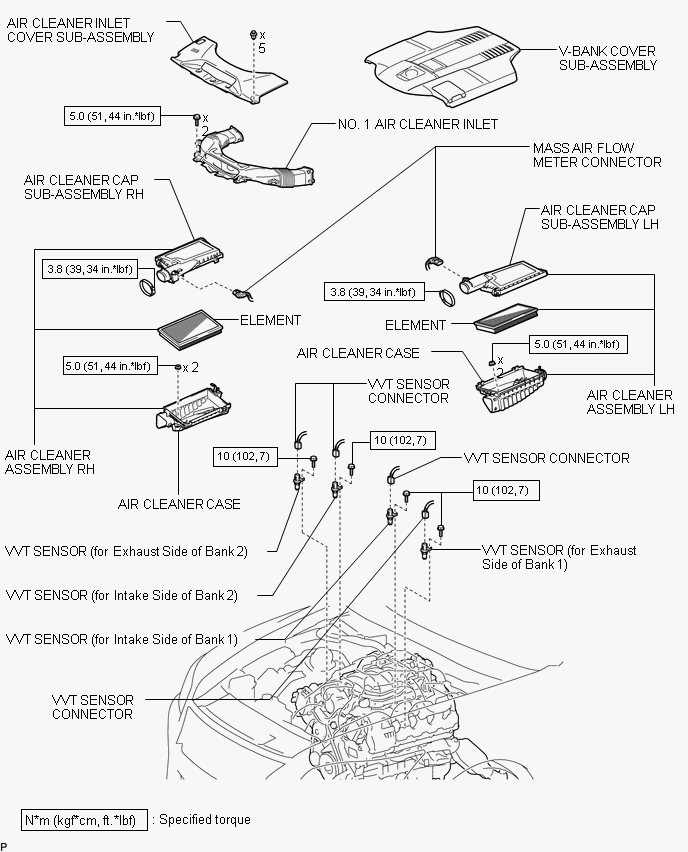

Fig 1: VVT Sensor Replacement Components W/ Torque Specifications
GTY683775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
