Removal [10/2015 - ]: Procedure
- REMOVE ENGINE ROOM SIDE COVER
Refer to PROCEDURE - Step 1
- REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 2
- REMOVE INTAKE MASS AIR FLOW METER SUB-ASSEMBLY
- Disconnect the connector from the intake mass air flow meter sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

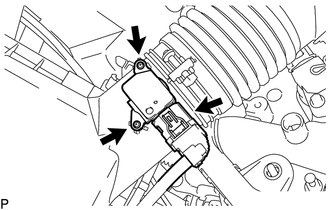

- Remove the 2 screws and intake mass air flow meter sub-assembly.
