Parts Location [09/2014 - ]: Illustration

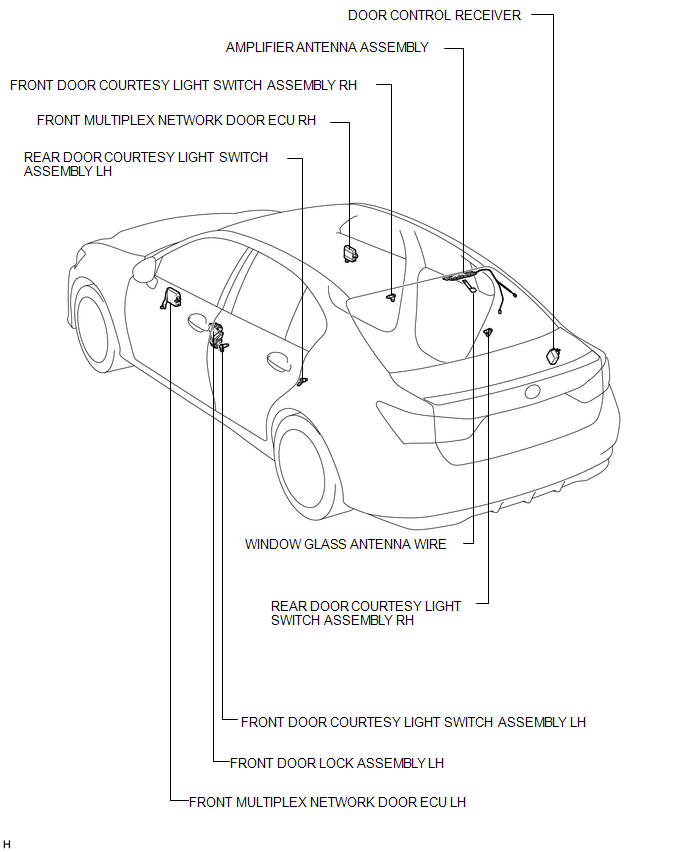

GTY527051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

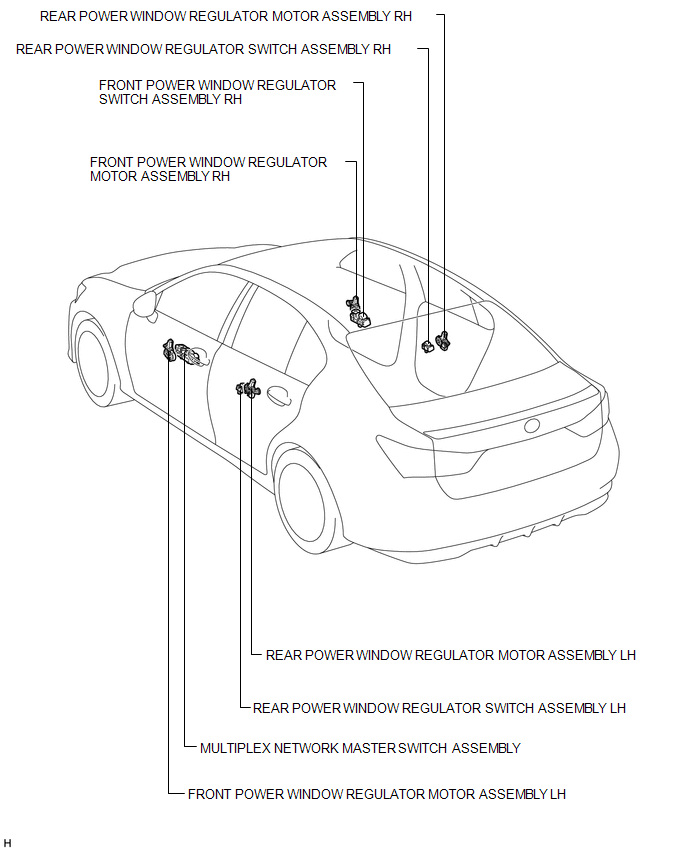

GTY395997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

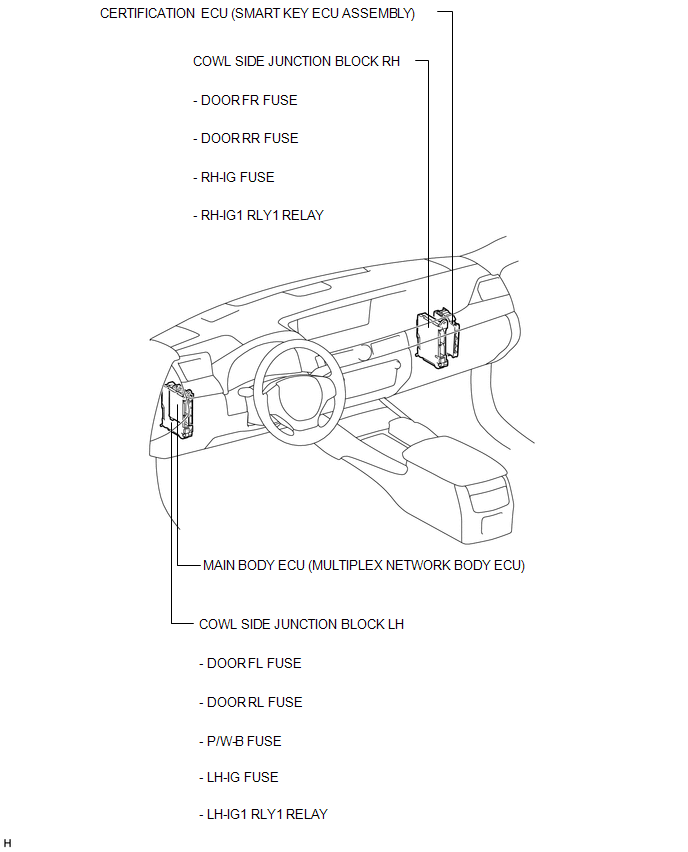

GTY404637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
