Power Window Control System (Diagnostics - Introduction)
>>
Power Window Control System
>>
Parts Location (07/2015 -)
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Parts Location (07/2015 -): Illustration

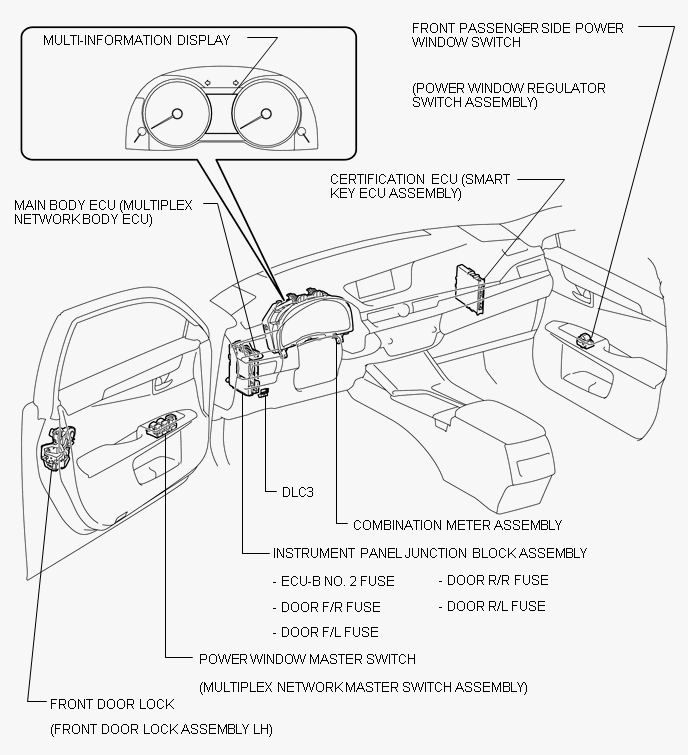

Fig 1: Power Window Control Parts Location (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

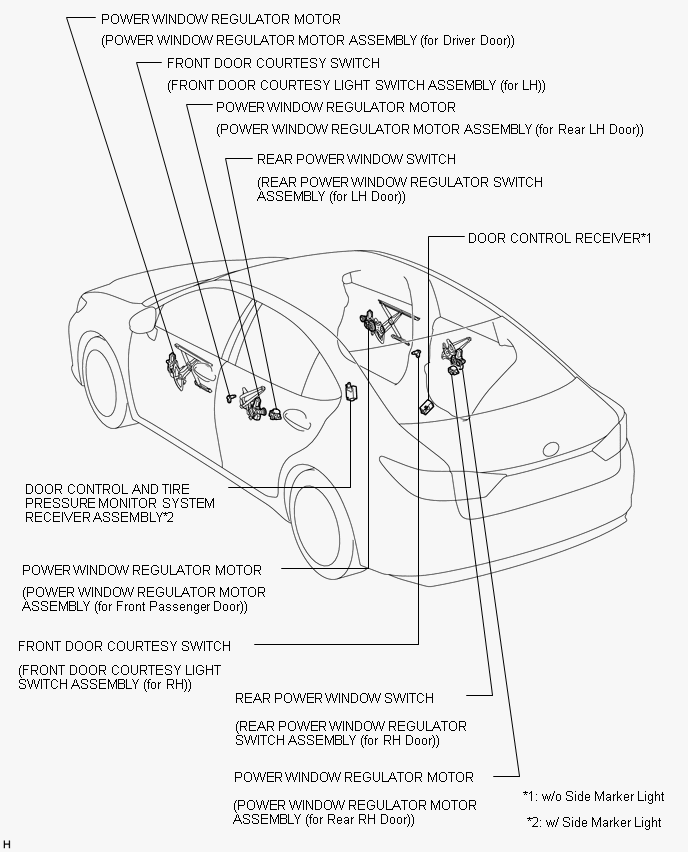

Fig 1: Power Window Control Parts Location (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
