Components [08/2014 - ]: Illustration

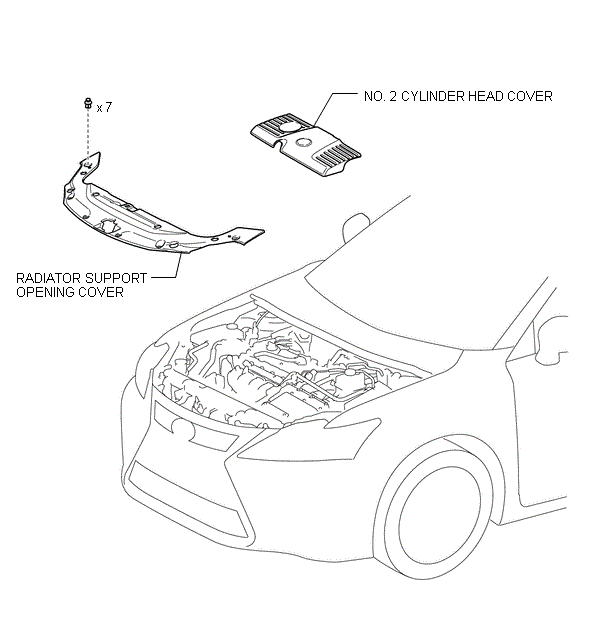

Fig 1: Throttle Body Replacement Components (1 Of 3)
G00562859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


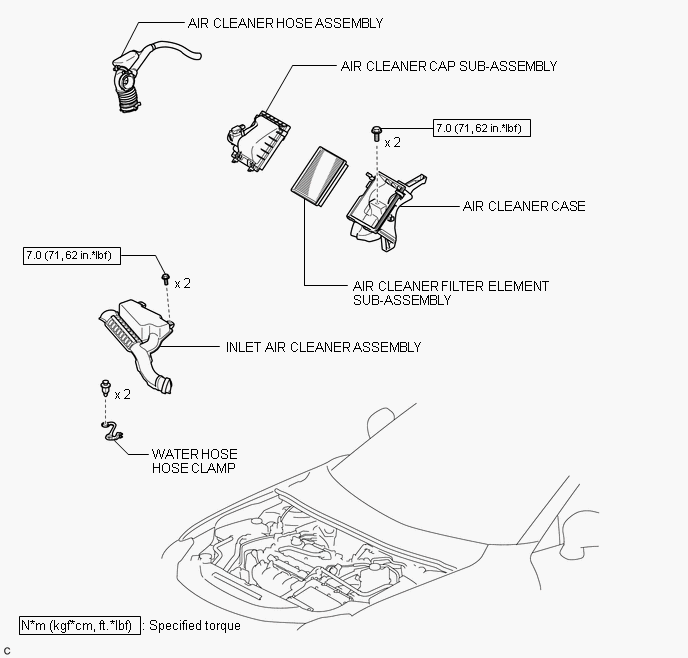

Fig 1: Throttle Body Replacement Components With Torque Specifications (2 Of 3)
GTY470677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

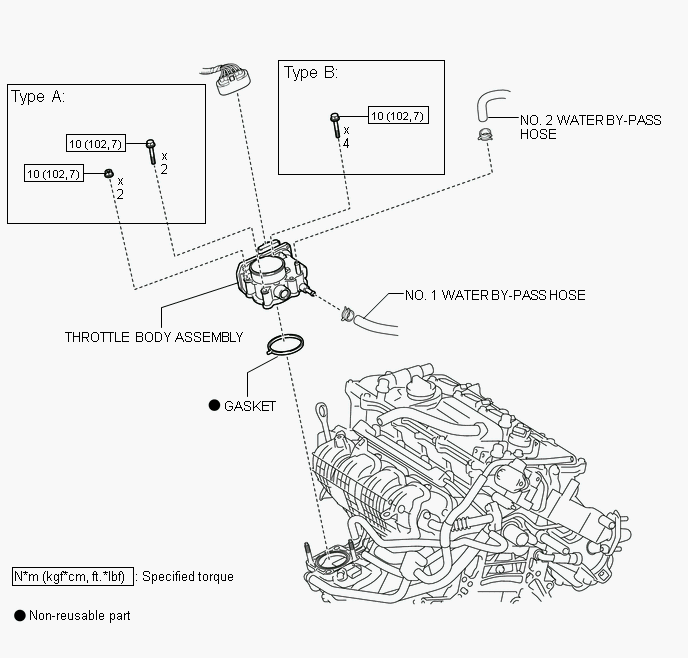

Fig 1: Throttle Body Replacement Components With Torque Specifications (3 Of 3)
GTY534017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
