CT 200h Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System - Inspection
>>
Ignition System
>>
Components Location [08/2014 - ]
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components Location [08/2014 - ]: Illustration

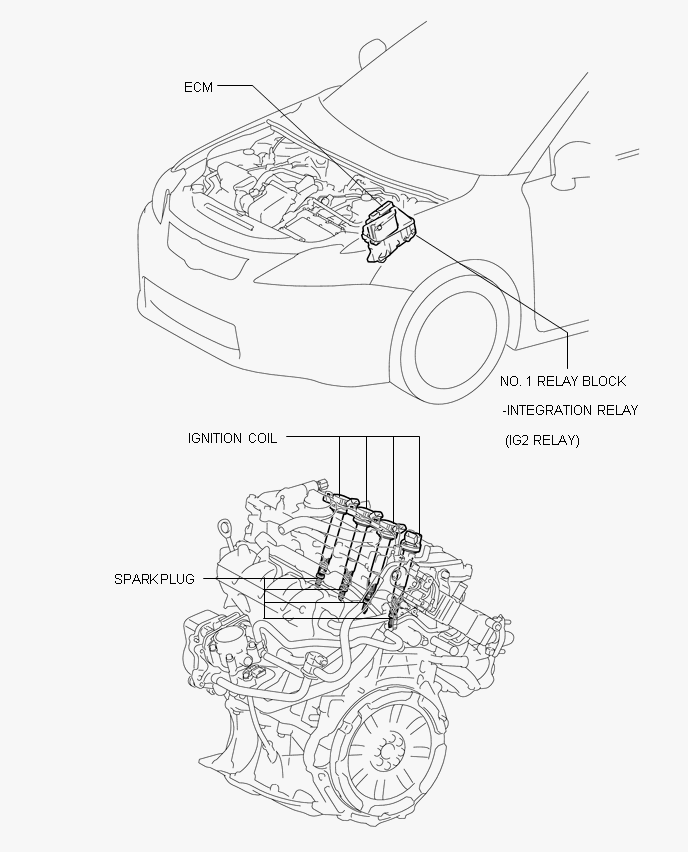

Fig 1: Identifying Ignition System Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

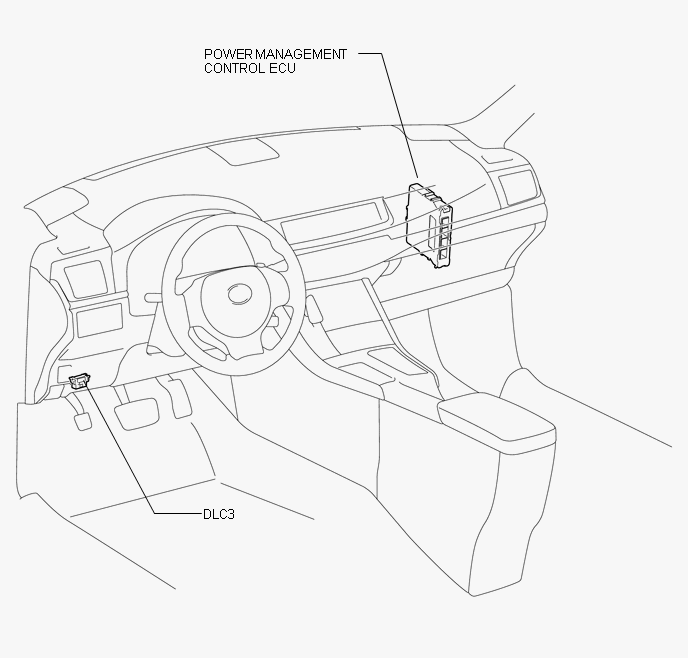

Fig 1: Identifying Ignition System Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
