Components [10/2016 - 09/2020]

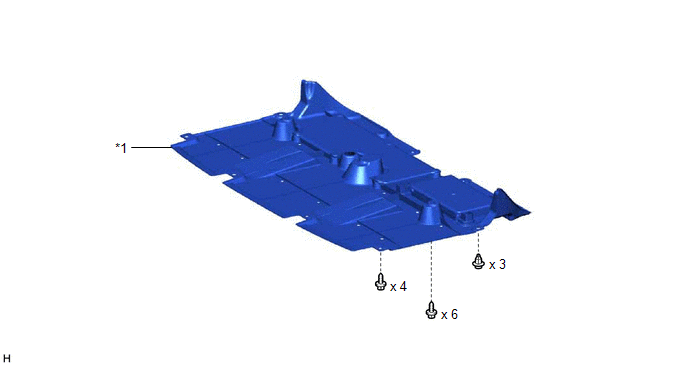

Fig 1: Front Speed Sensor (For AWD) Replacement Components [10/2016 - 09/2020] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE UNDER COVER

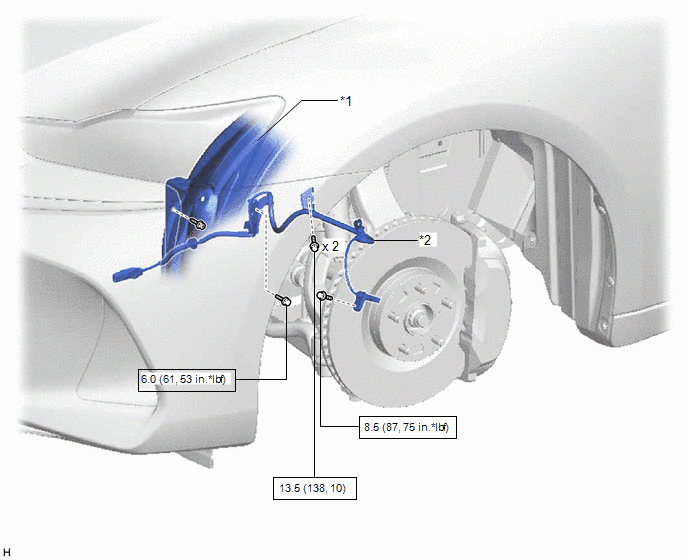

Fig 2: Front Speed Sensor (For AWD) Replacement Components With Torque Specifications [10/2016 - 09/2020] (2 Of 2)

*1	FRONT FENDER LINER	*2	FRONT SPEED SENSOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
