Components [08/2014 - ]: Illustration

Fig 1: Identifying Fuel Pump Replacement Components (1 Of 3)
GTY360953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

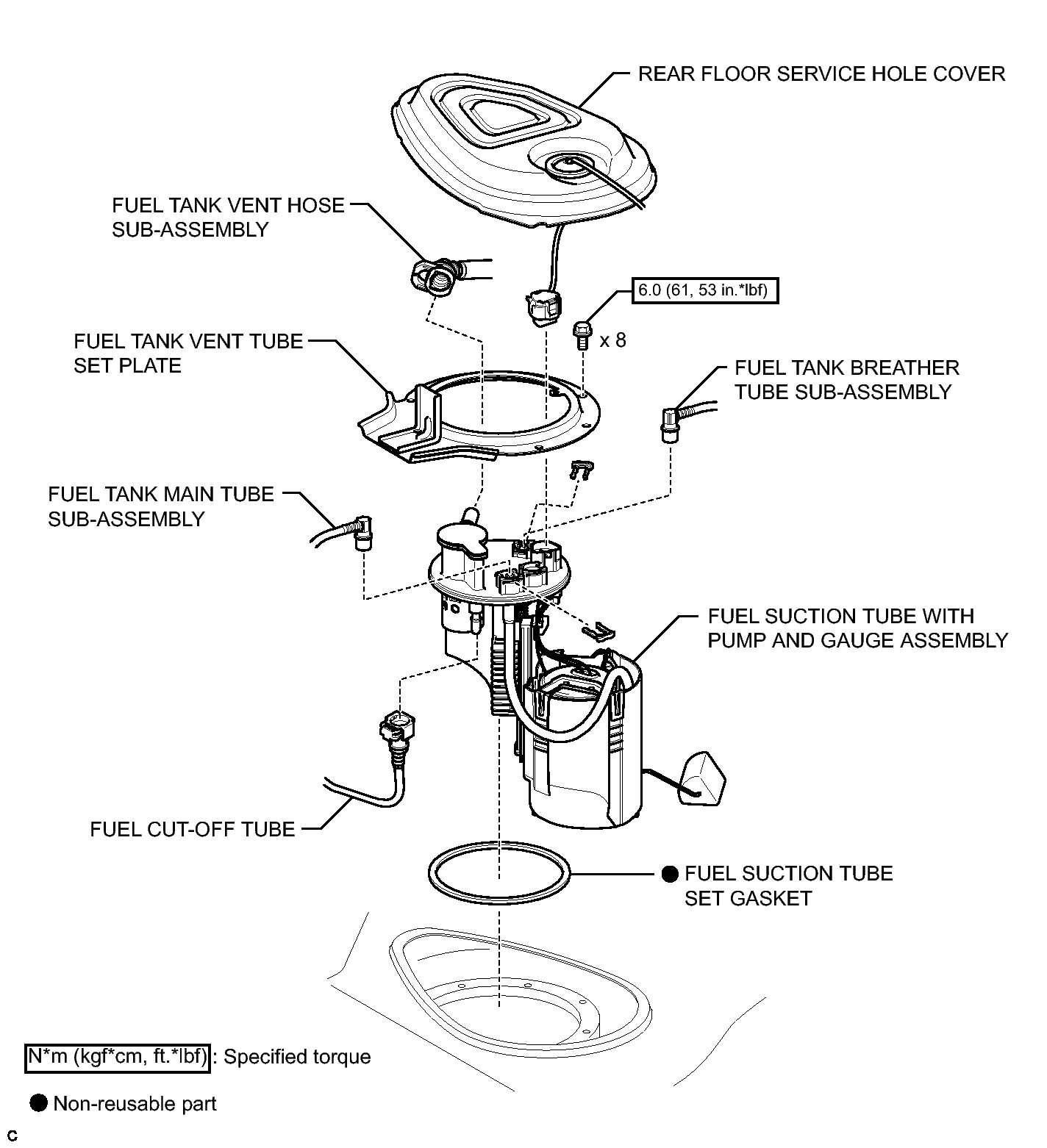

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (2 Of 3)
GTY419496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

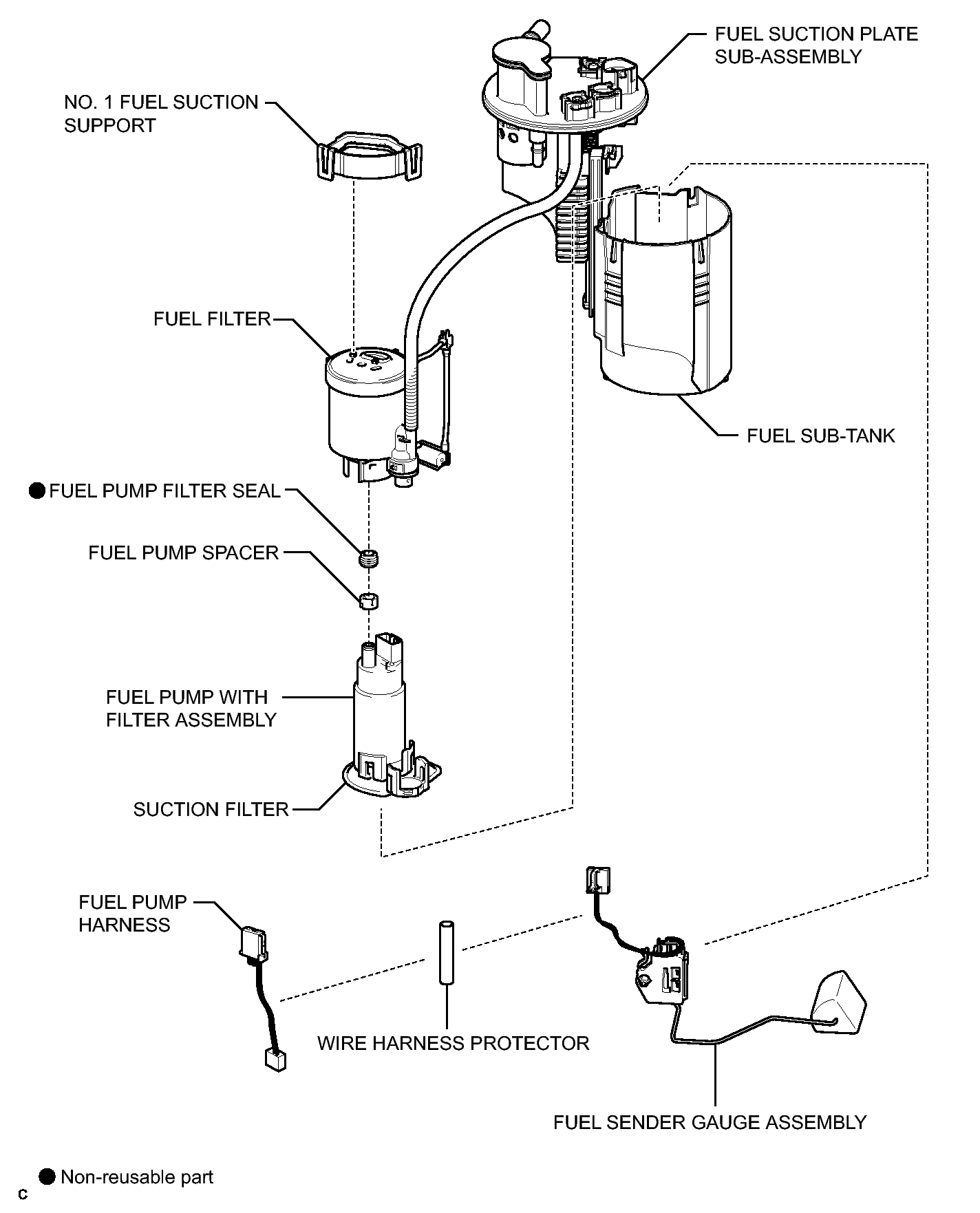

Fig 1: Identifying Fuel Pump Replacement Components (3 Of 3)
GTY411548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
