Components [08/2013 - ]: Illustration

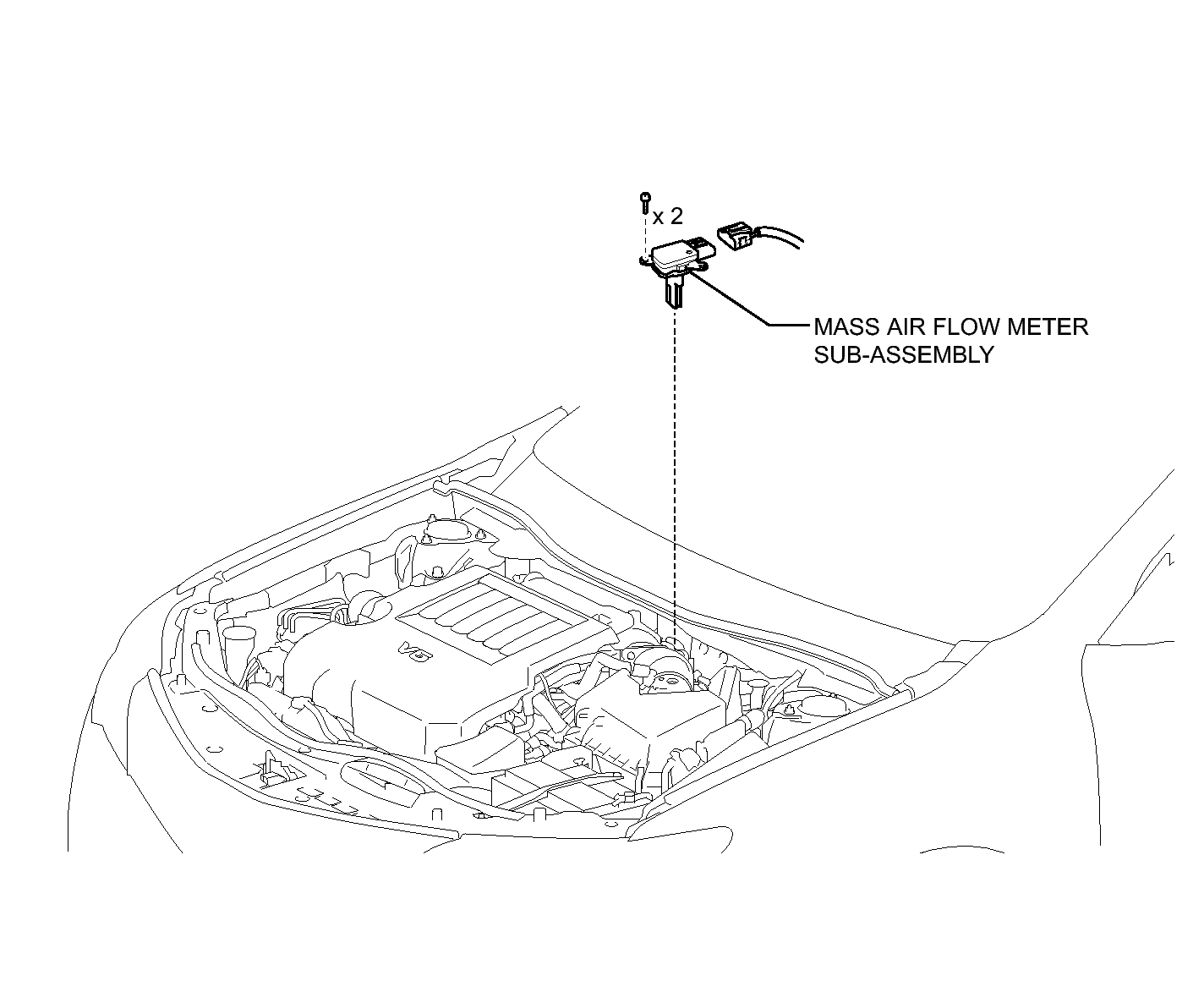

Fig 1: Identifying Mass Air Flow Meter Replacement Components
GTY408987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
