Power Seat (Front Passenger's Seat): Notes

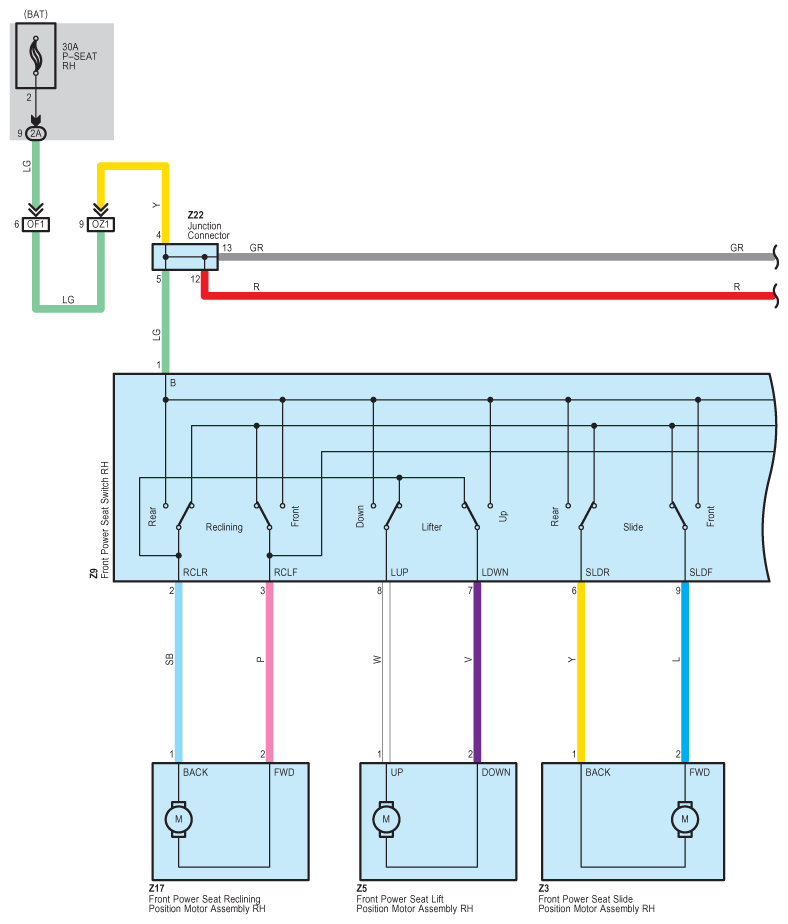

Fig 1: Power Seat (Front Passenger's Seat) System Wiring Diagram (1 Of 2)
G09126857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

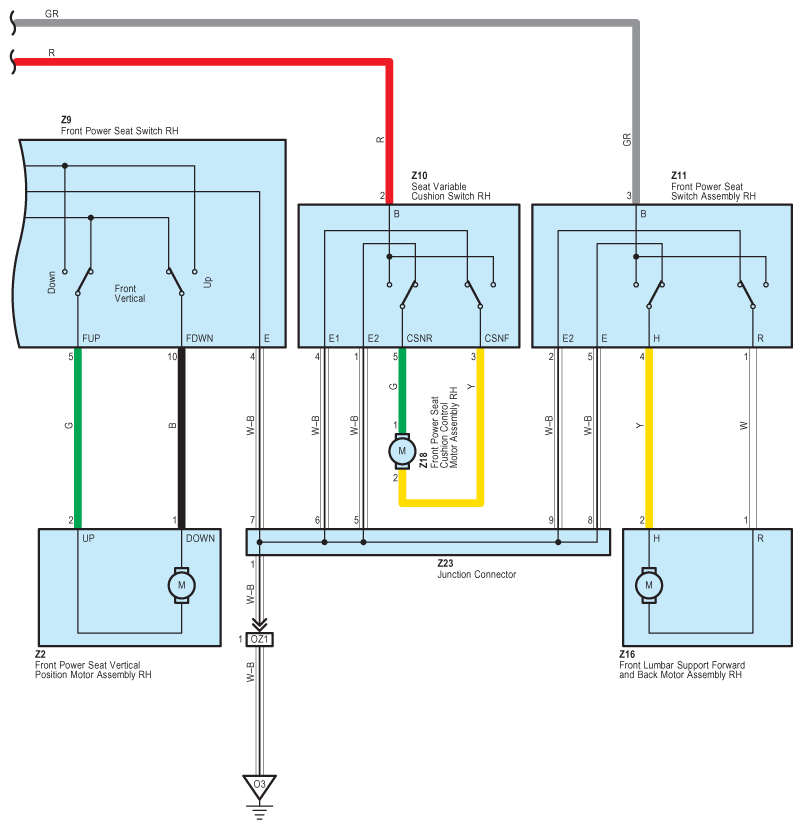

Fig 2: Power Seat (Front Passenger's Seat) System Wiring Diagram (2 Of 2)
G09126858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
