Multiplex Communication System (LIN): Notes

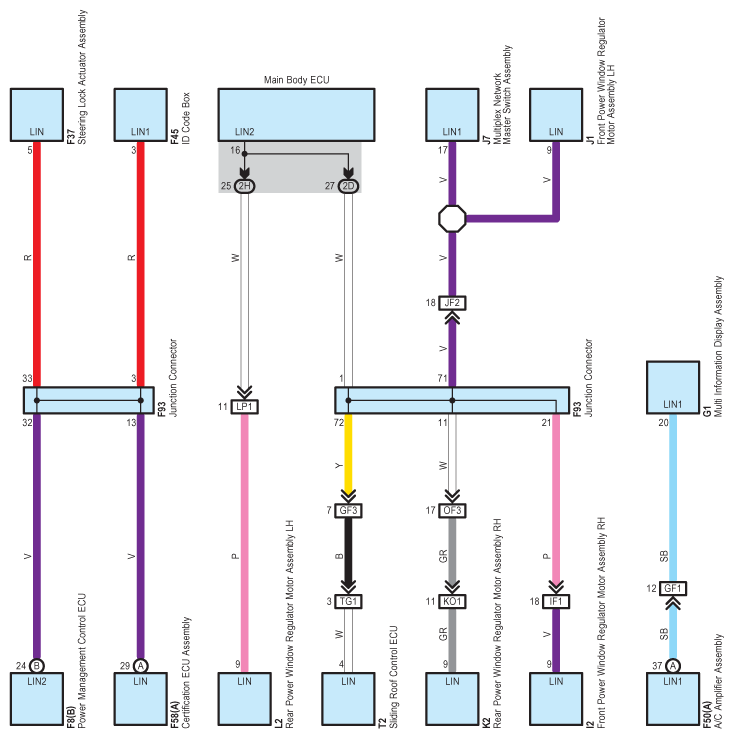

Fig 1: Multiplex Communication System (LIN) System Wiring Diagram
G09126667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
