Components
COMPONENTS

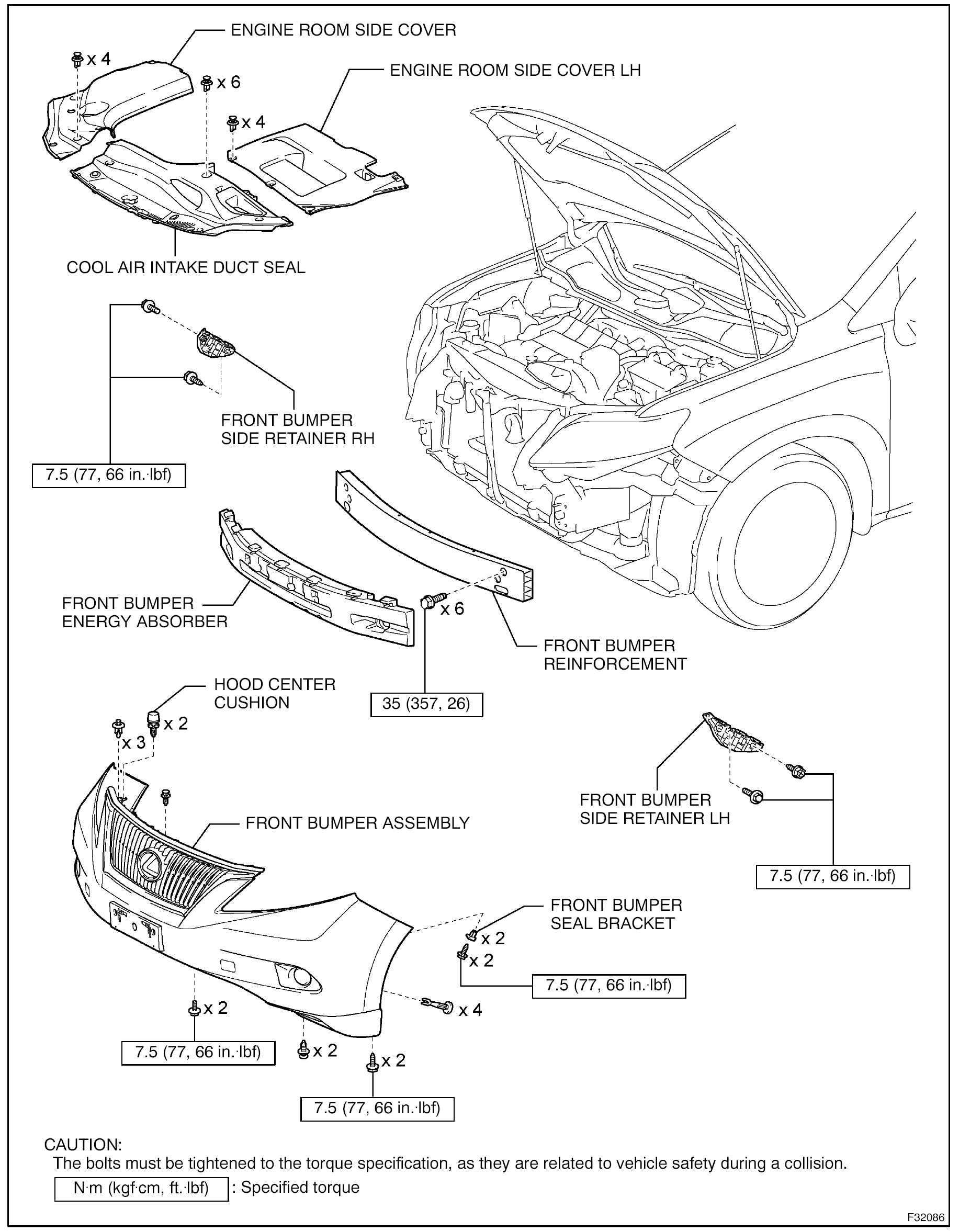

a.
FRONT
BUMPER

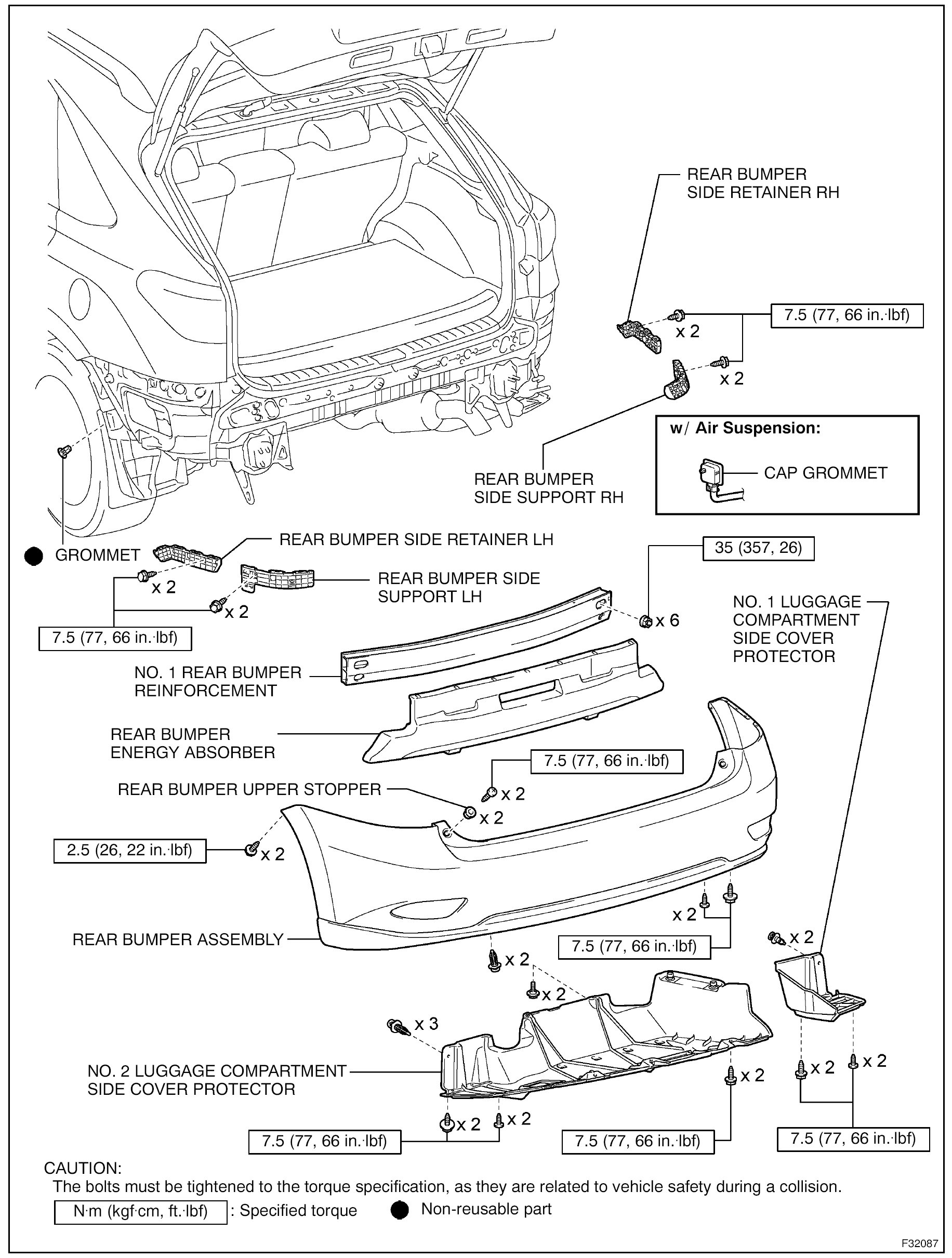

b.
REAR
BUMPER

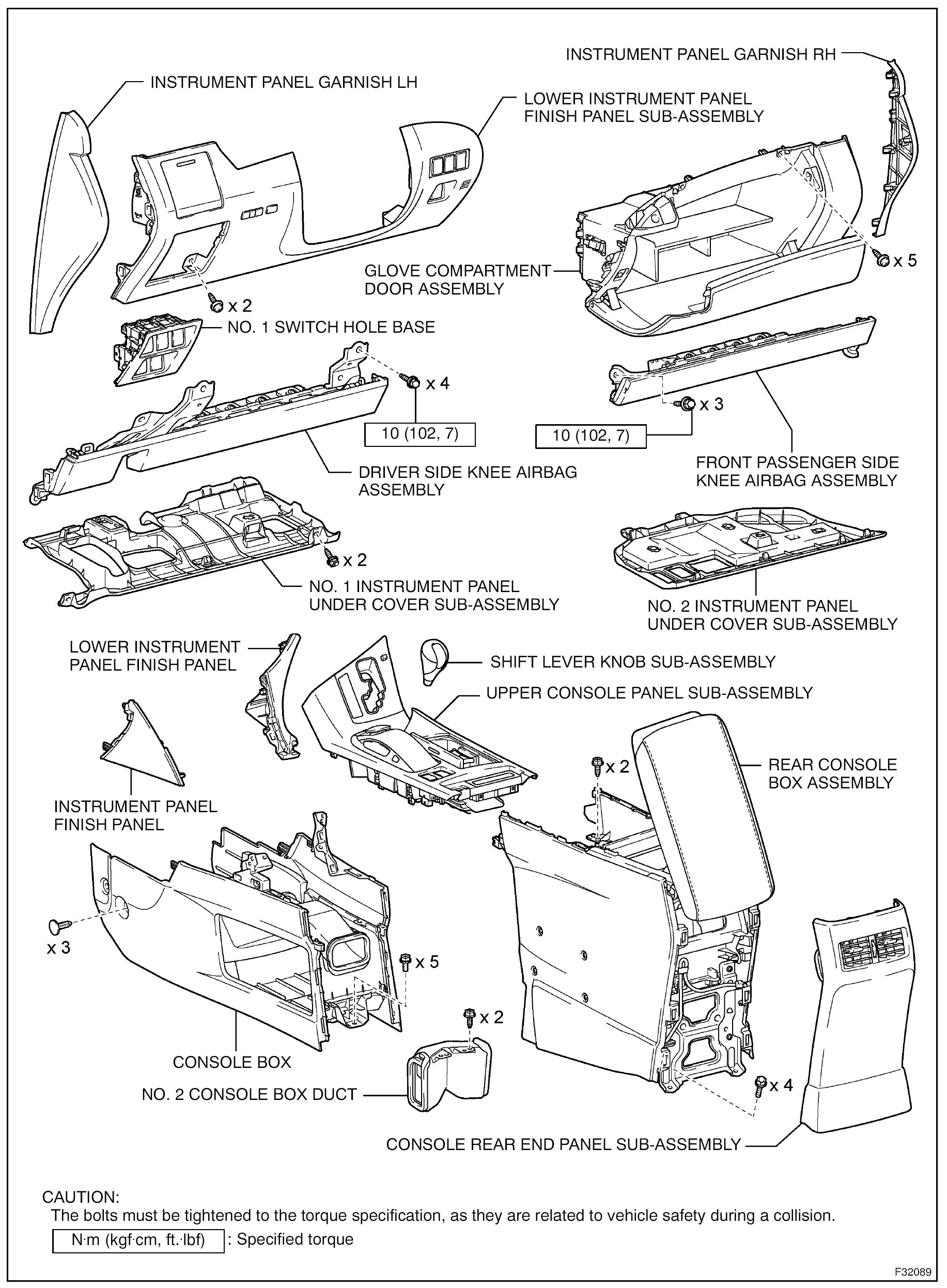

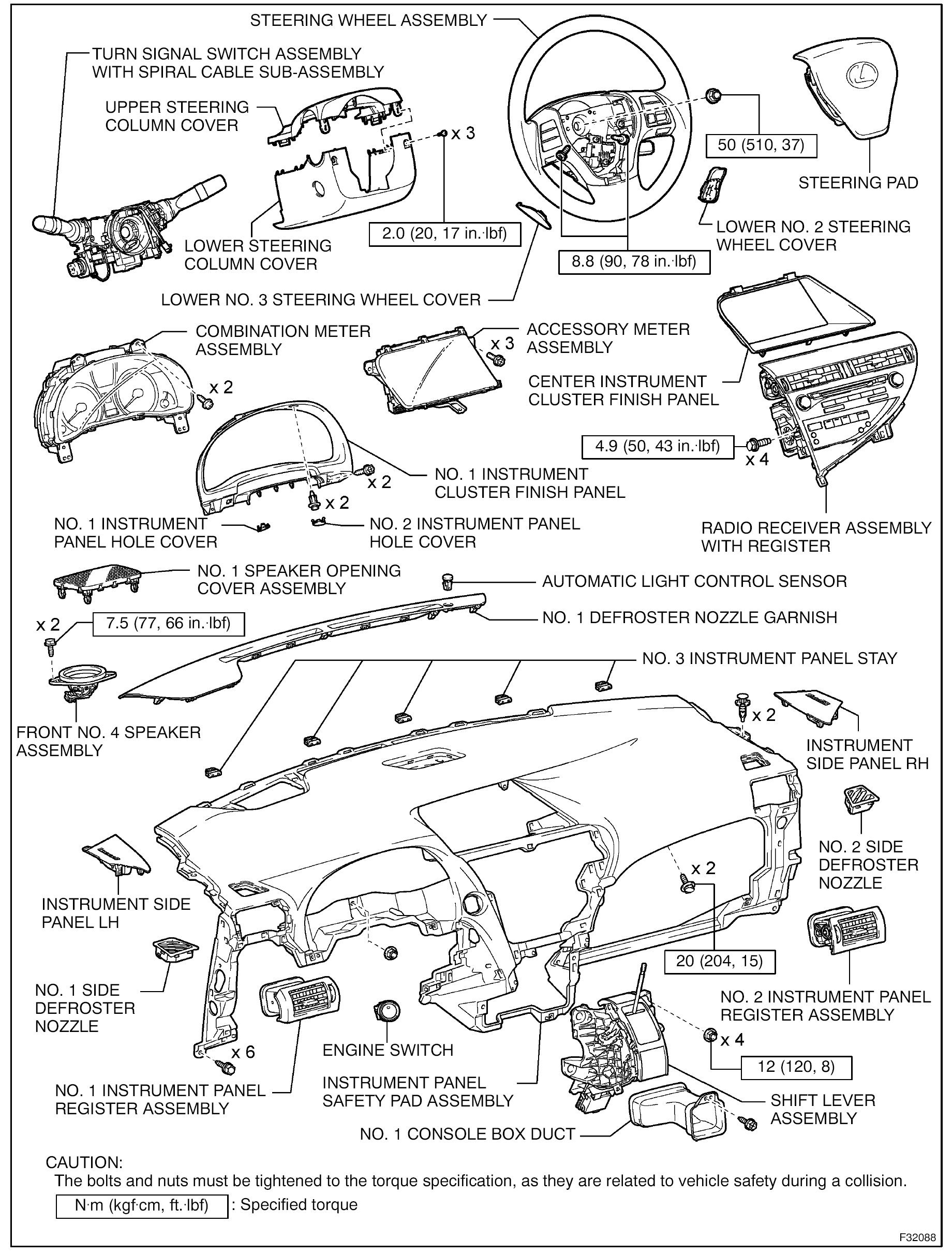

c.
INSTRUMENT PANEL

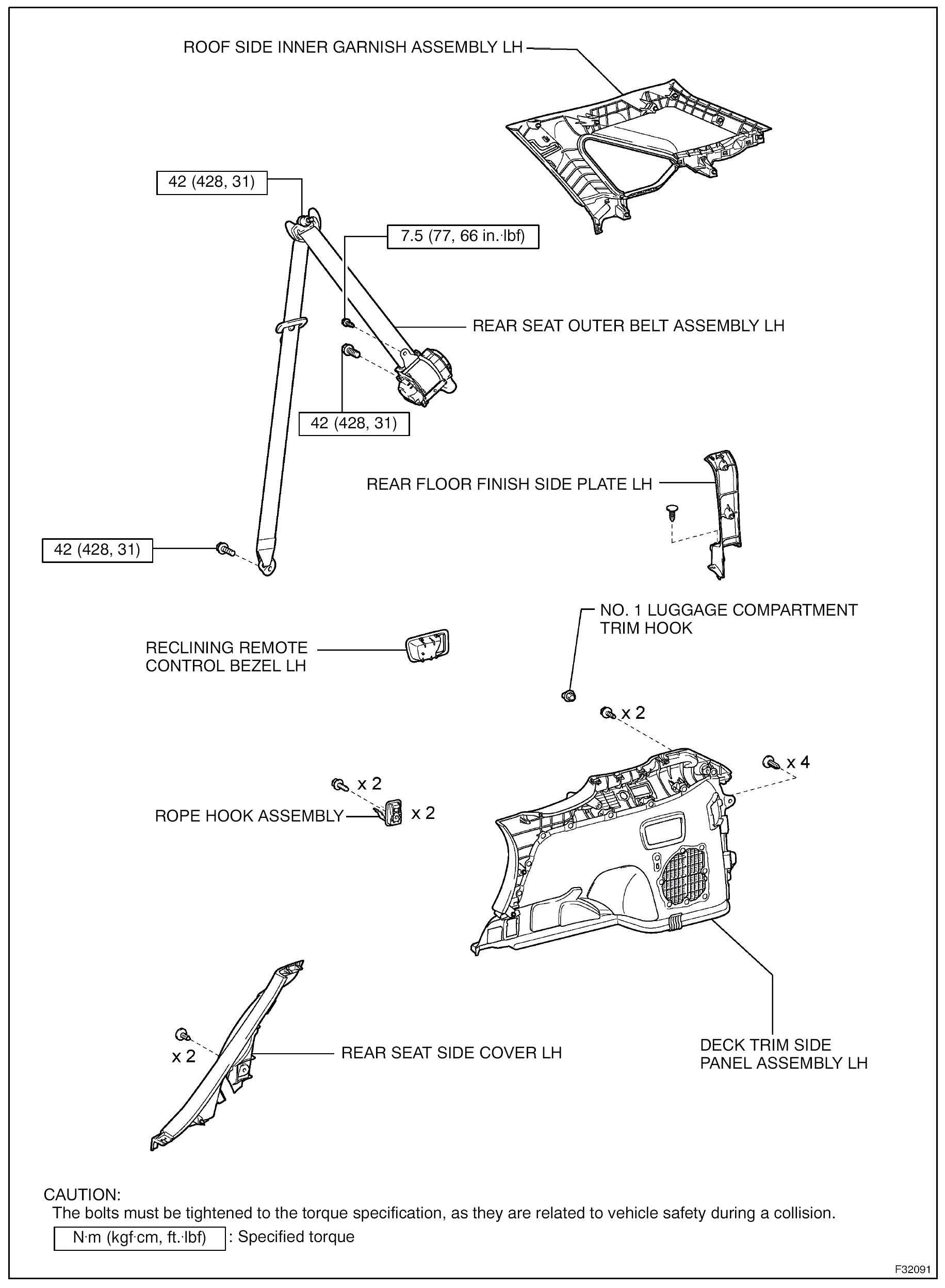

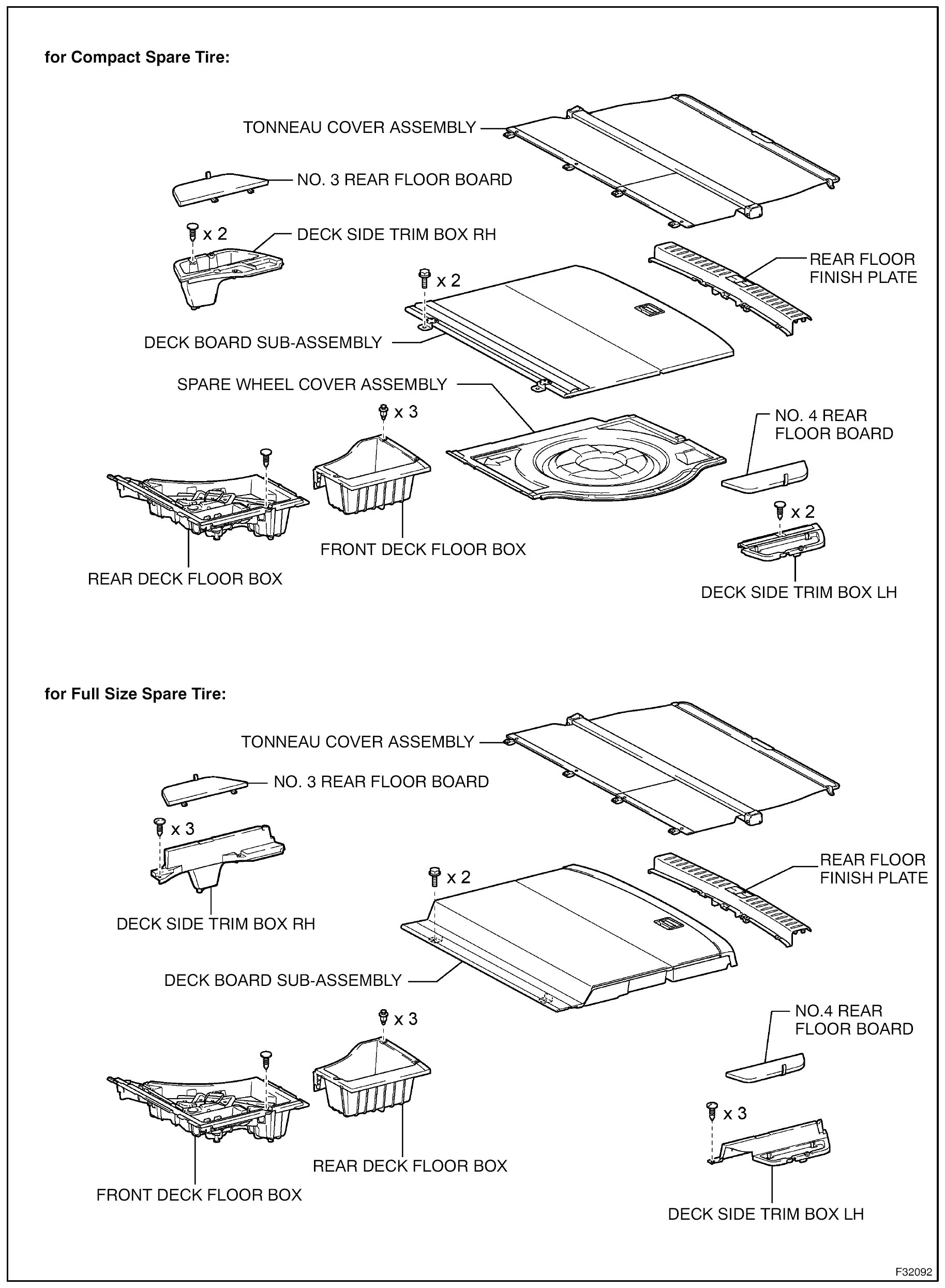

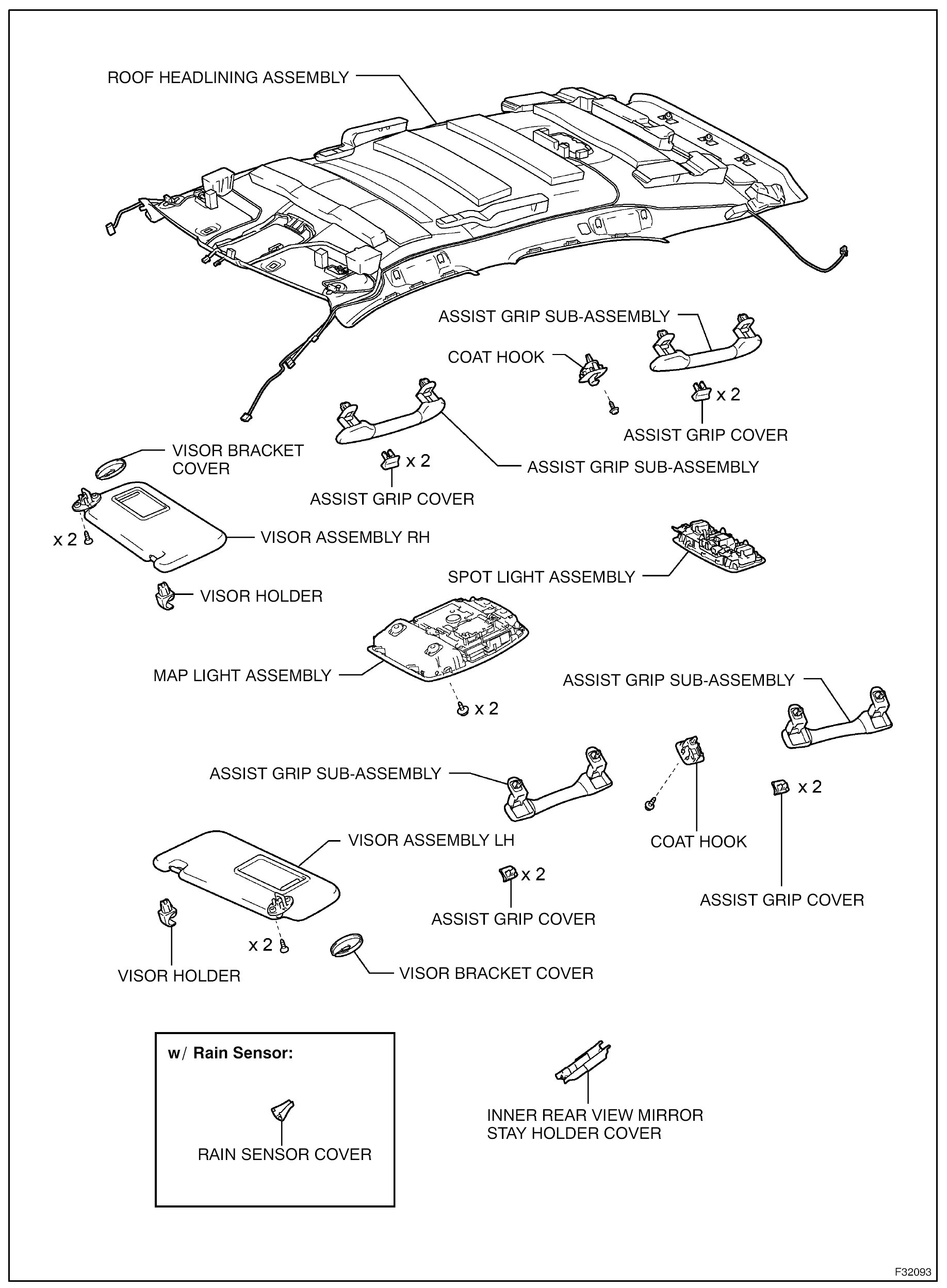

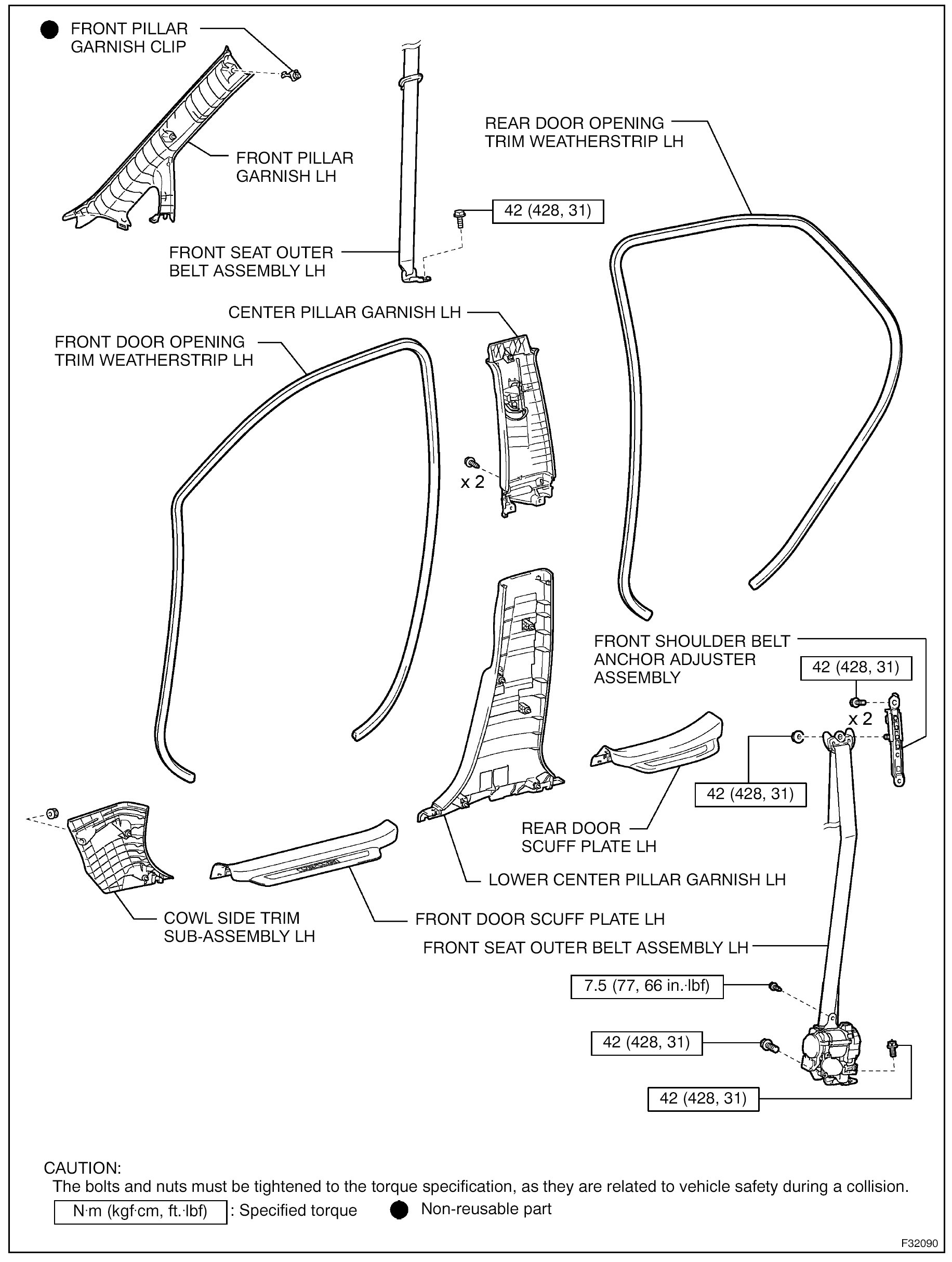

d.
INTERIOR TRIM

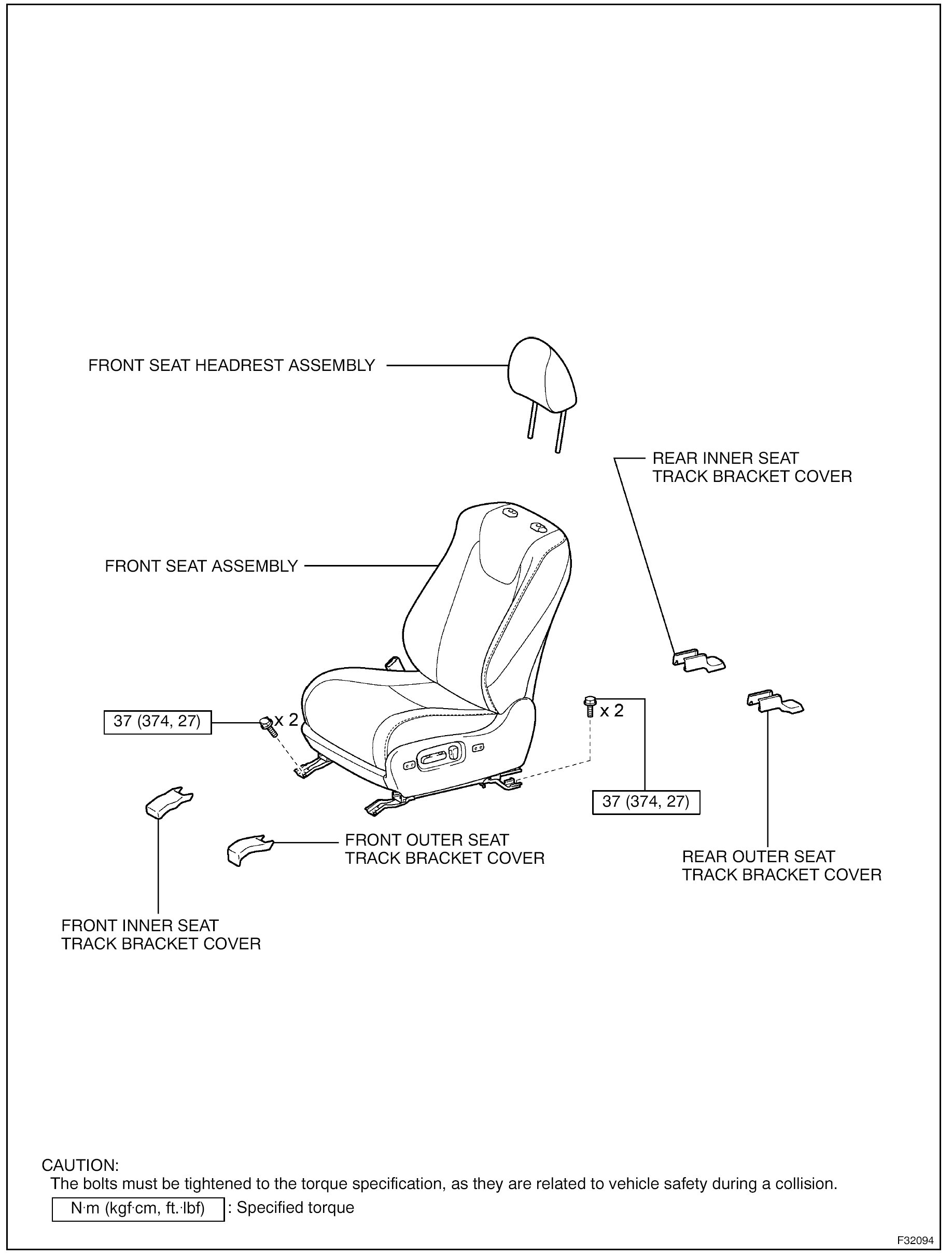

e.
FRONT SEAT

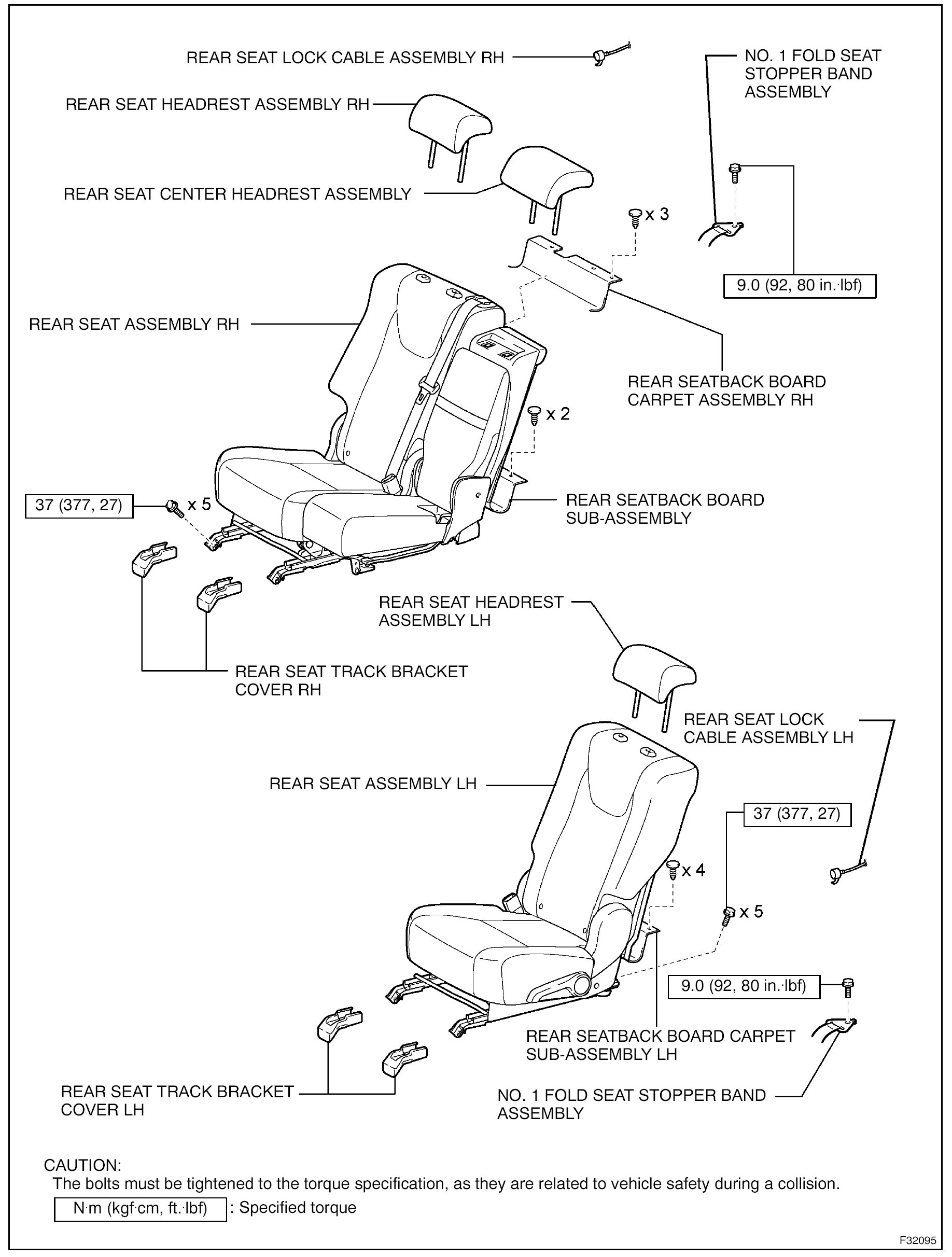

f.
REAR SEAT
