Power Window Control System (Diagnostic Codes & Symptom Tests)
>>
Power Window Control System
>>
Symptom Tests
>>
Remote Up / Down Function does not Operate
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Remote Up / Down Function does not Operate: Wiring Diagram

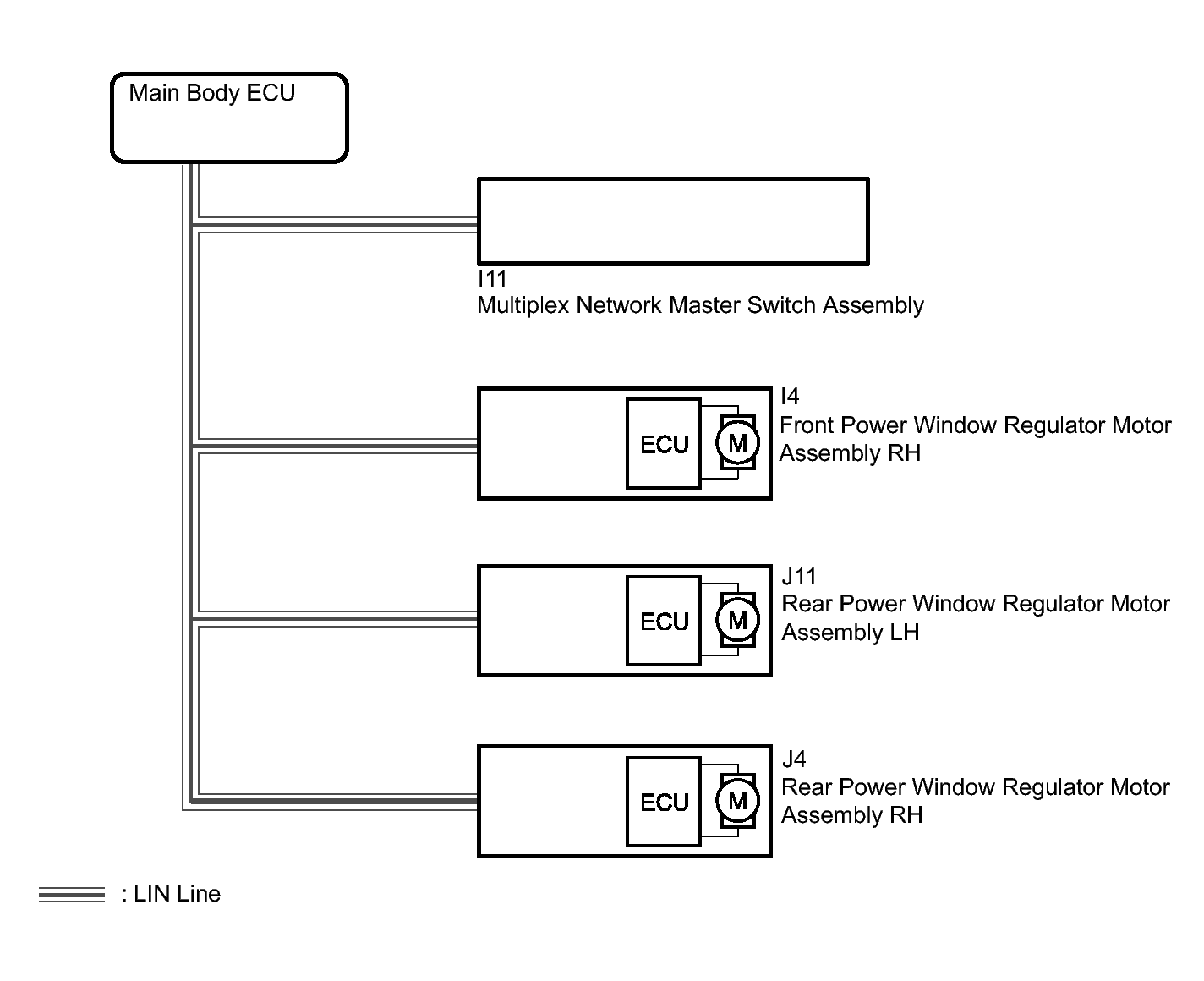

Fig 1: Rear Power Window Regulator Motor - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
