Components [09/2012 - ]: Illustration

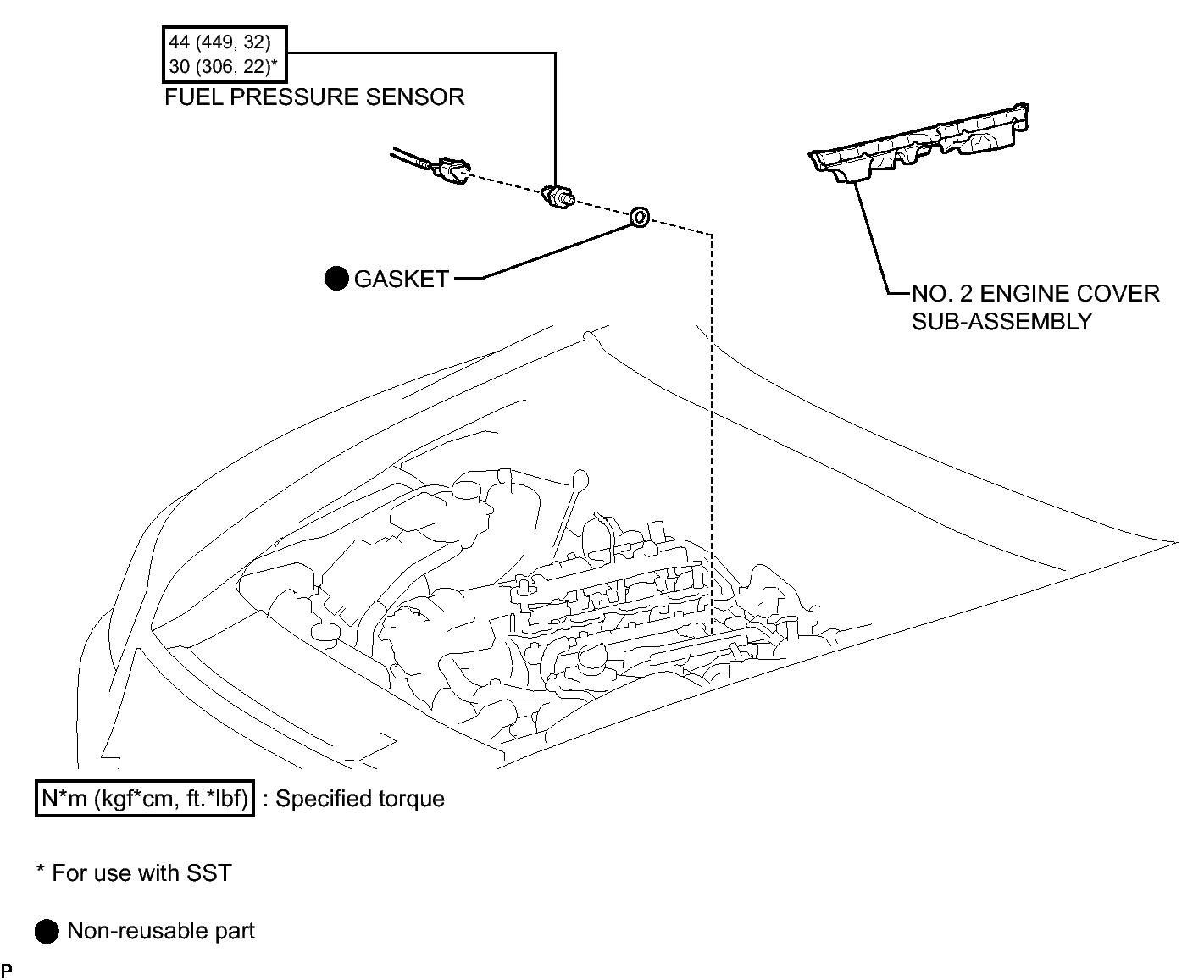

Fig 1: Identifying Fuel Pressure Sensor Replacement Components With Torque Specifications
GTY400634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
