Connector End View (JA4)

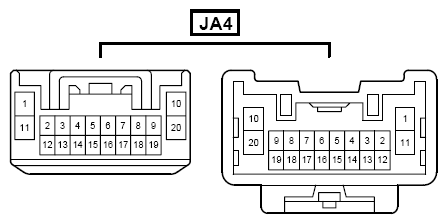

Fig 1: Instrument Panel Wire And Engine Room Main Wire (Right Kick Panel) Connector End View (JA4)
G09119707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
