Connector End View (PX1)

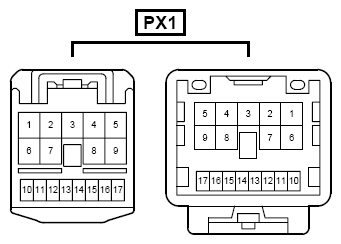

Fig 1: Floor Wire And Front Seat LH Wire (Under Front Seat Cushion LH) Connector End View (PX1)
G09114281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
