Fuel Injector: Components: Illustration

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (1 Of 2)
GTY266216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

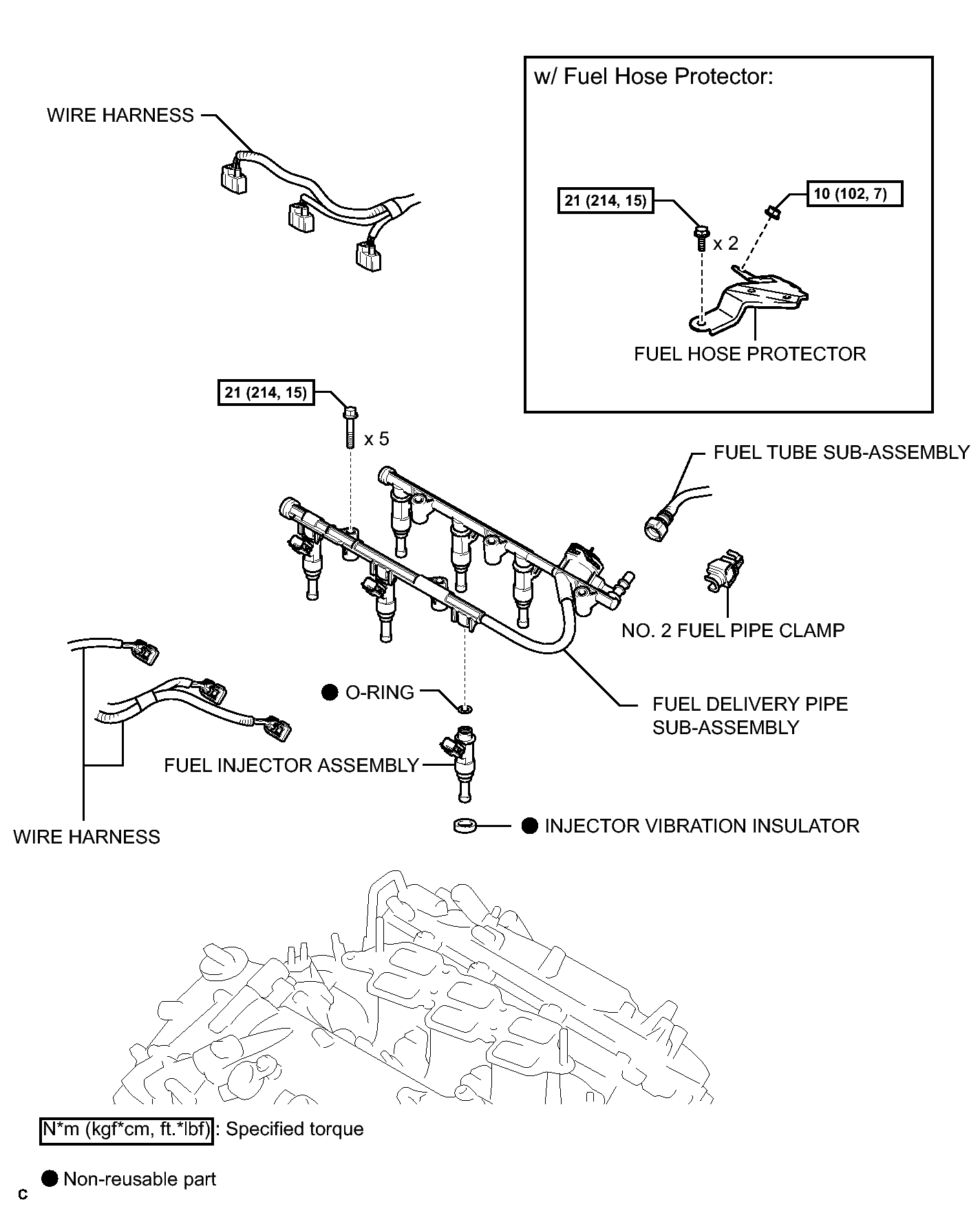

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (2 Of 2)
GTY358224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
