Power Window Control System
>>
Symptom Tests
>>
Key-off Operation Function Operates even if Operating Conditions are not Satisfied
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Key-off Operation Function Operates even if Operating Conditions are not Satisfied: Wiring Diagram

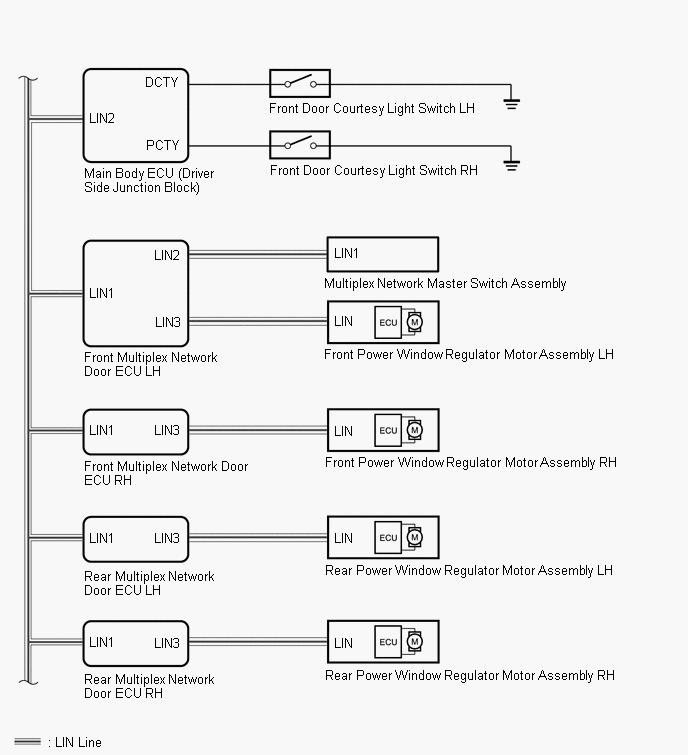

Fig 1: Main Body ECU LIN - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
