Power Window Control System
>>
DTC B2312: Power Window Switch Malfunction
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC B2312: Power Window Switch Malfunction: Wiring Diagram

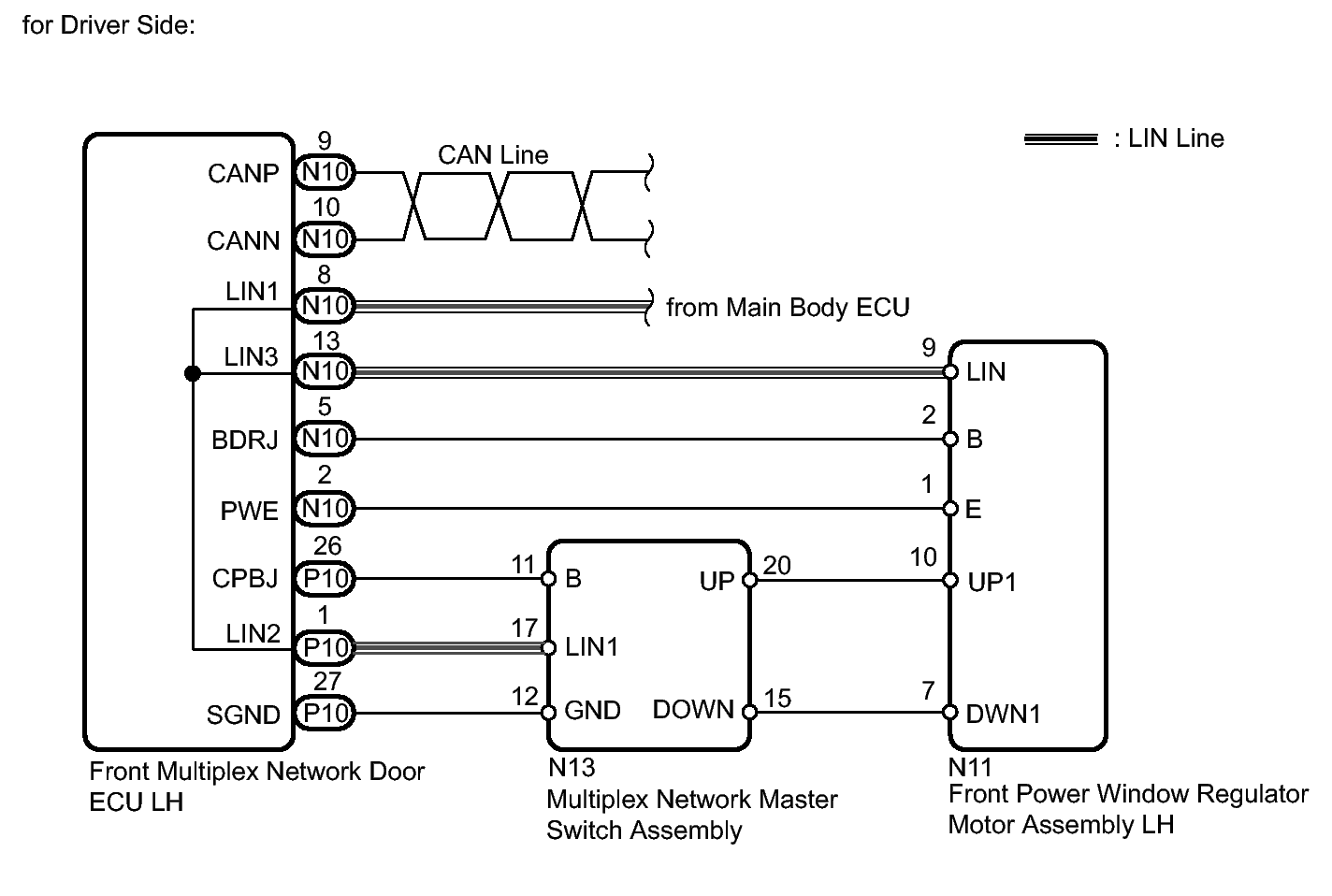

Fig 1: Power Window System - Wiring Diagram (Driver Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

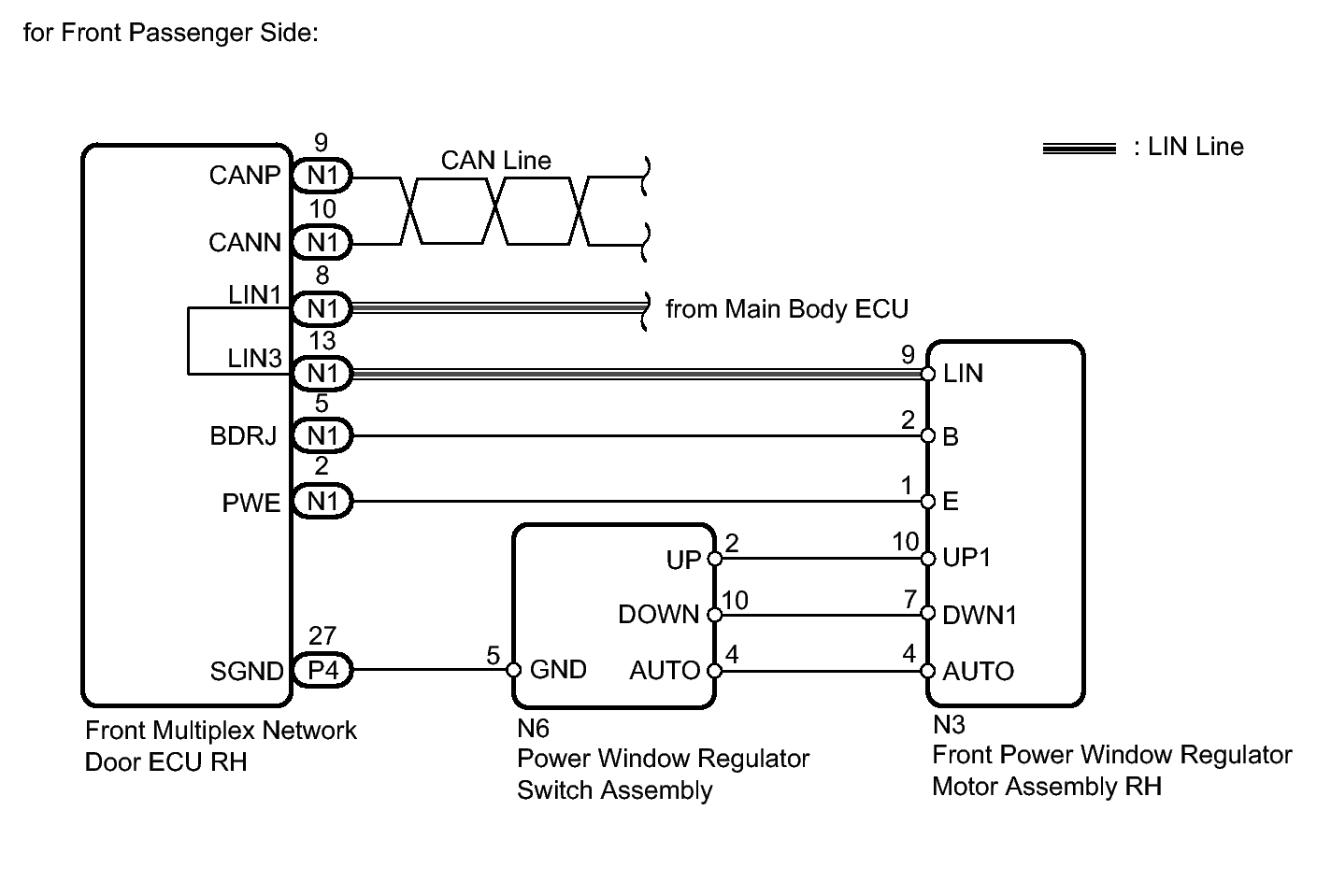

Fig 2: Power Window System - Wiring Diagram (Passenger Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

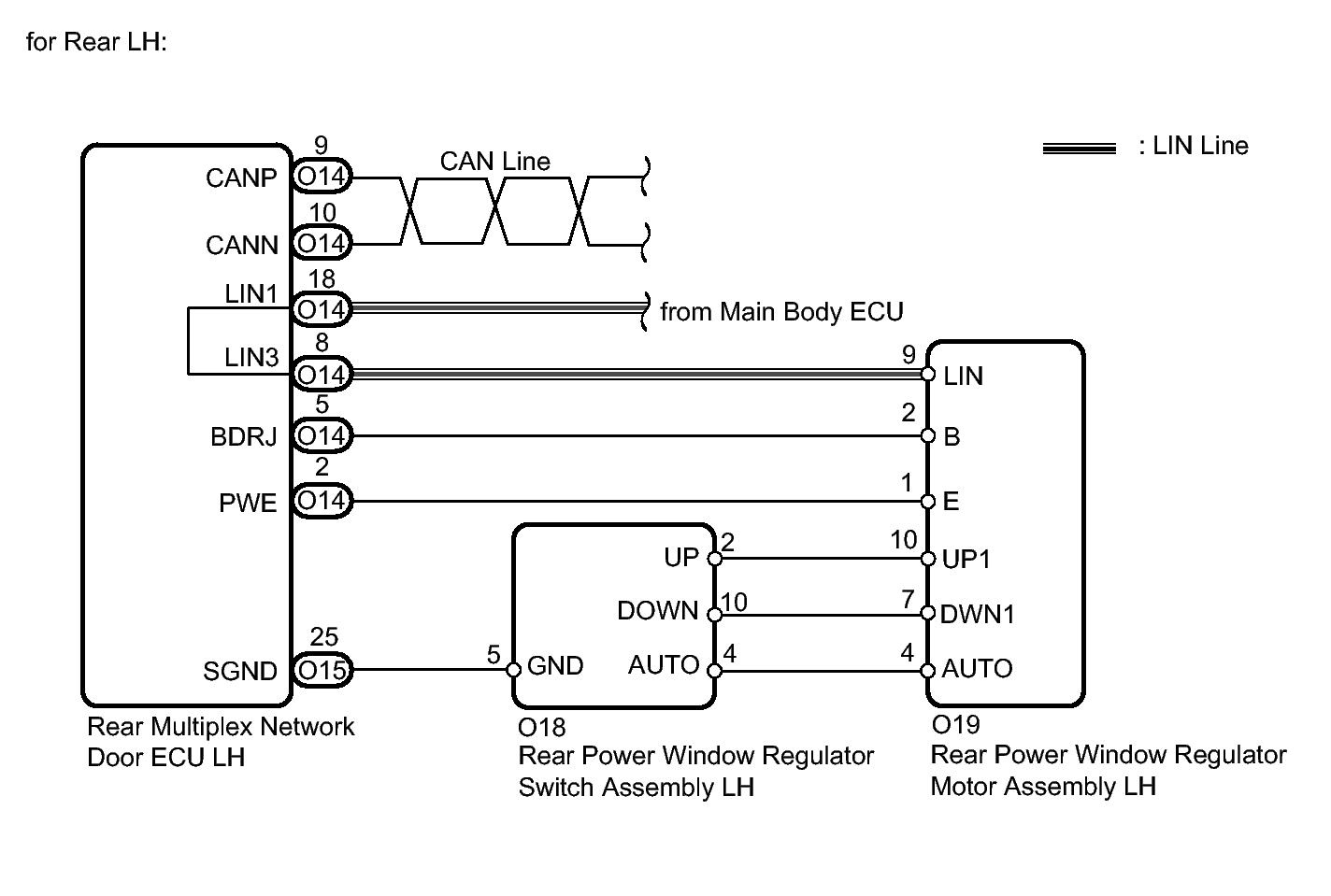

Fig 3: Power Window System - Wiring Diagram (Rear LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Power Window System - Wiring Diagram (Raer RH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
