Removal

WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH: REMOVAL

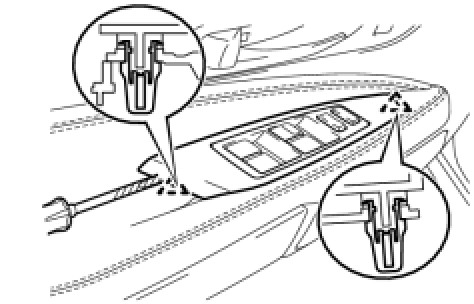

1. REMOVE MASTER SWITCH ASSEMBLY

(a) Using a screwdriver, detach the 2 clips.





HINT
Tape the screwdriver tip before use.

(b) Disconnect the connector and remove the armrest base panel assembly.





(c) Remove the 3 screws and master switch assembly.
