AA80E Automatic Transmission System

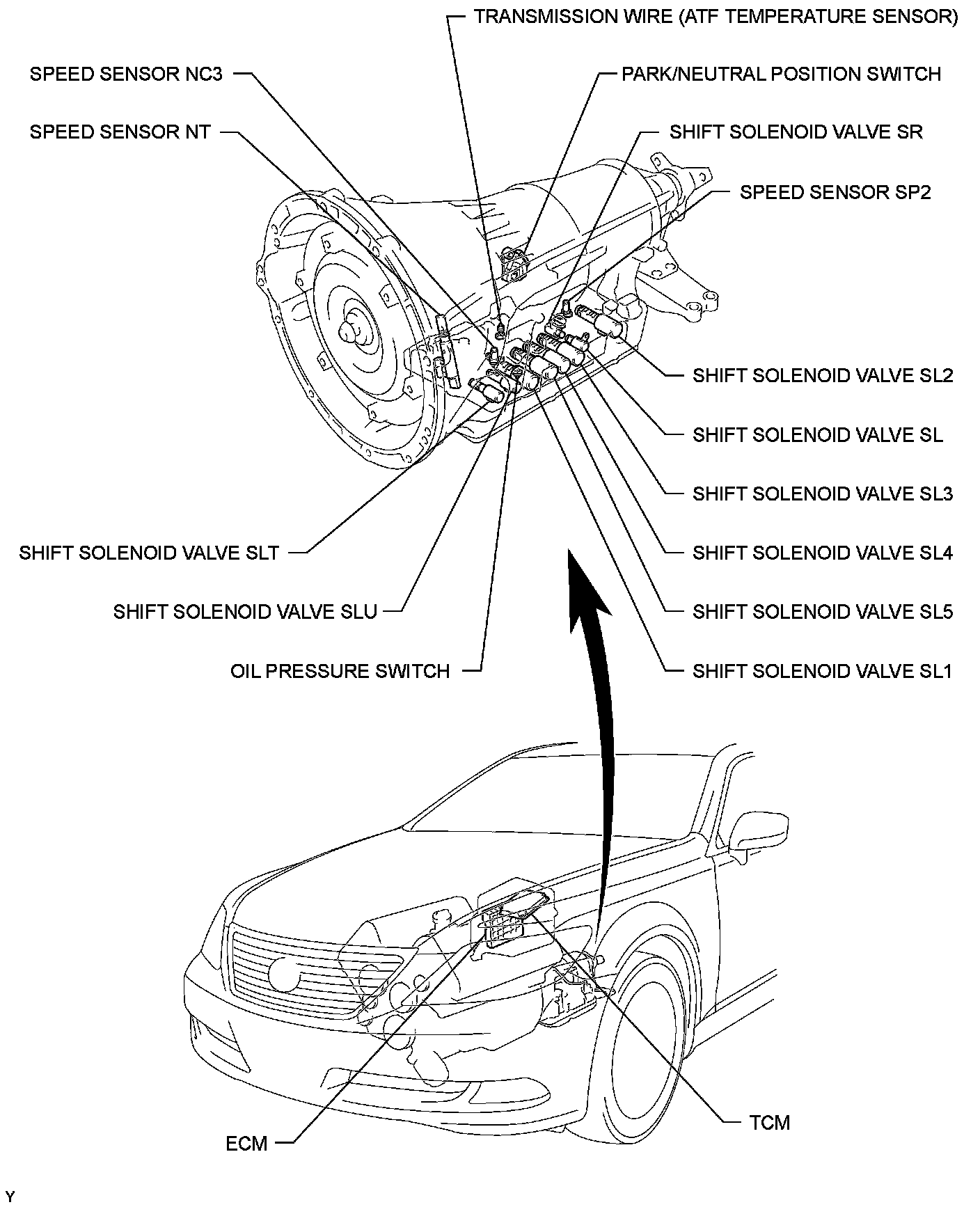

AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: PARTS LOCATION





Engine Compartment:
