Service Data

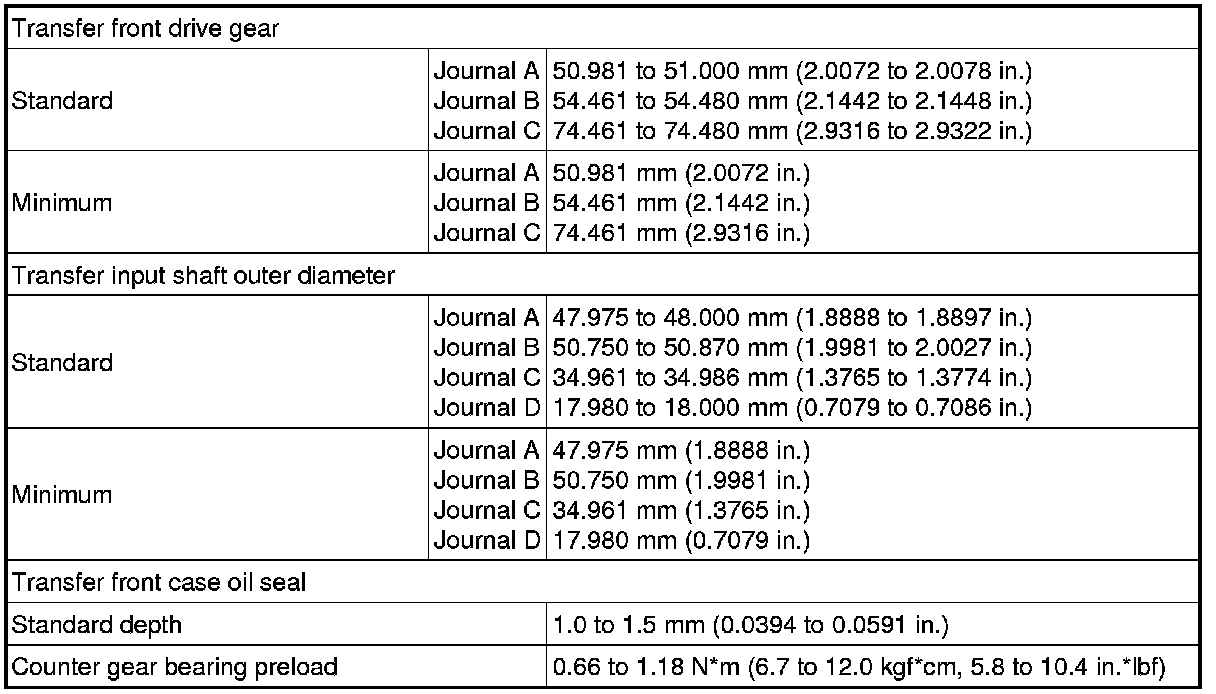

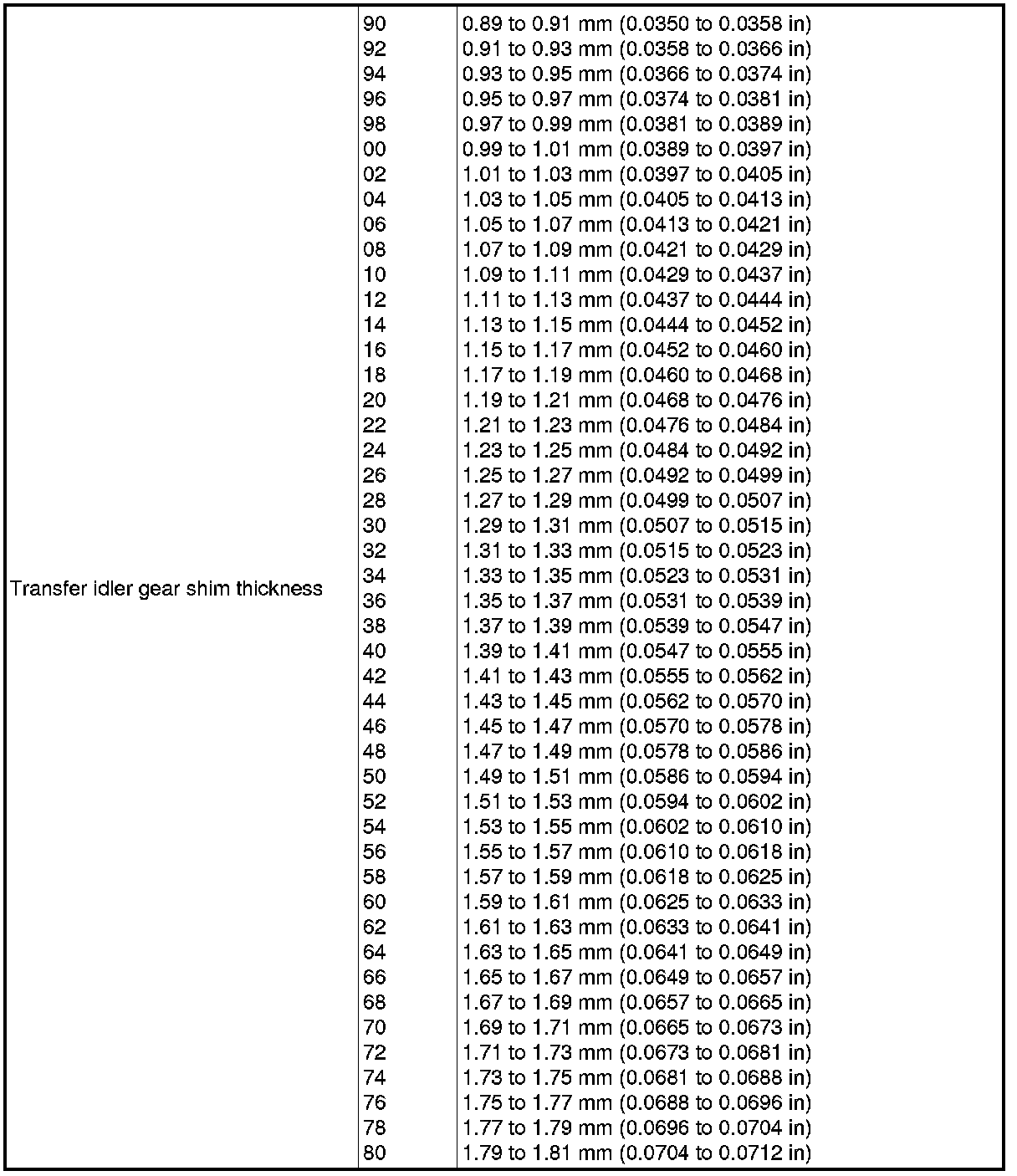

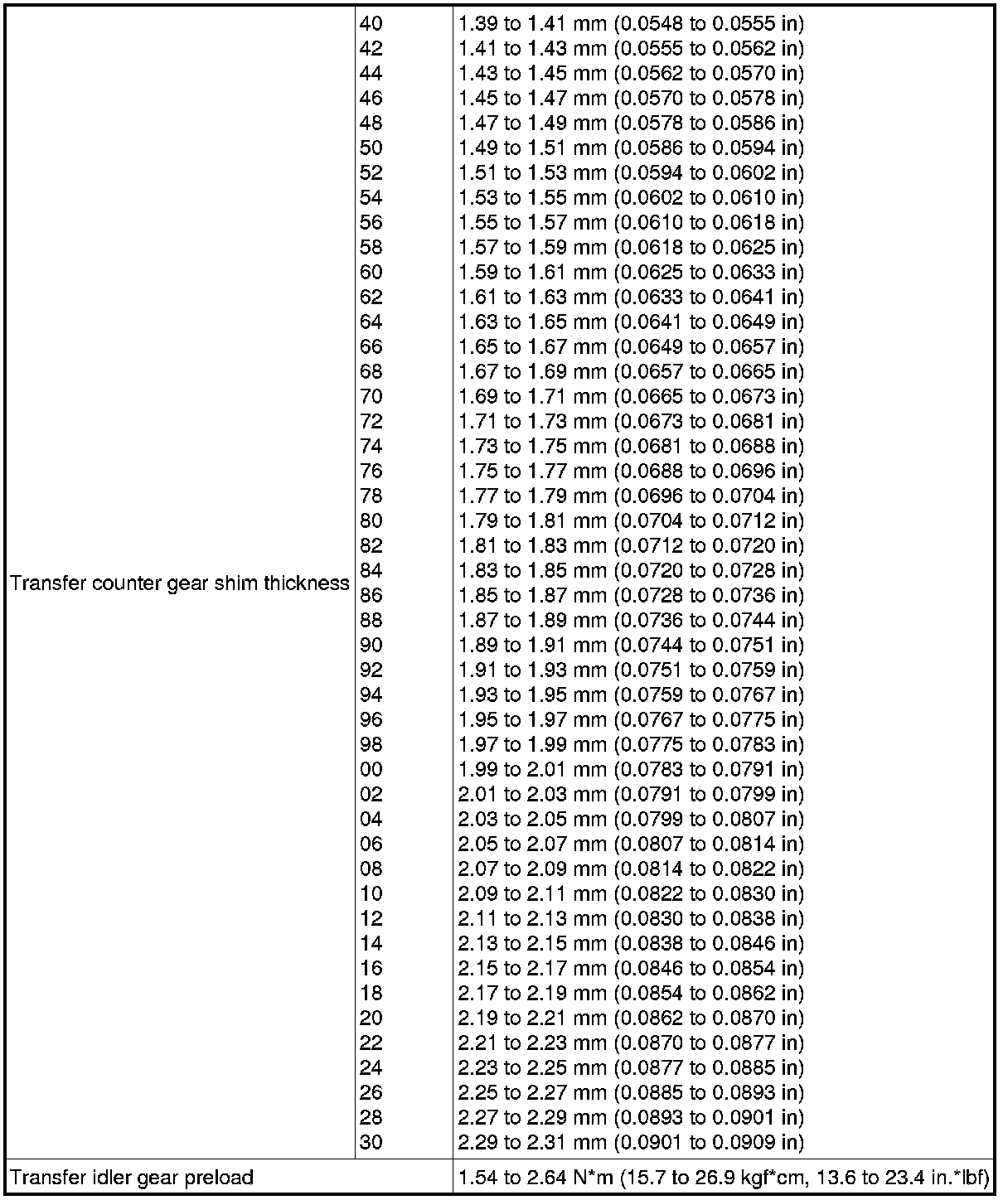

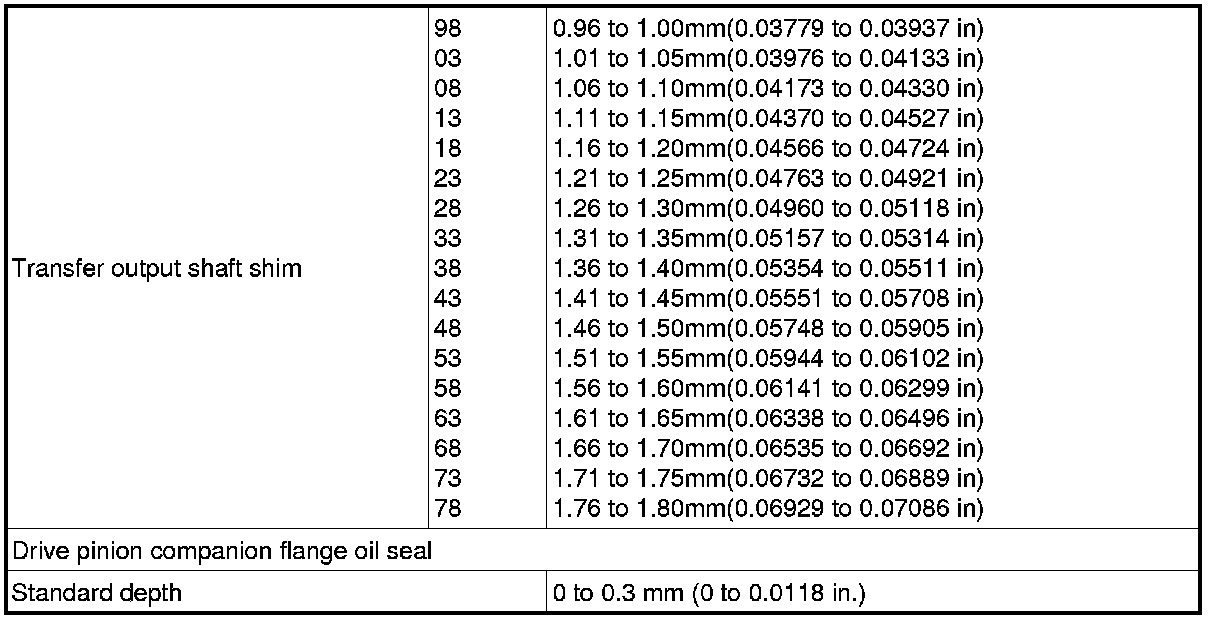

SERVICE SPECIFICATIONS: LF1A TRANSFER: SERVICE DATA

Transfer Case Front Oil Seal





Transfer Case Rear Oil Seal





Transfer Assembly
