Torque Specifications





SERVICE SPECIFICATIONS: POWER STEERING: TORQUE SPECIFICATIONS

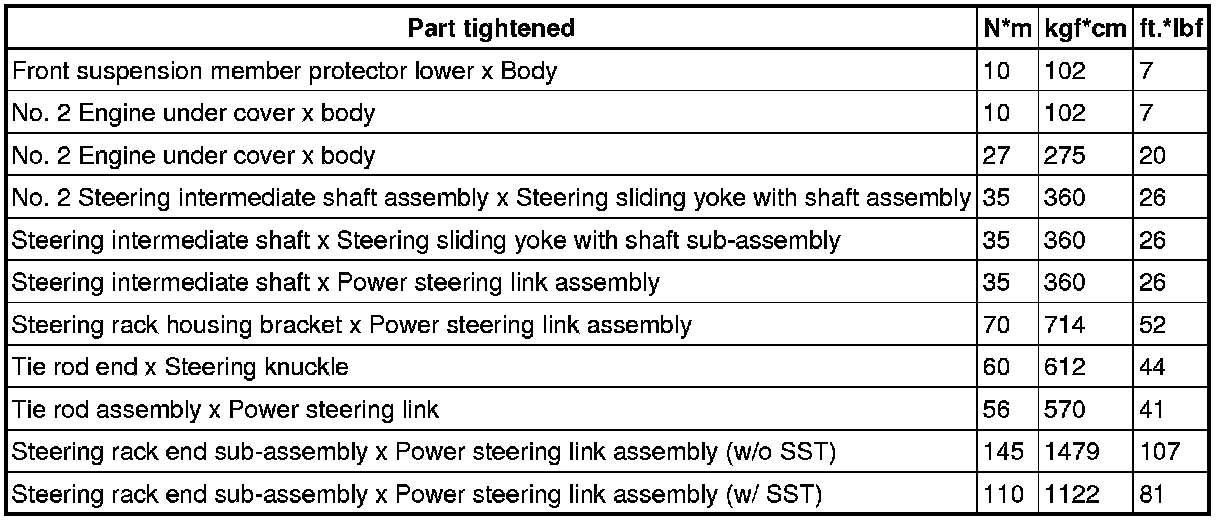

STEERING GEAR (w/o VGRS)

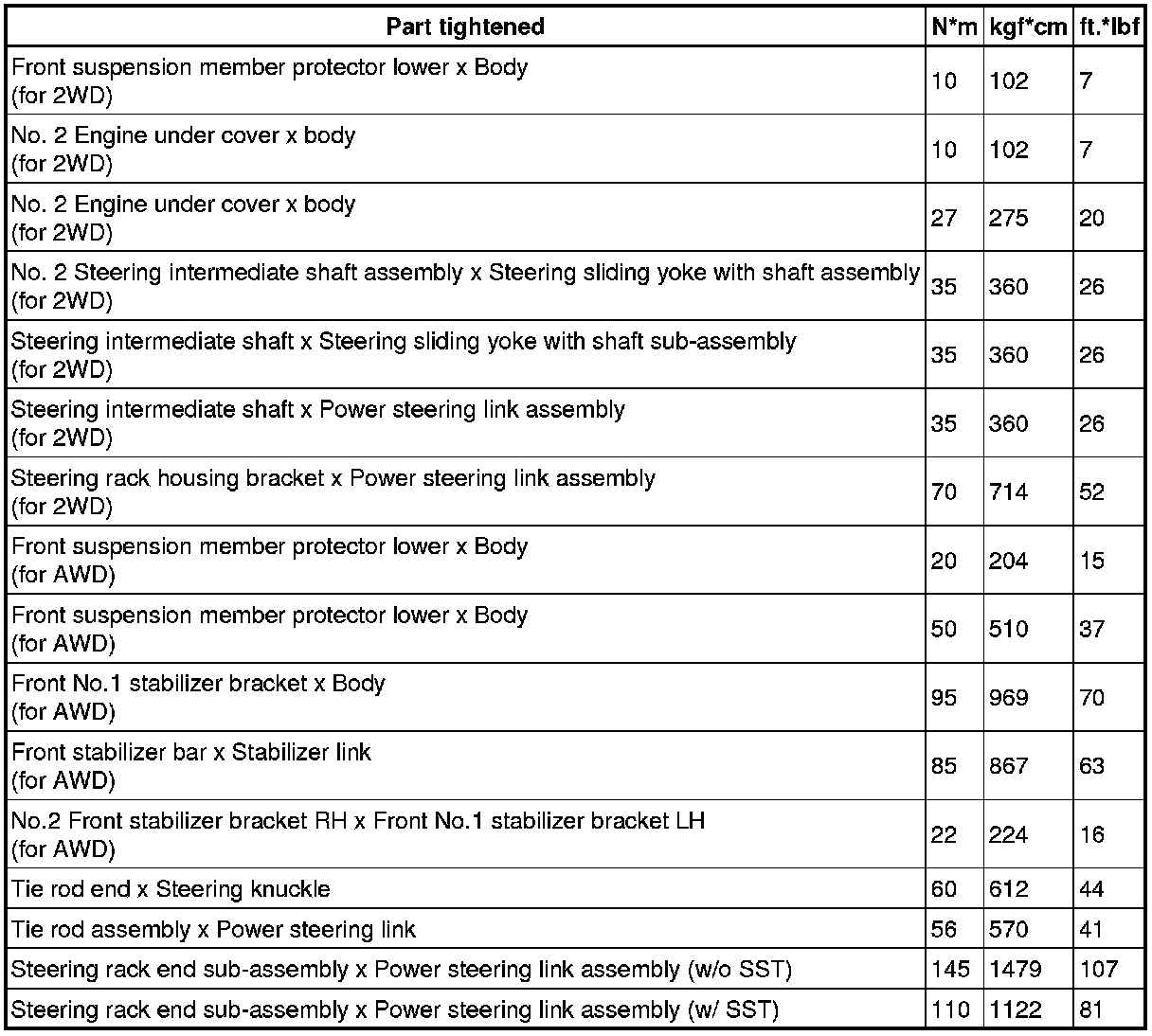

STEERING GEAR (w/ VGRS)





Power steering ECU





DC-DC Converter
