Flex Plate

Flexplate

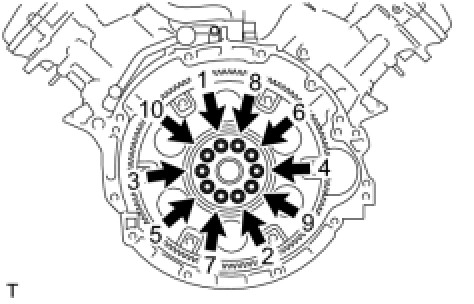

Tighten 10 new bolts 30 Nm (301 kgf-cm, 22 ft-lbf)

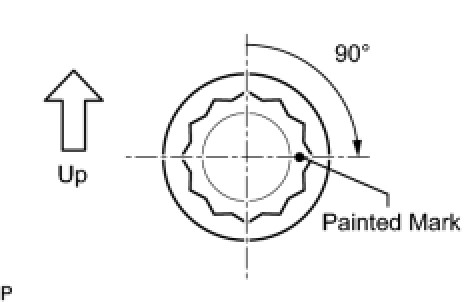

Mark the upside of each drive plate installation bolt with paint.





Retighten the drive plate installation bolts by 90°

Check that the painted marks are now at a 90° angle to the upside.
