Variable Valve Timing Relay: Locations

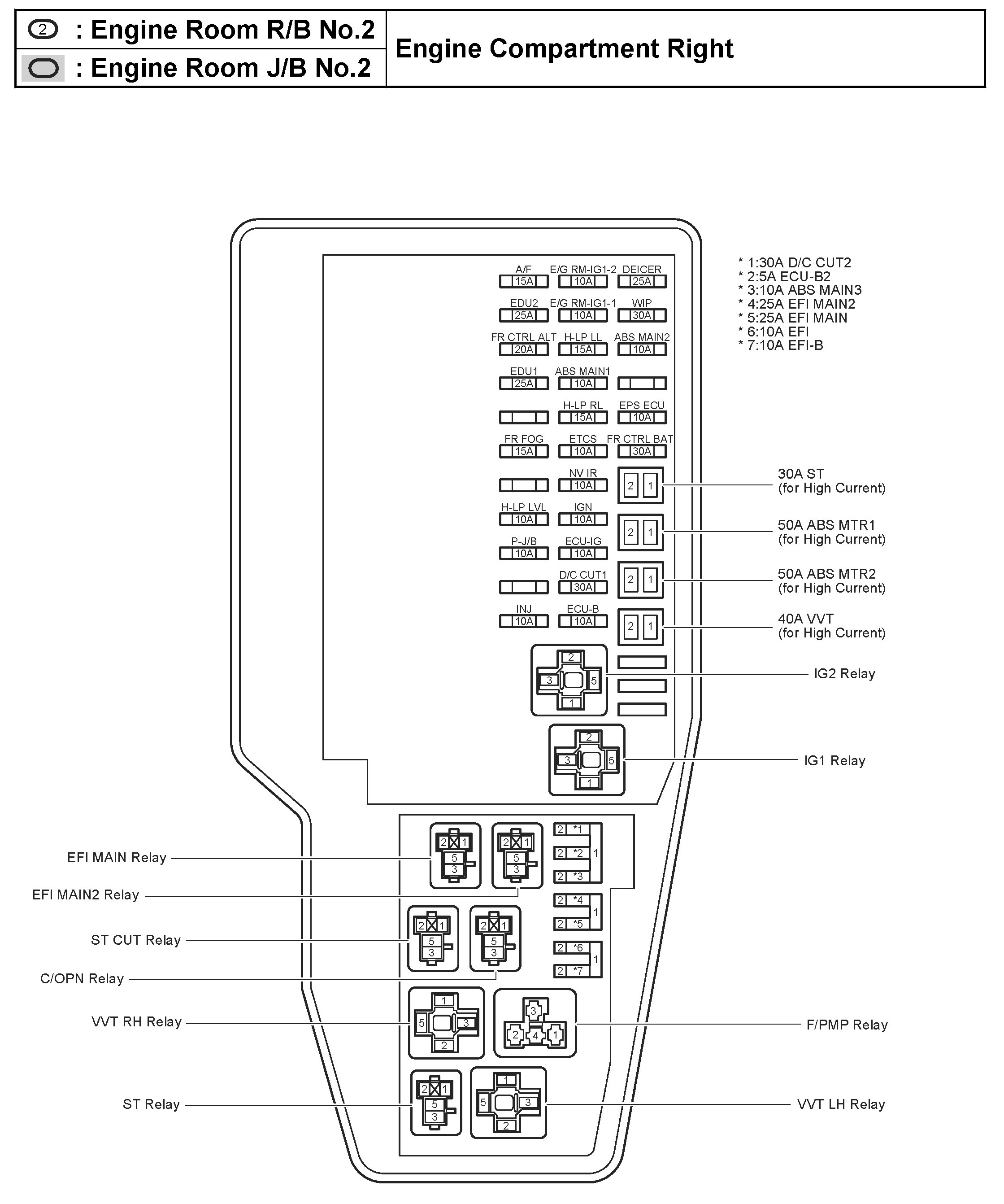

28 - Engine Room R/B No.2, Engine Room J/B No.2 - Engine Compartment Right:
