Component Location: Illustration

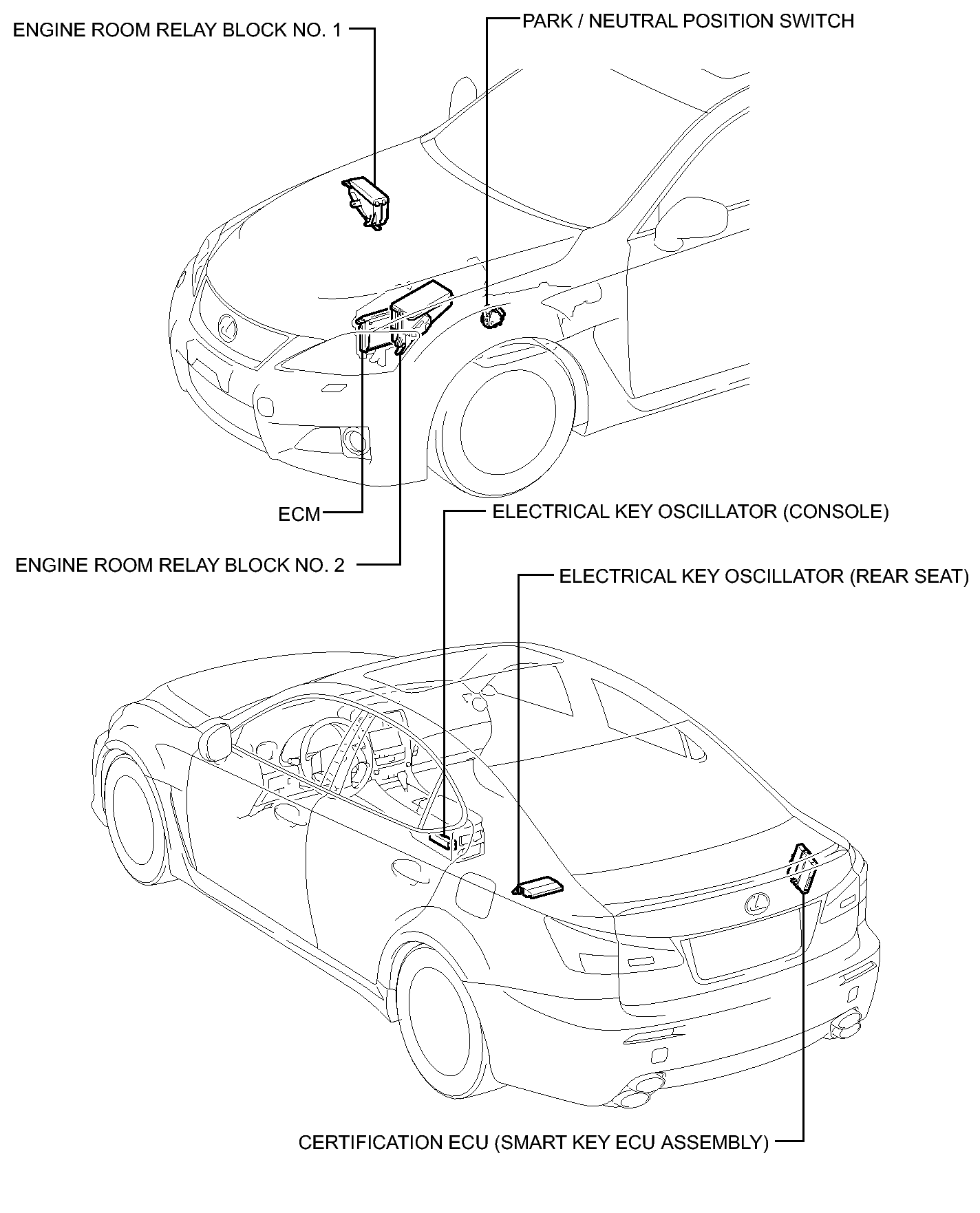

Fig 1: Locating Engine Room Relay Component Location (1 Of 2)
GTY114755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating Engine Room Relay Component Location (2 Of 2)
GTY114756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
