Engine Unit: Components: Illustration

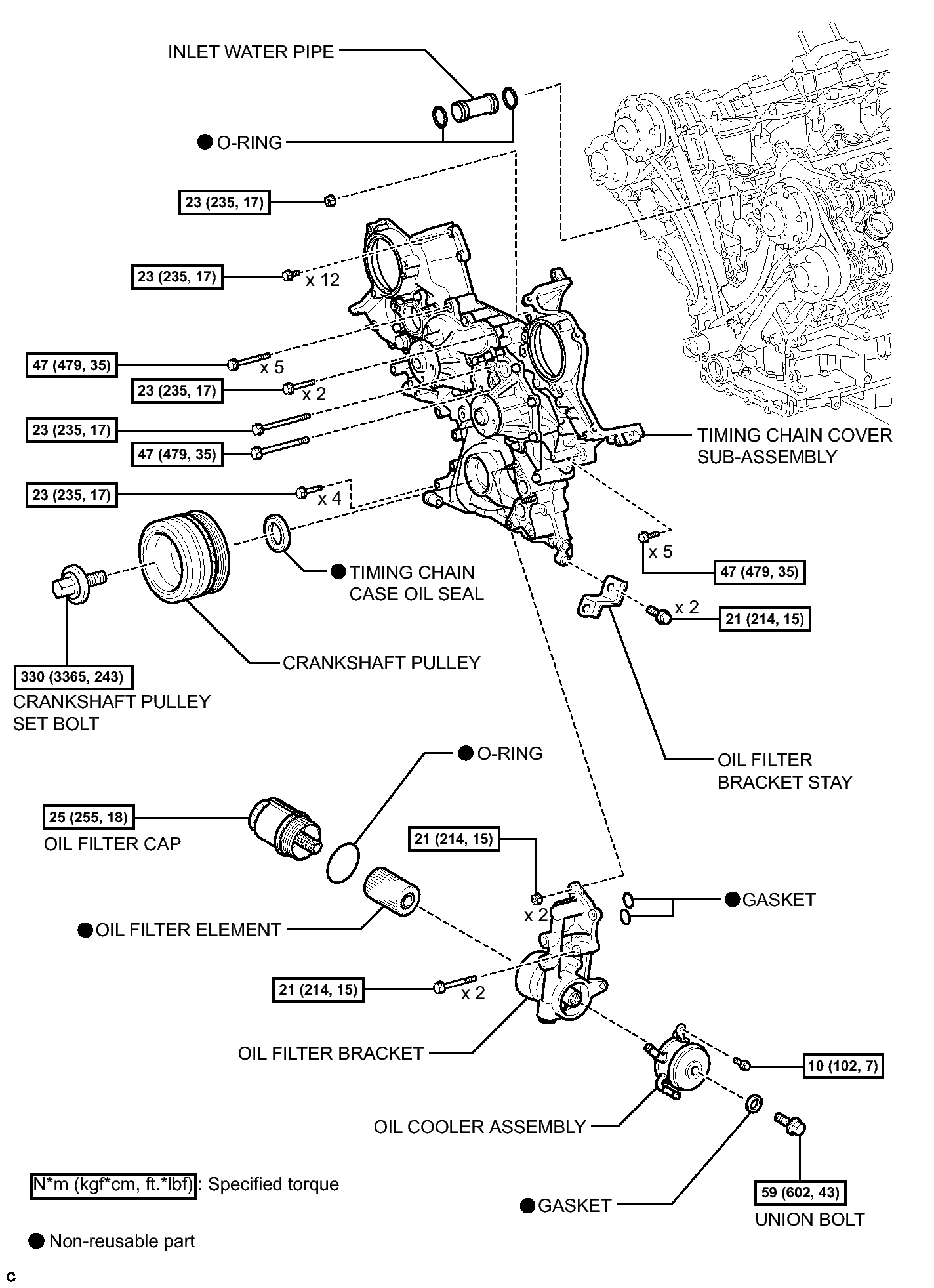

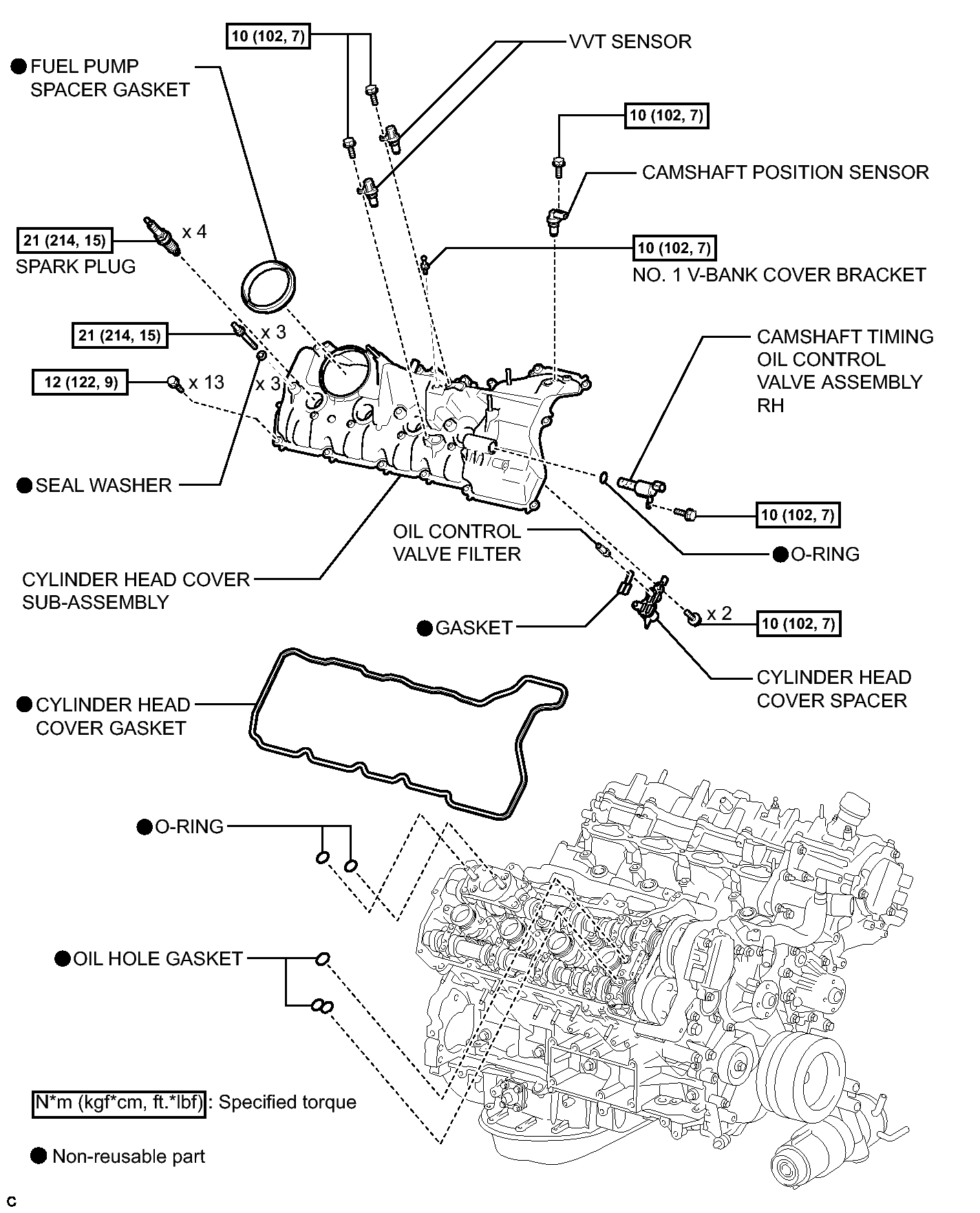

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

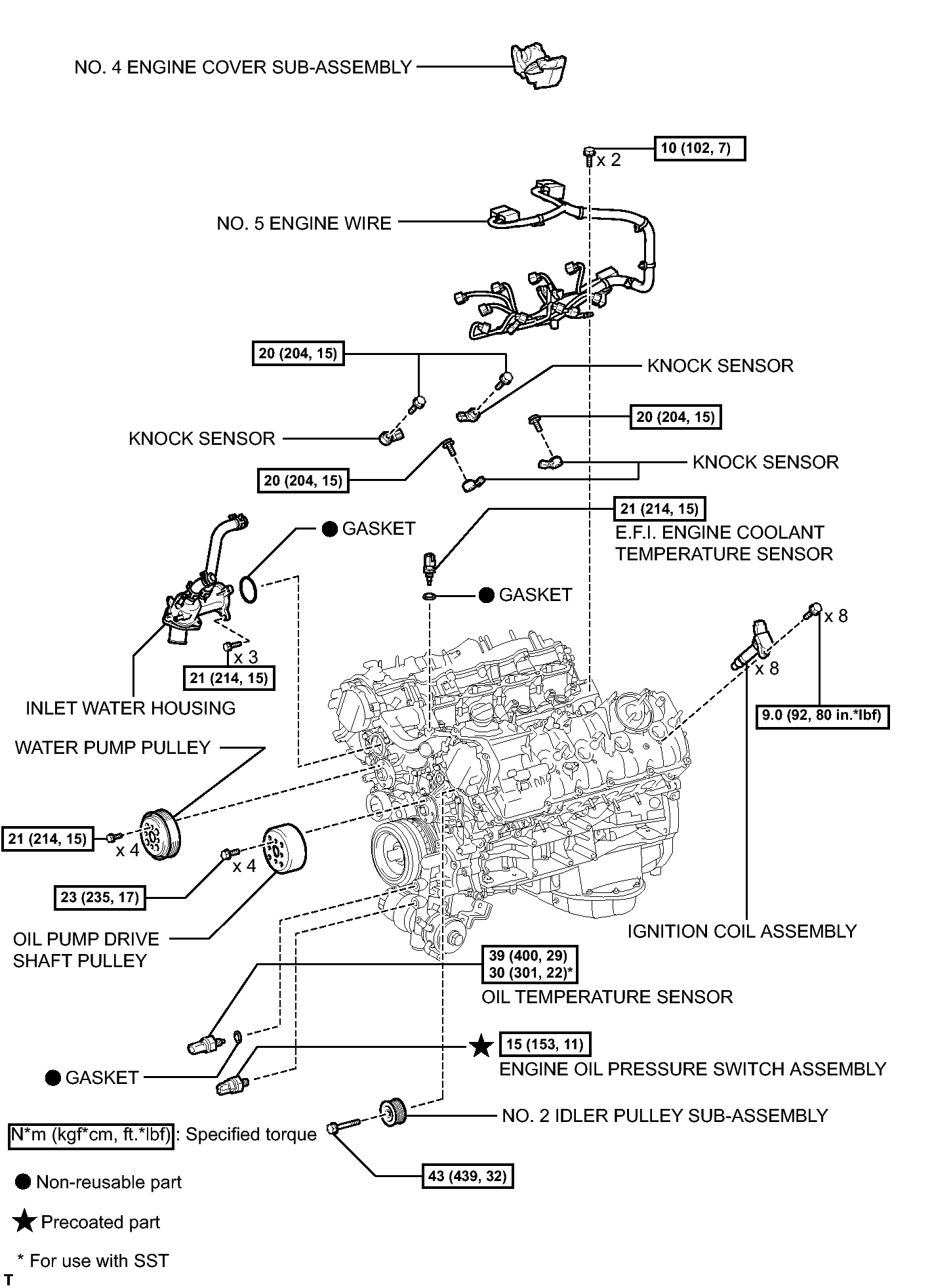

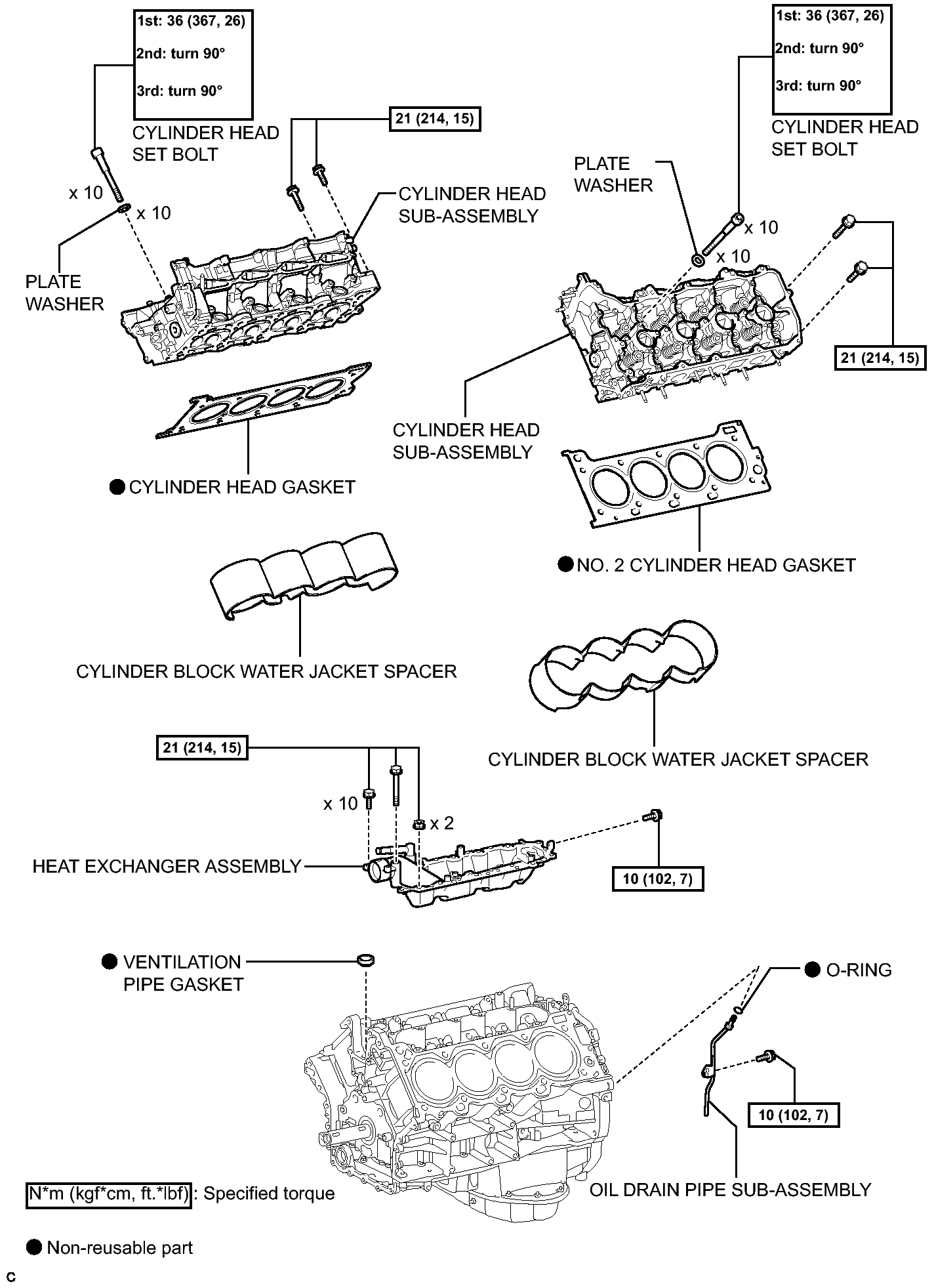

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

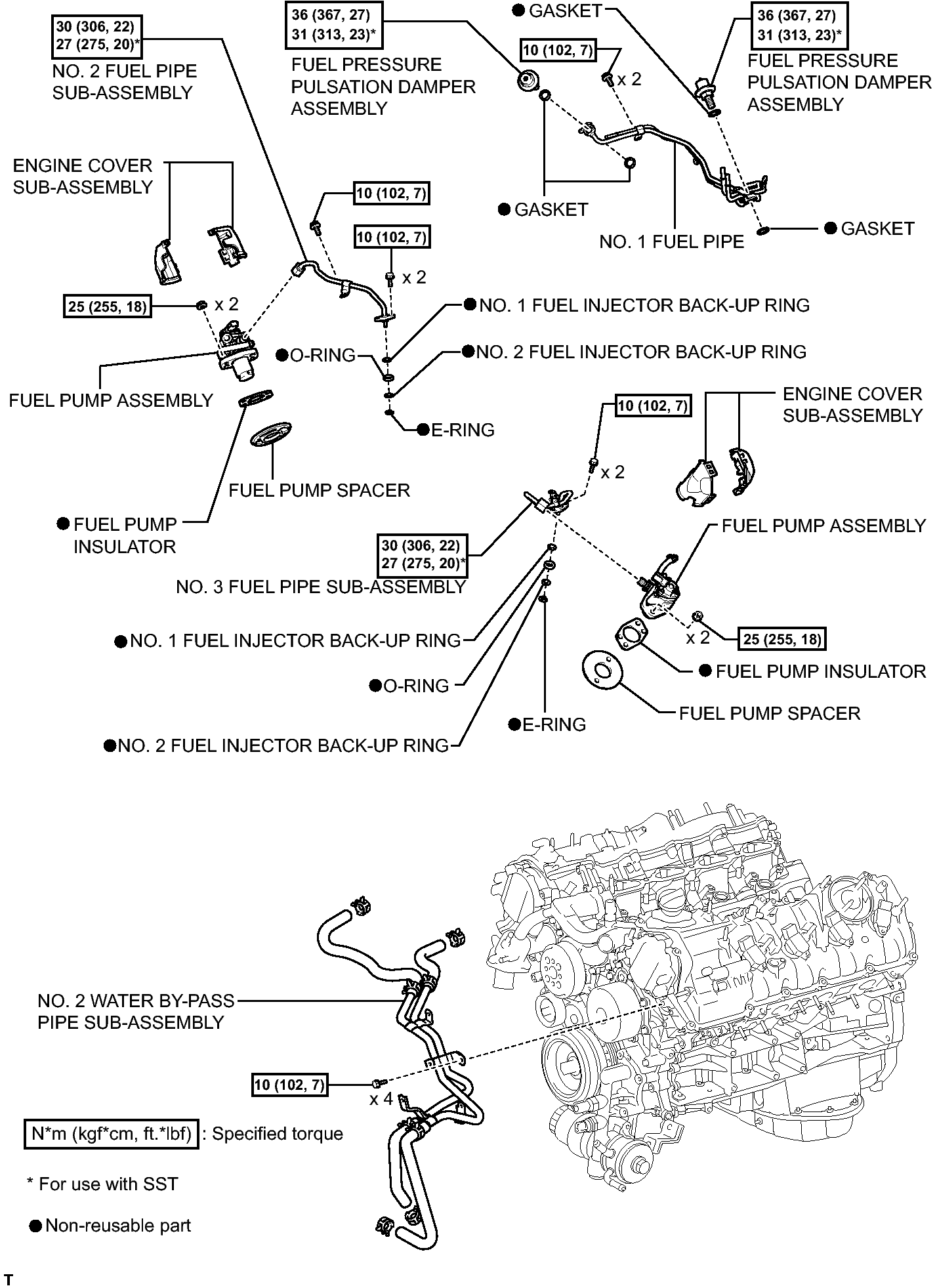

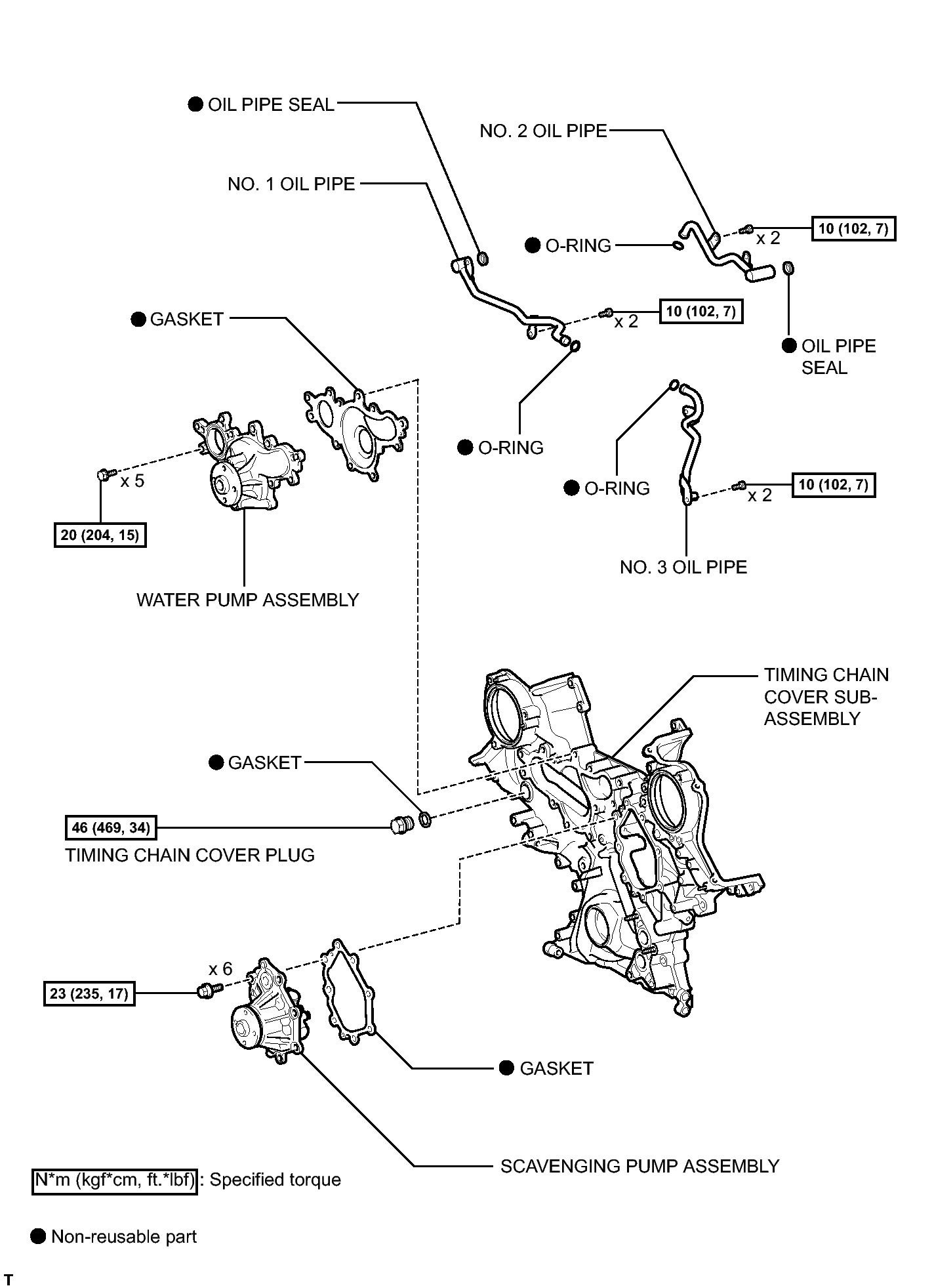

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

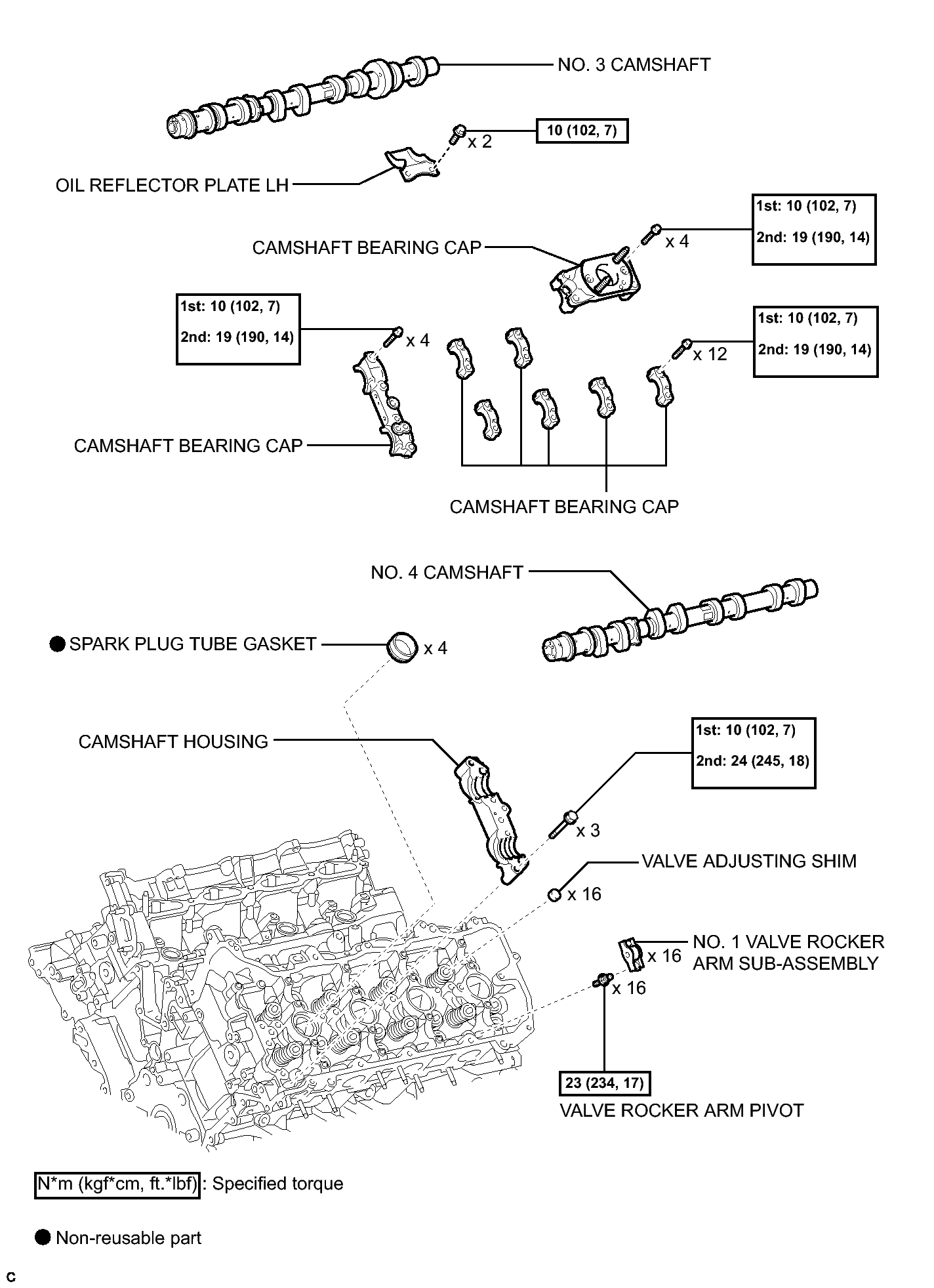

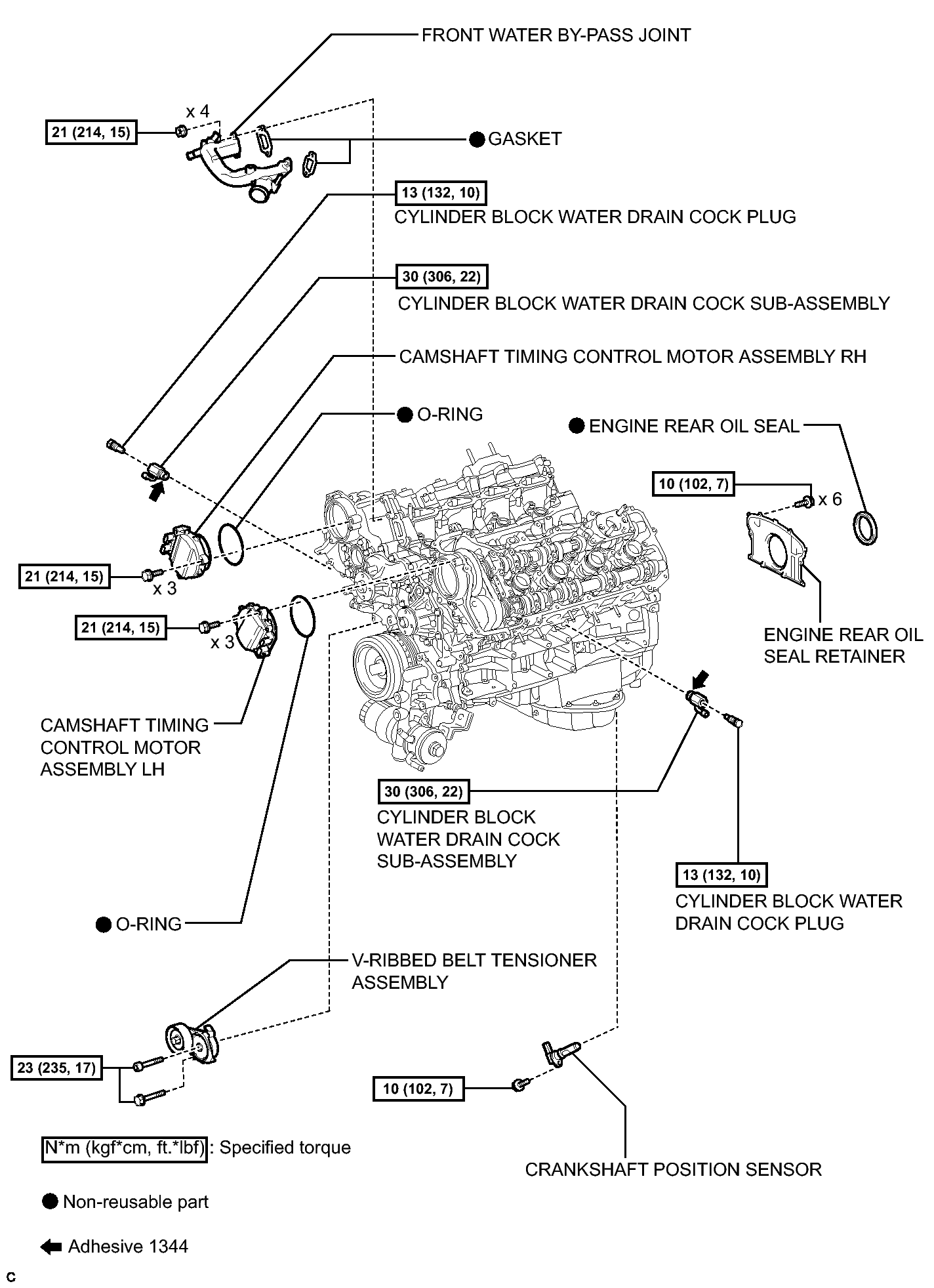

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

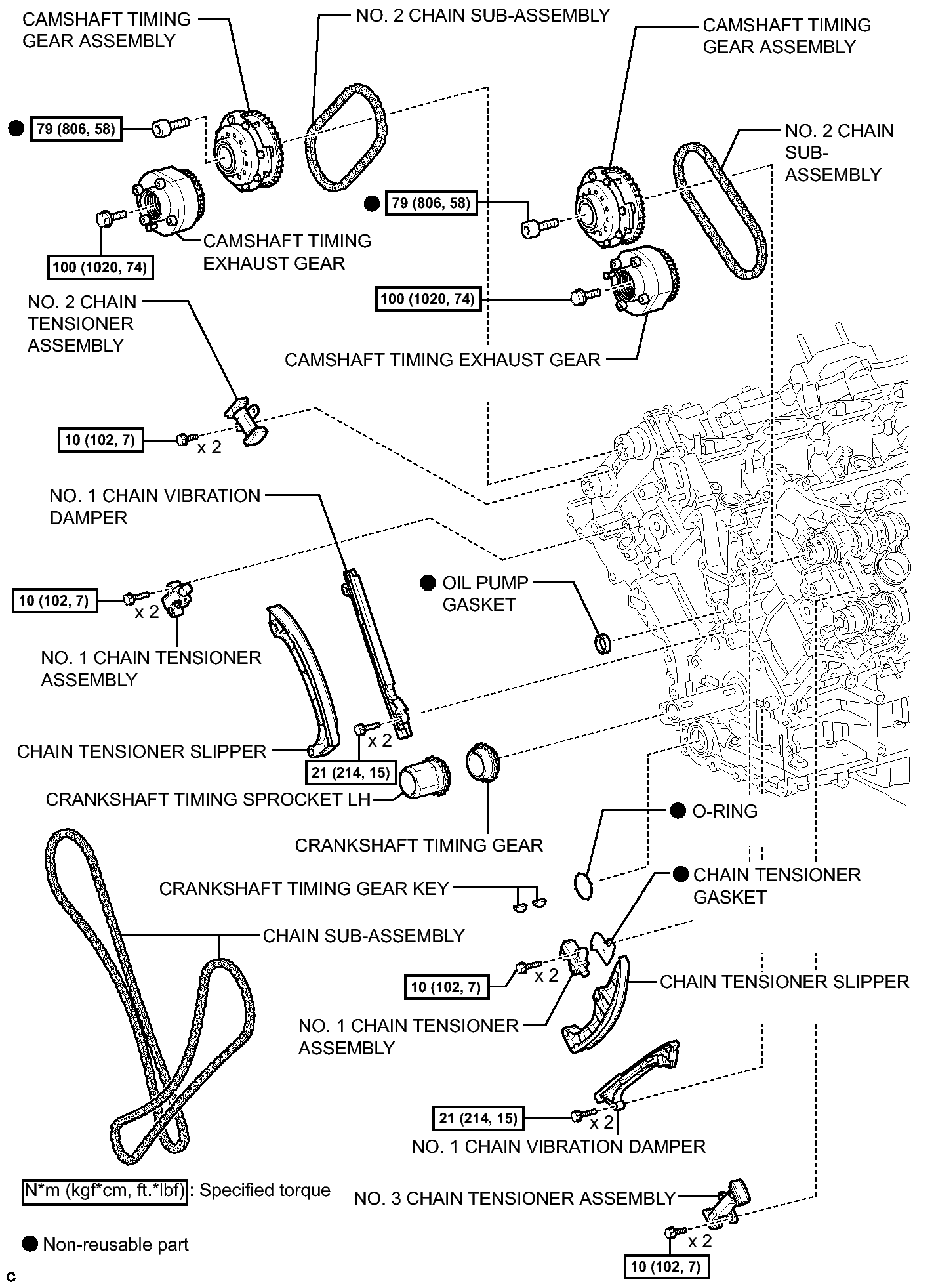

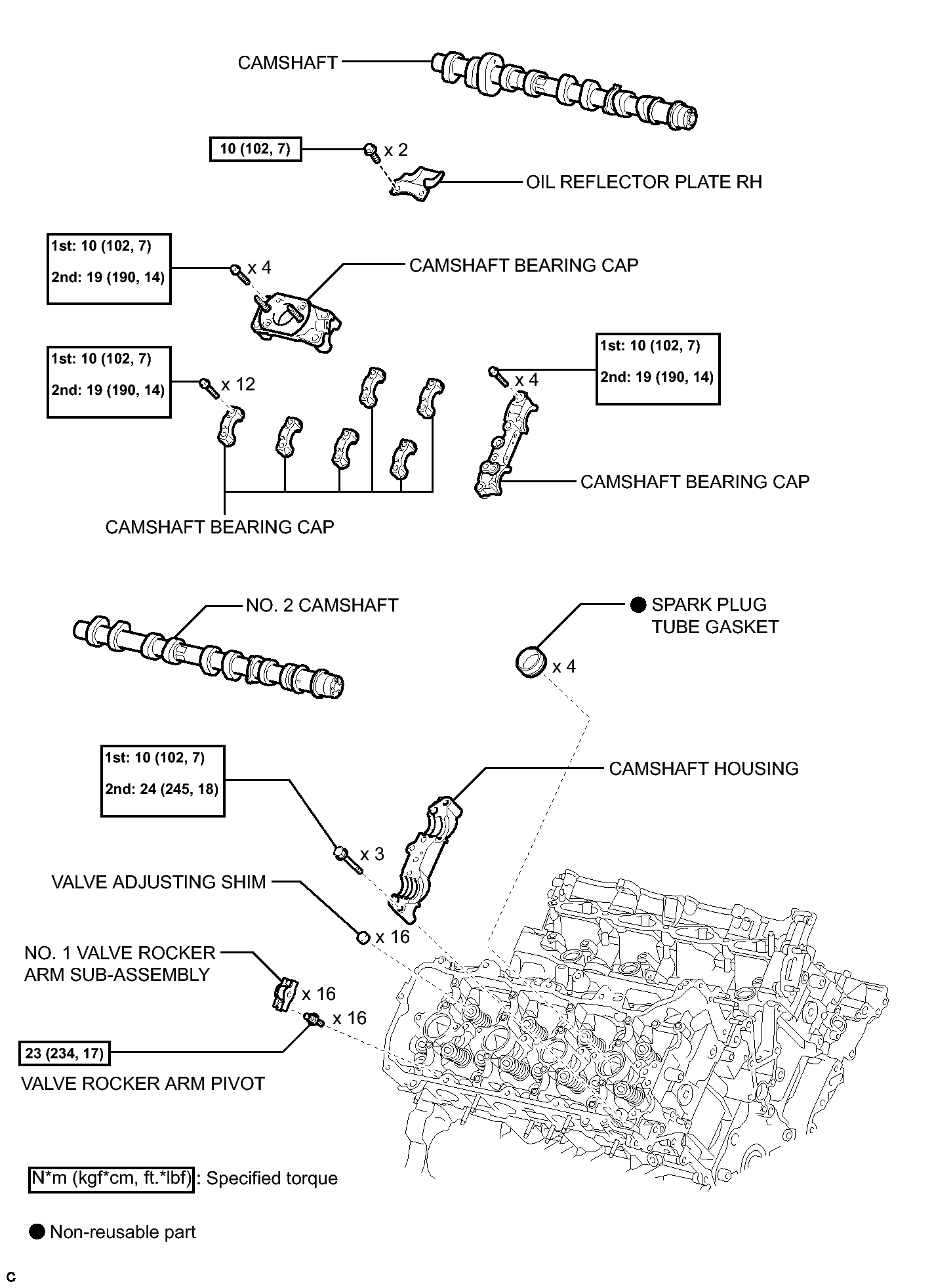

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

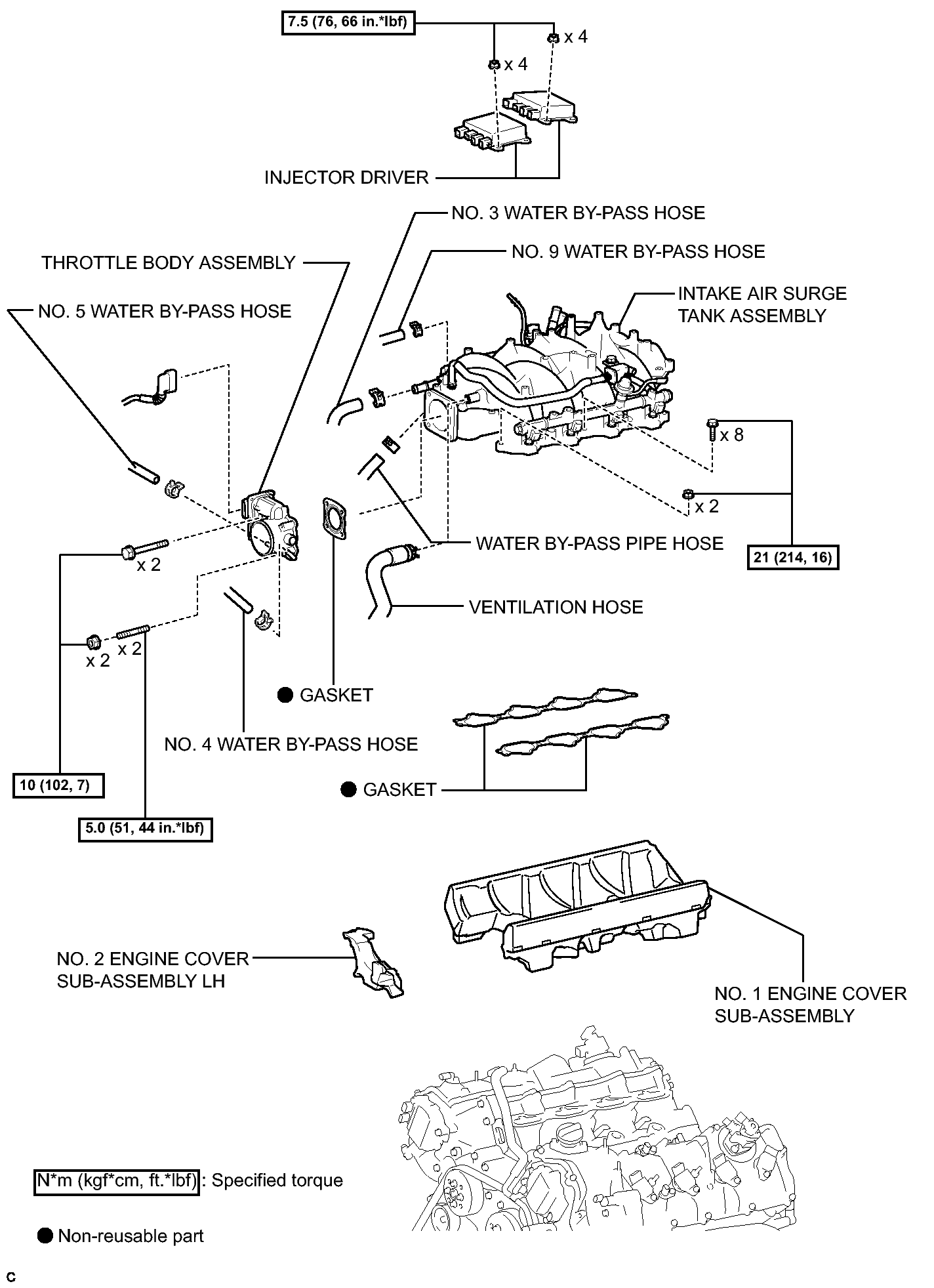

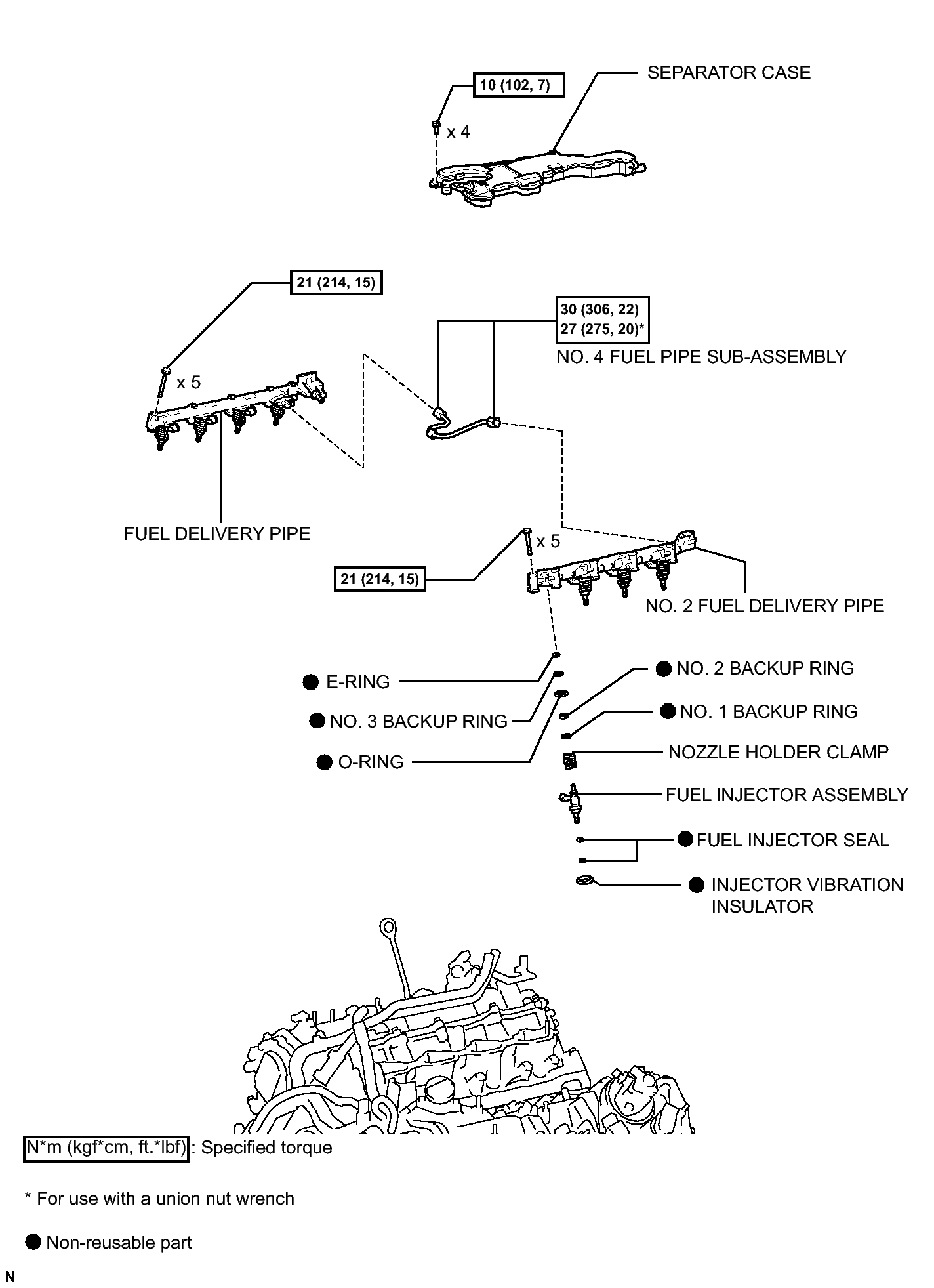

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

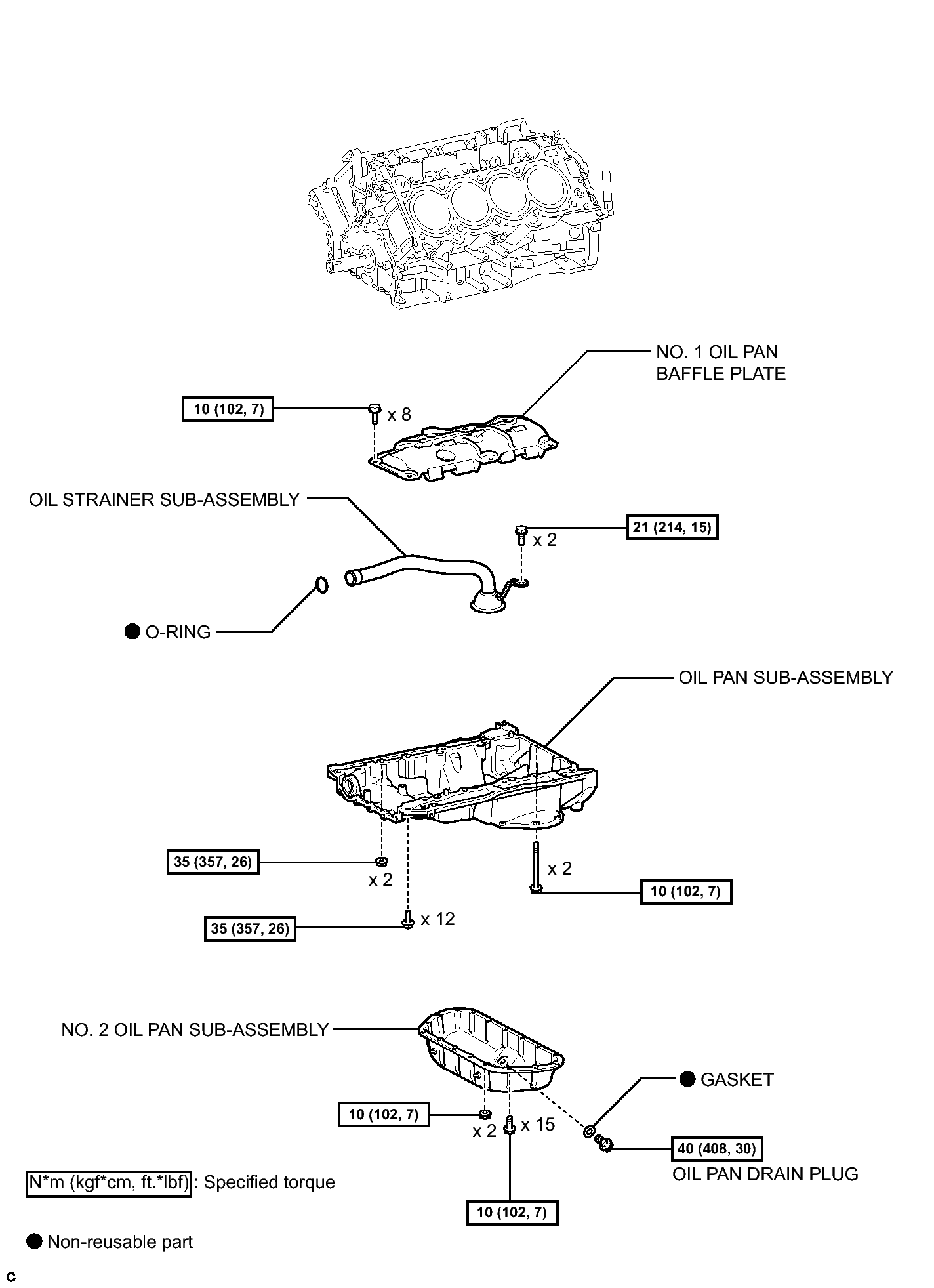

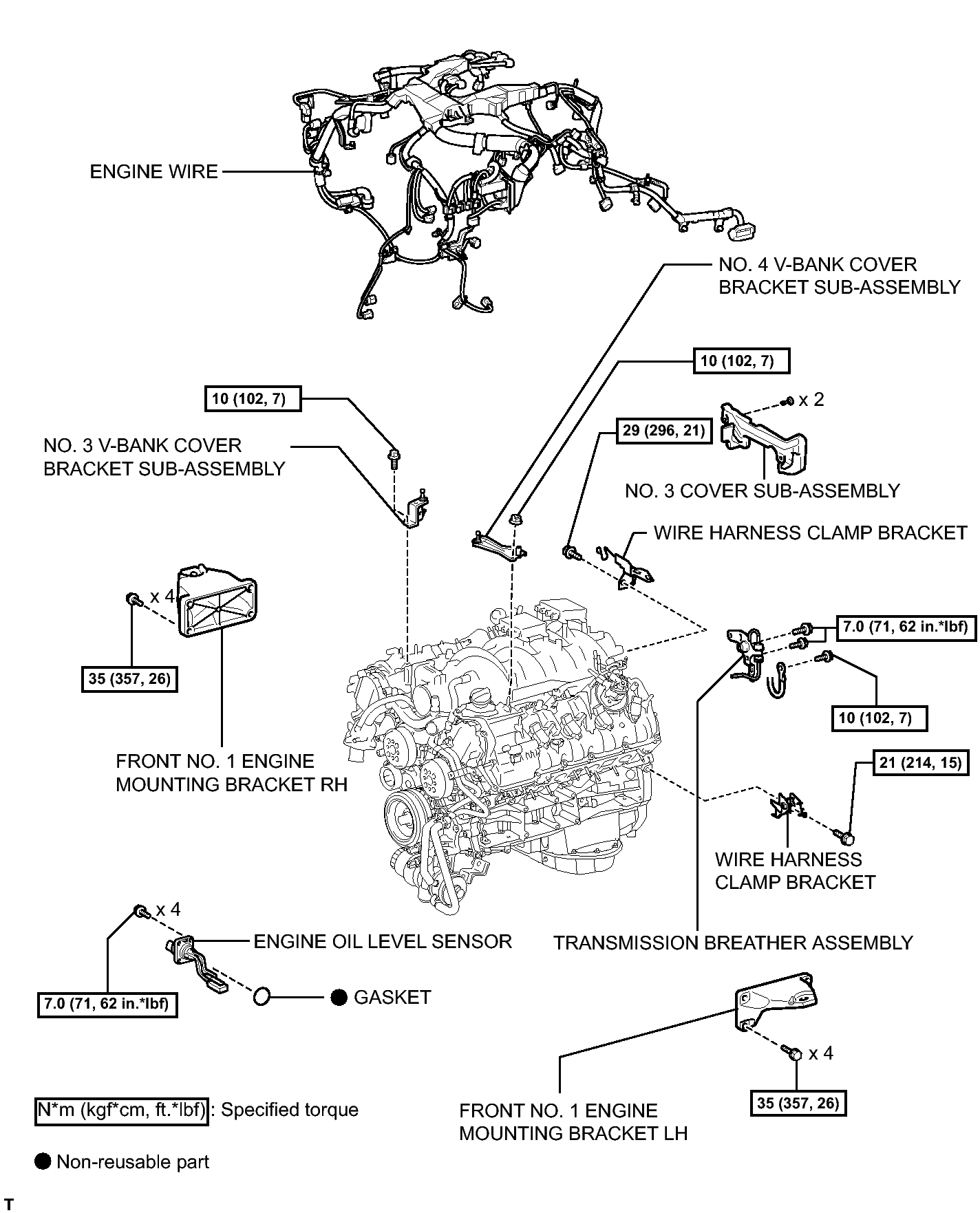

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

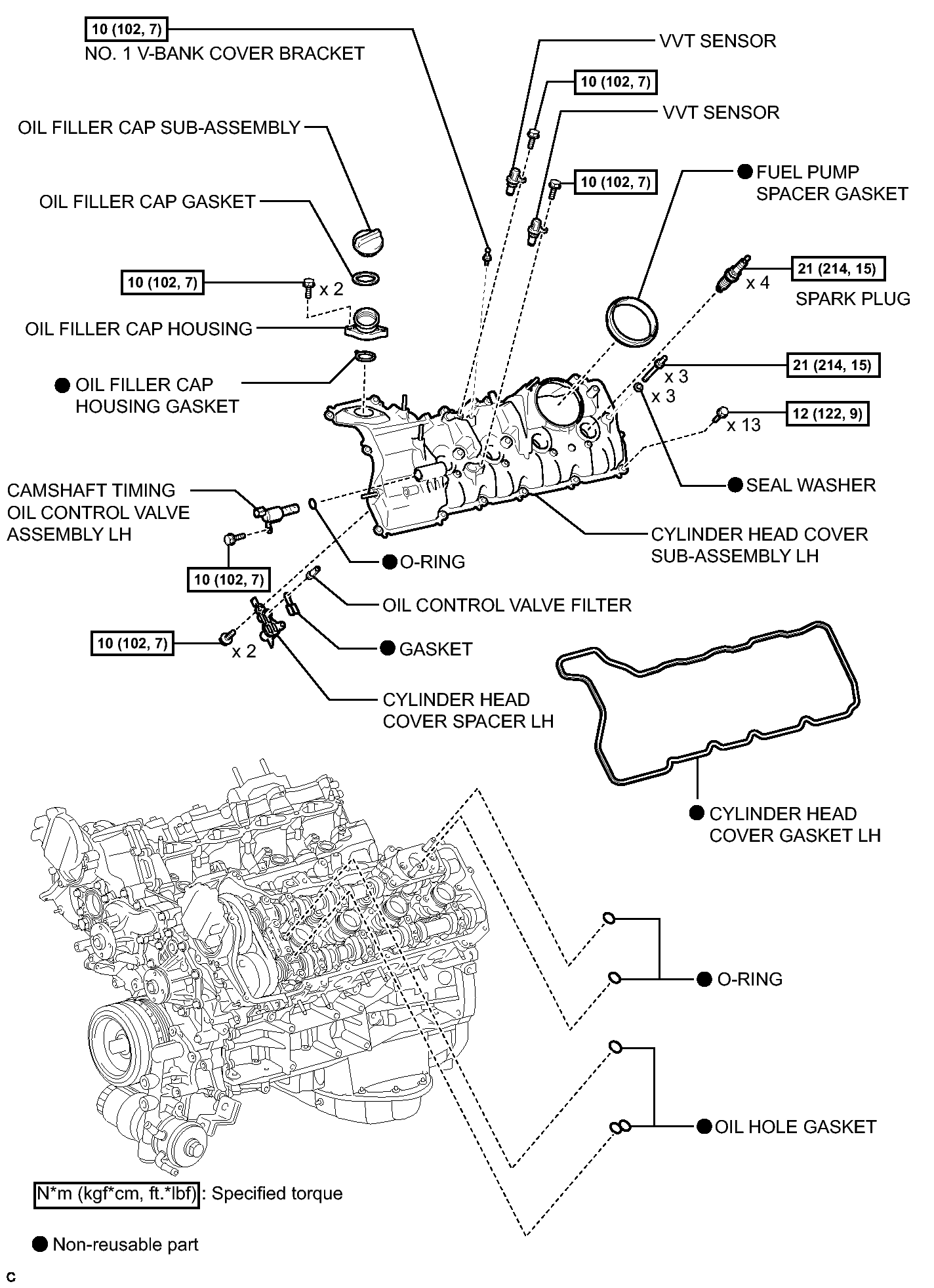

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (11 Of 15)

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (12 Of 15)

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (13 Of 15)

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (14 Of 15)

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (15 Of 15)
