Engine Assembly: Components: Illustration

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (1 Of 10)

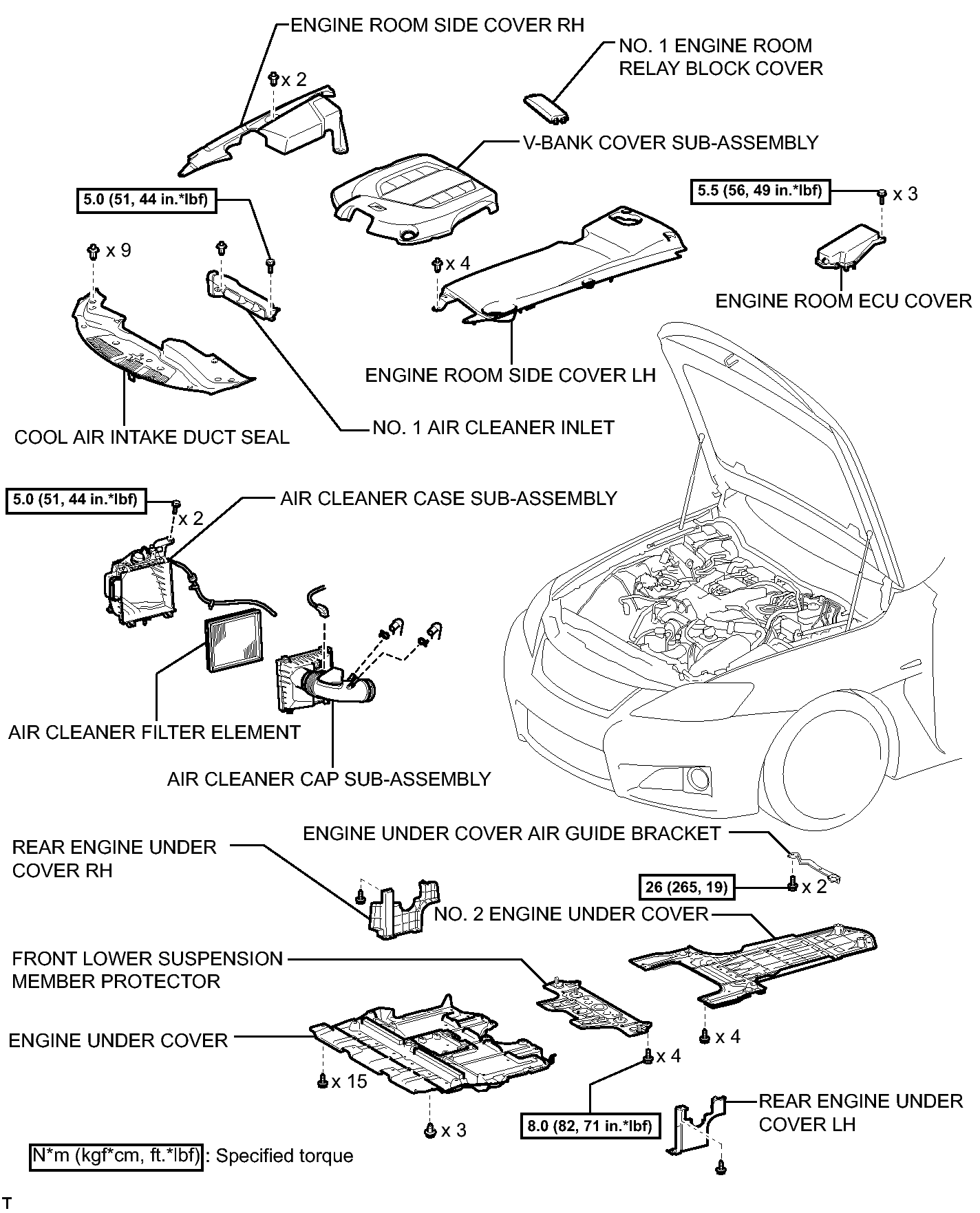

GTY149036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (2 Of 10)
GTY121017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (3 Of 10)

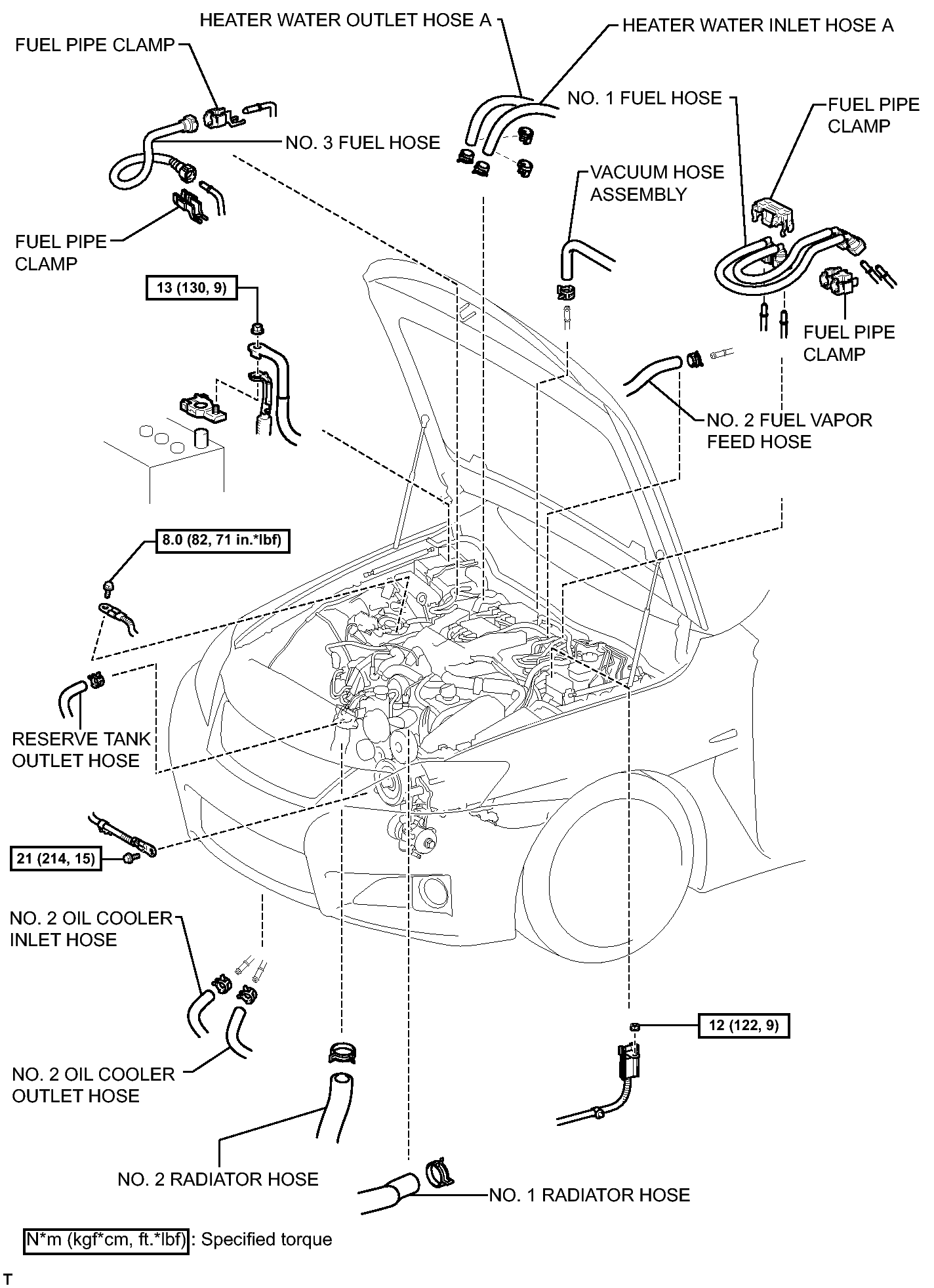

GTY149037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (4 Of 10)

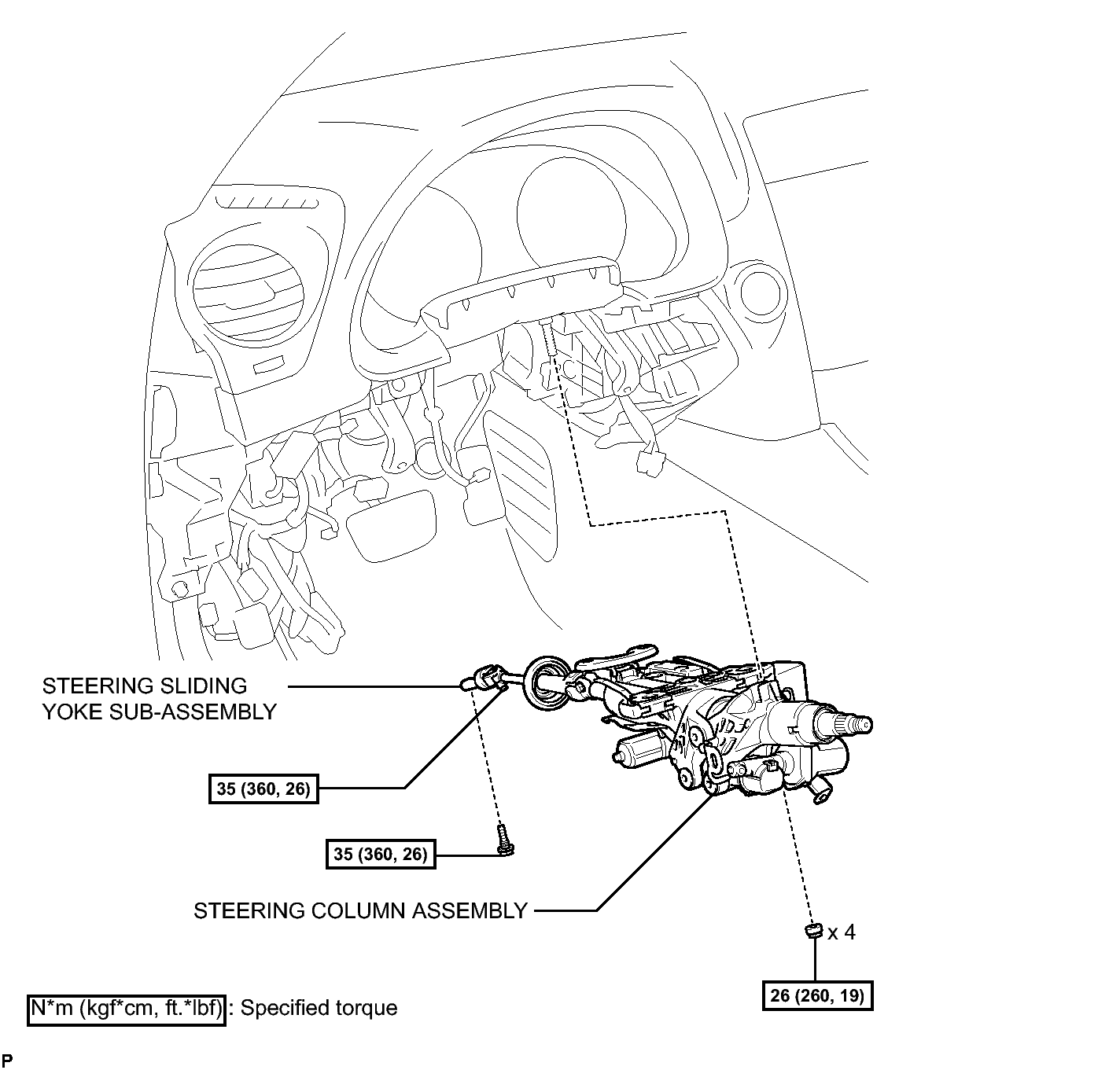

GTY120924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

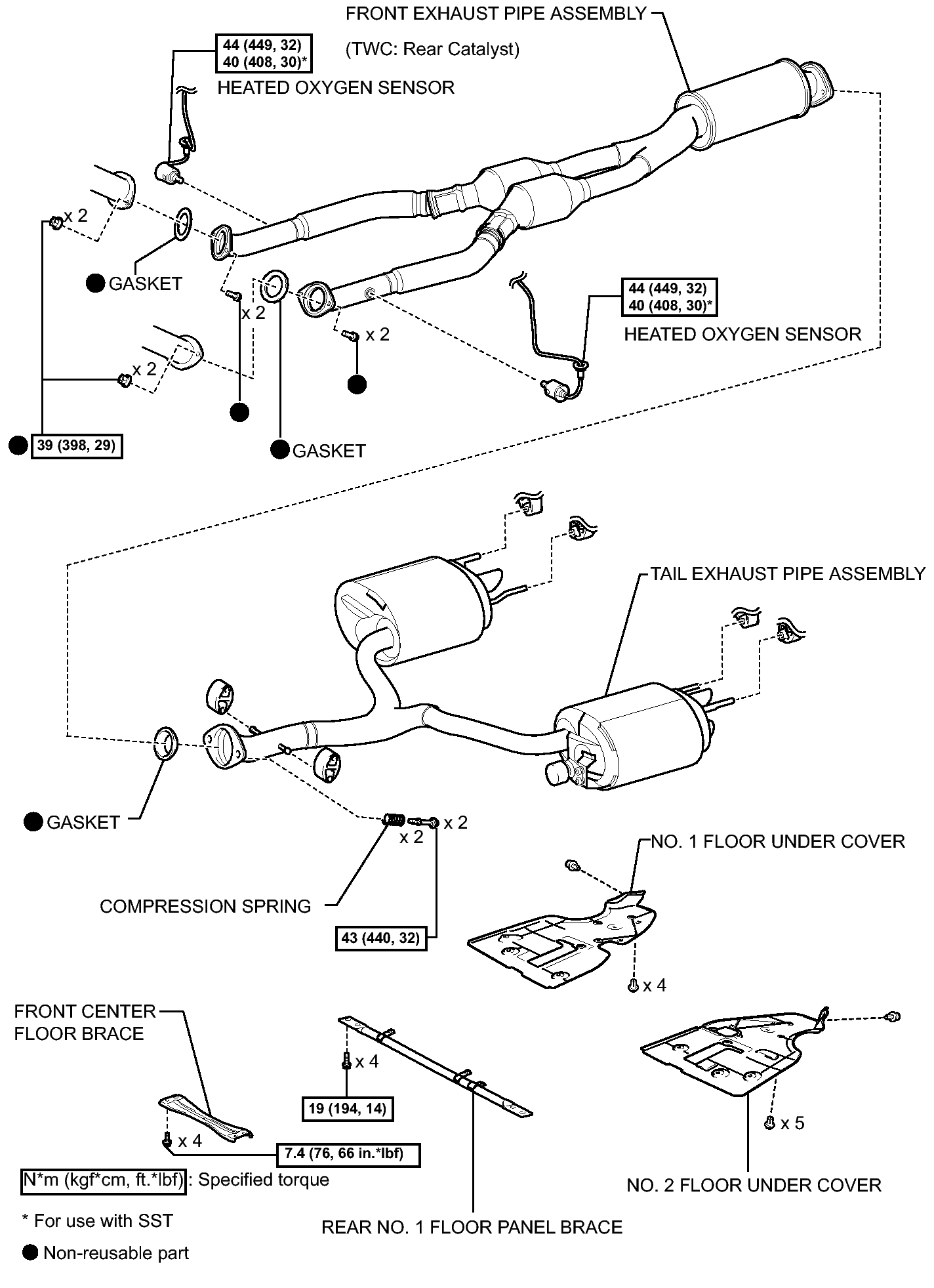

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (5 Of 10)
GTY266610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (6 Of 10)

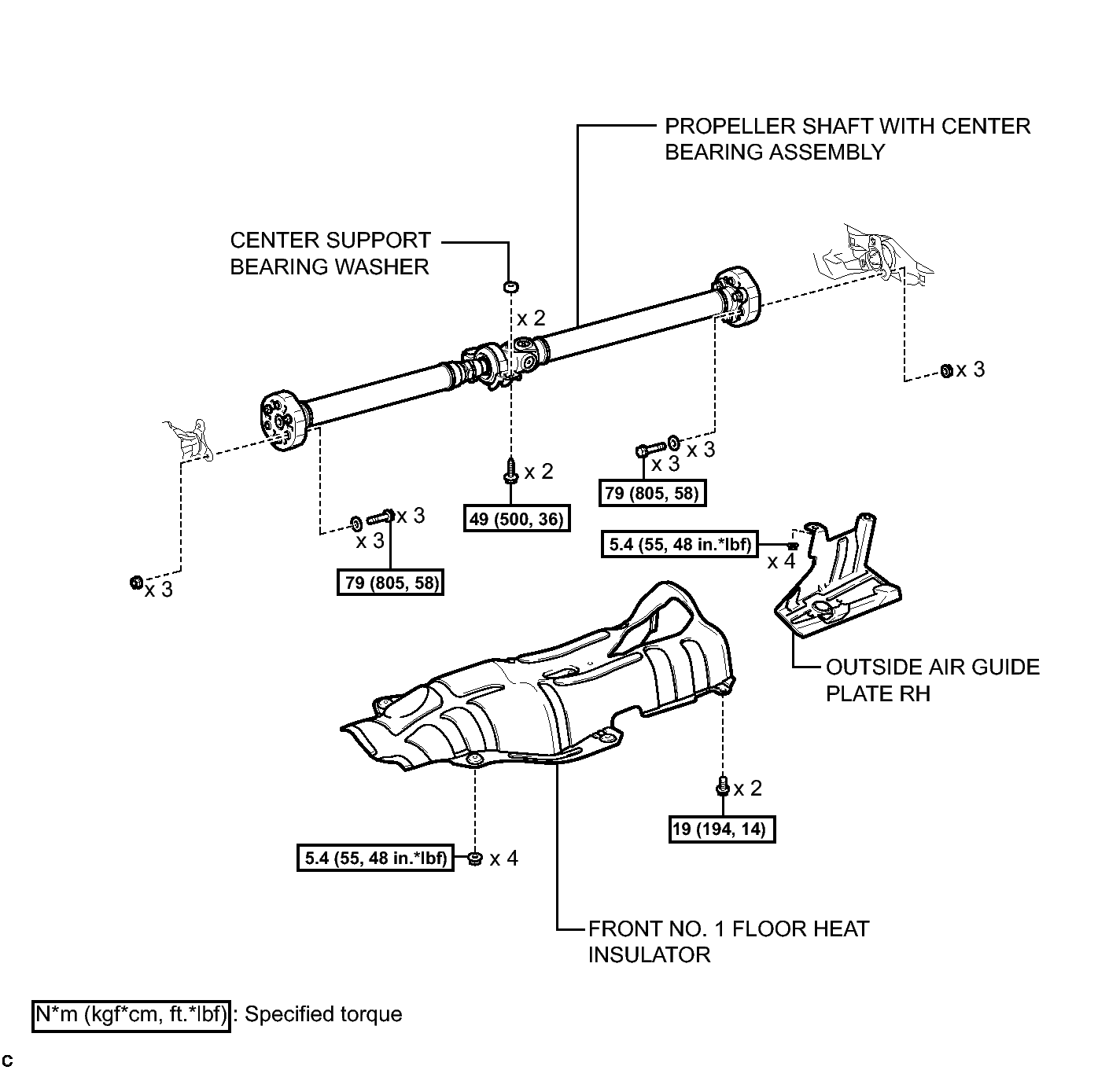

GTY109031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (7 Of 10)

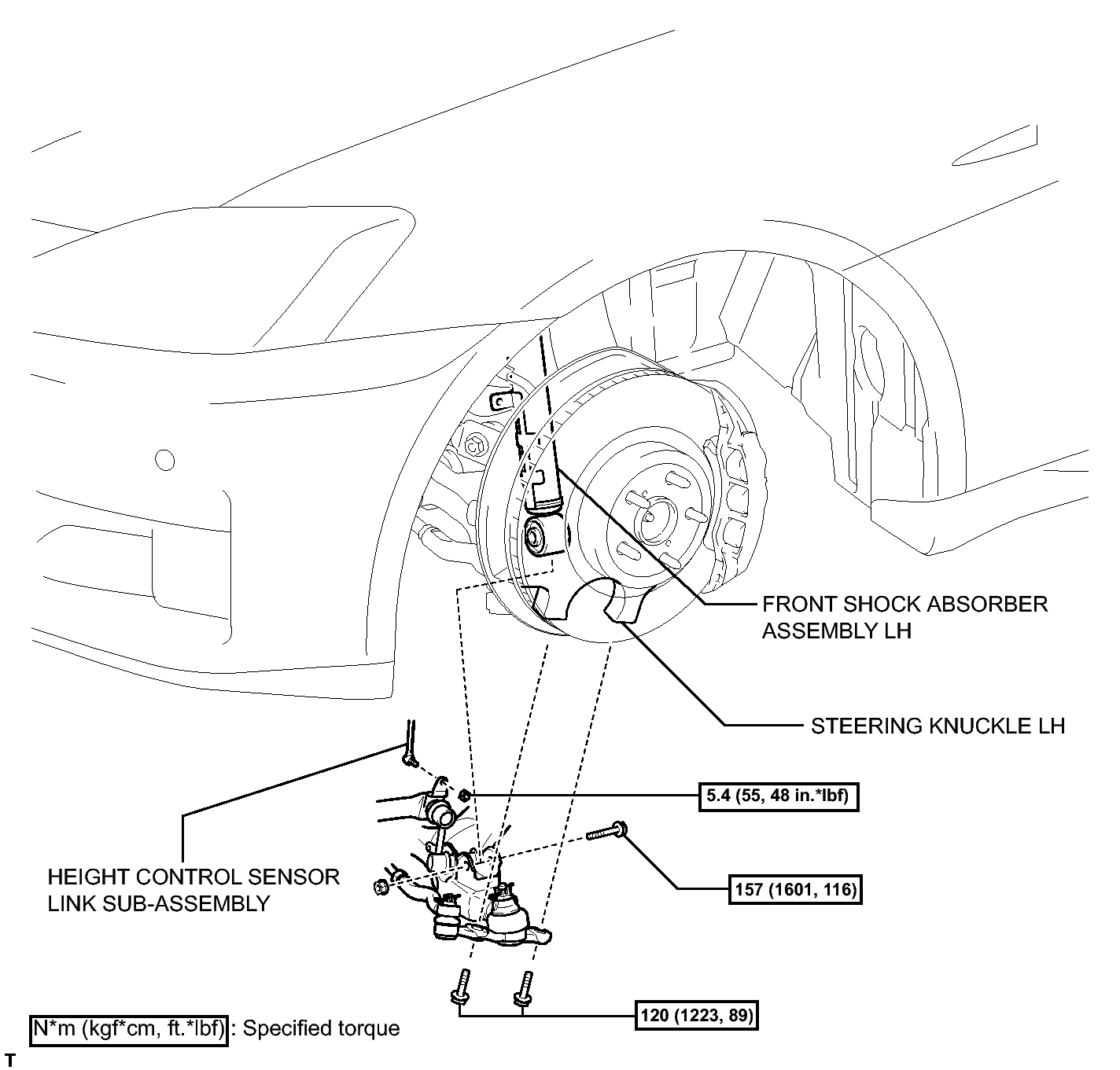

GTY148917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (8 Of 10)

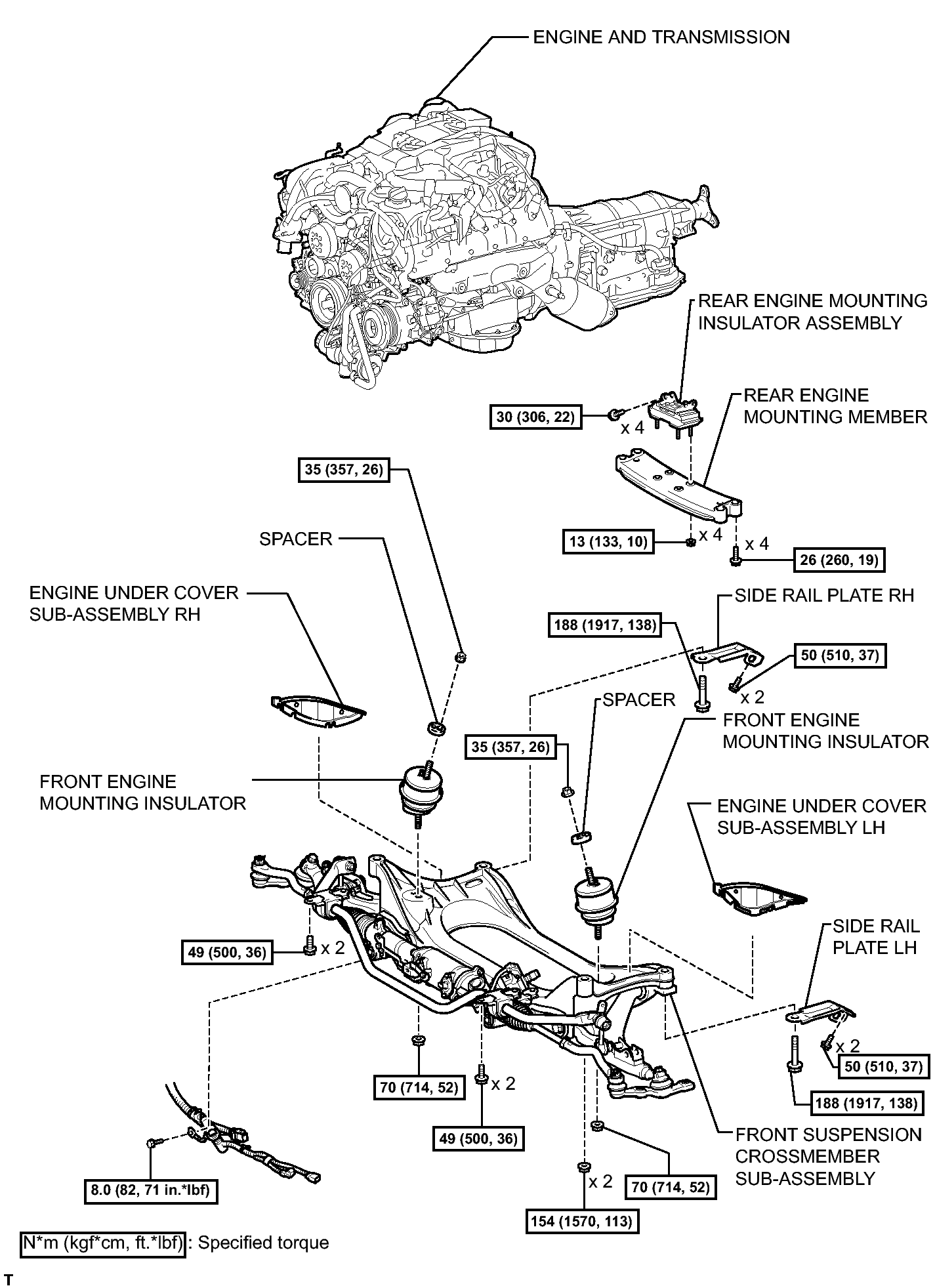

GTY359401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (9 Of 10)

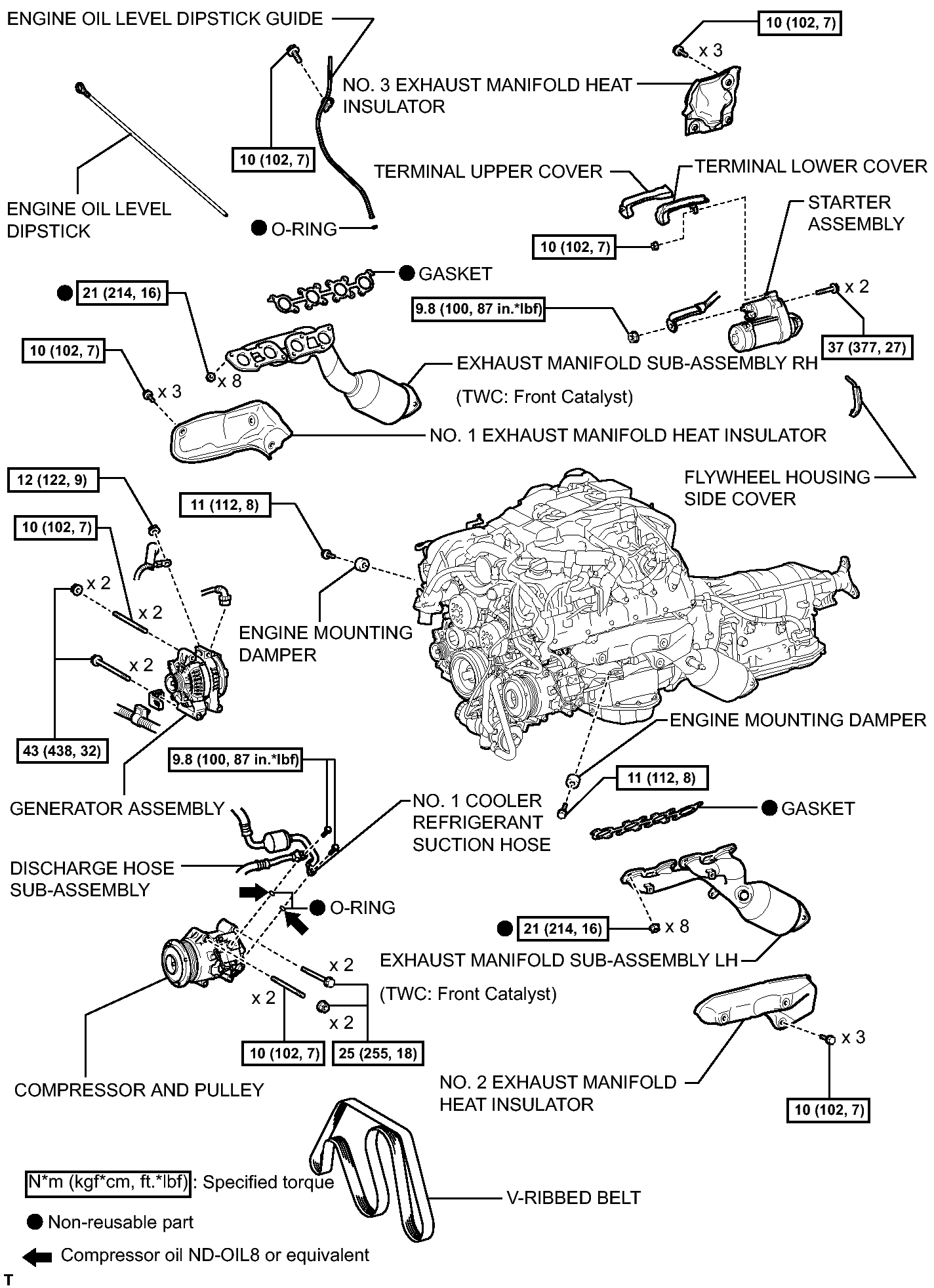

GTY271769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (10 Of 10)

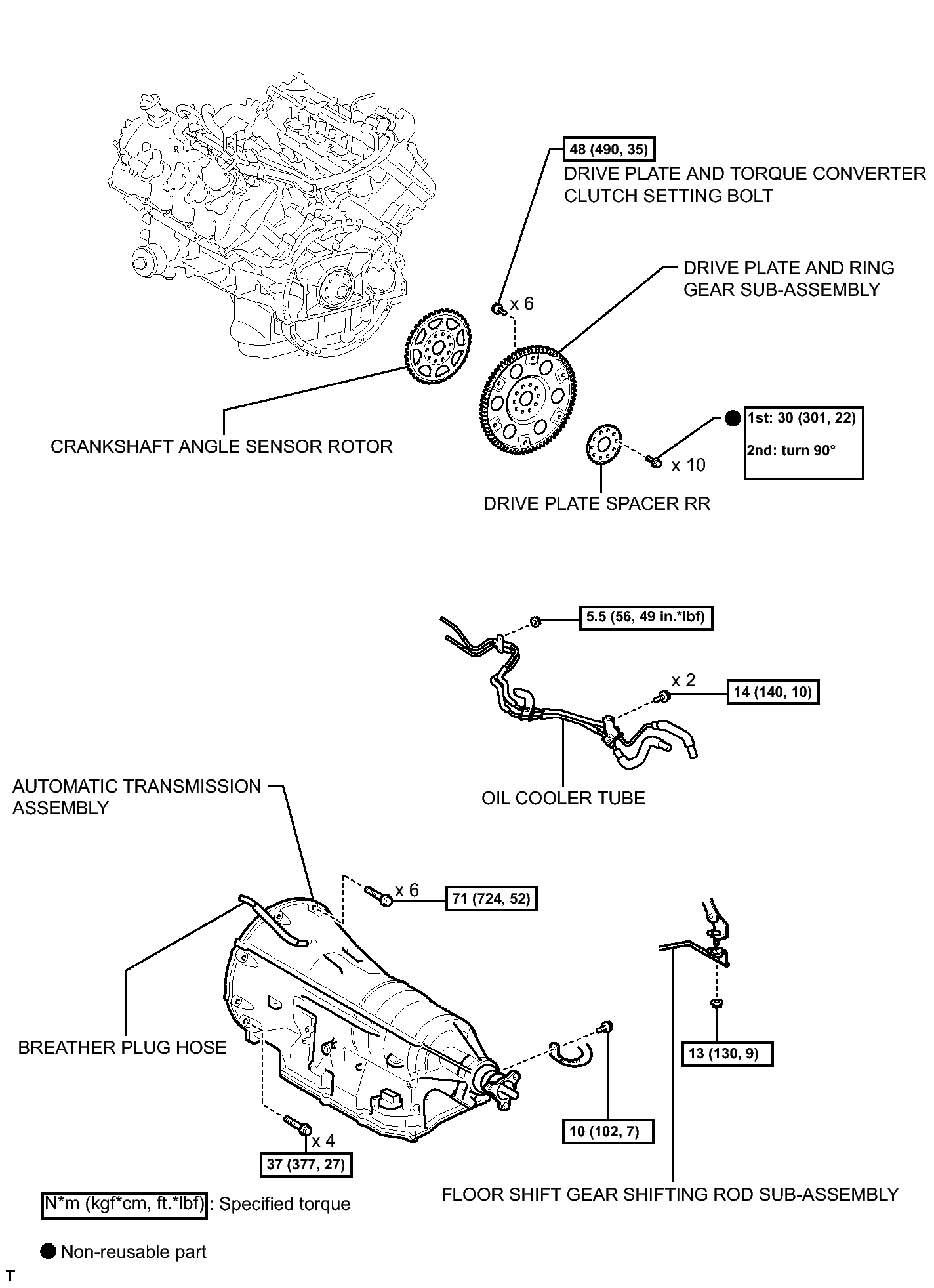

GTY139467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
