Front Seat Assembly: Components: Illustration

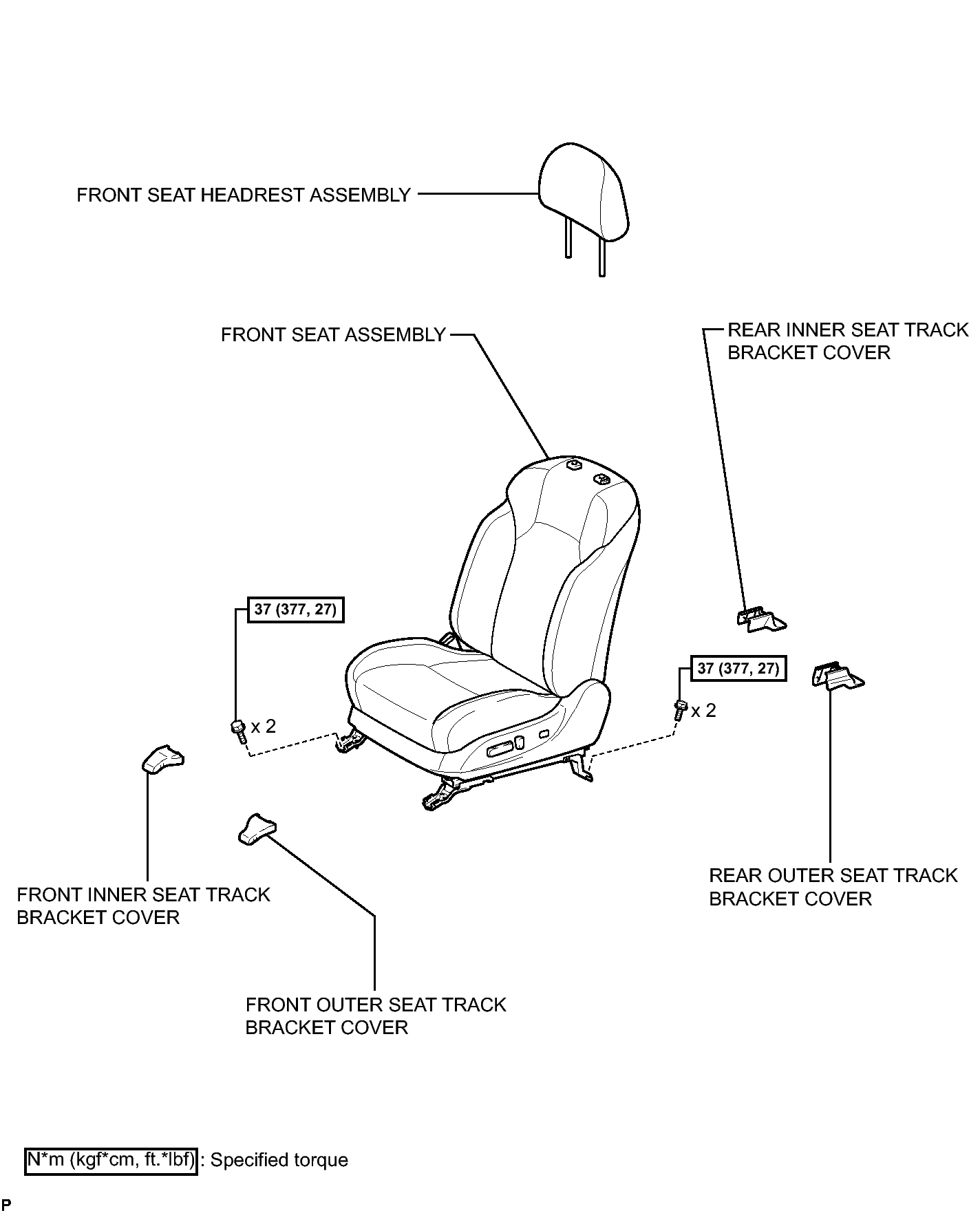

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (1 Of 6)
GTY142249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

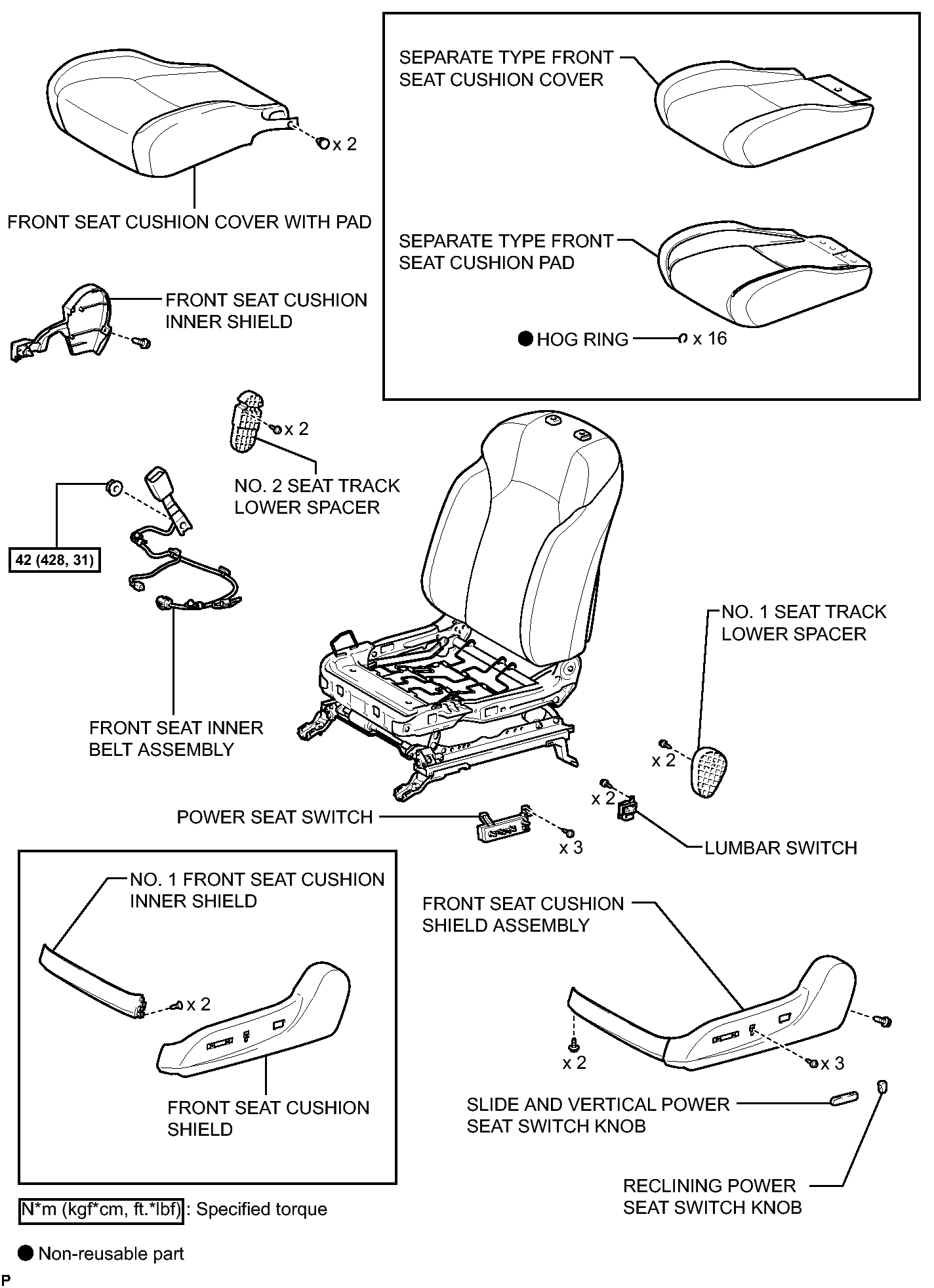

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (2 Of 6)
GTY114709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

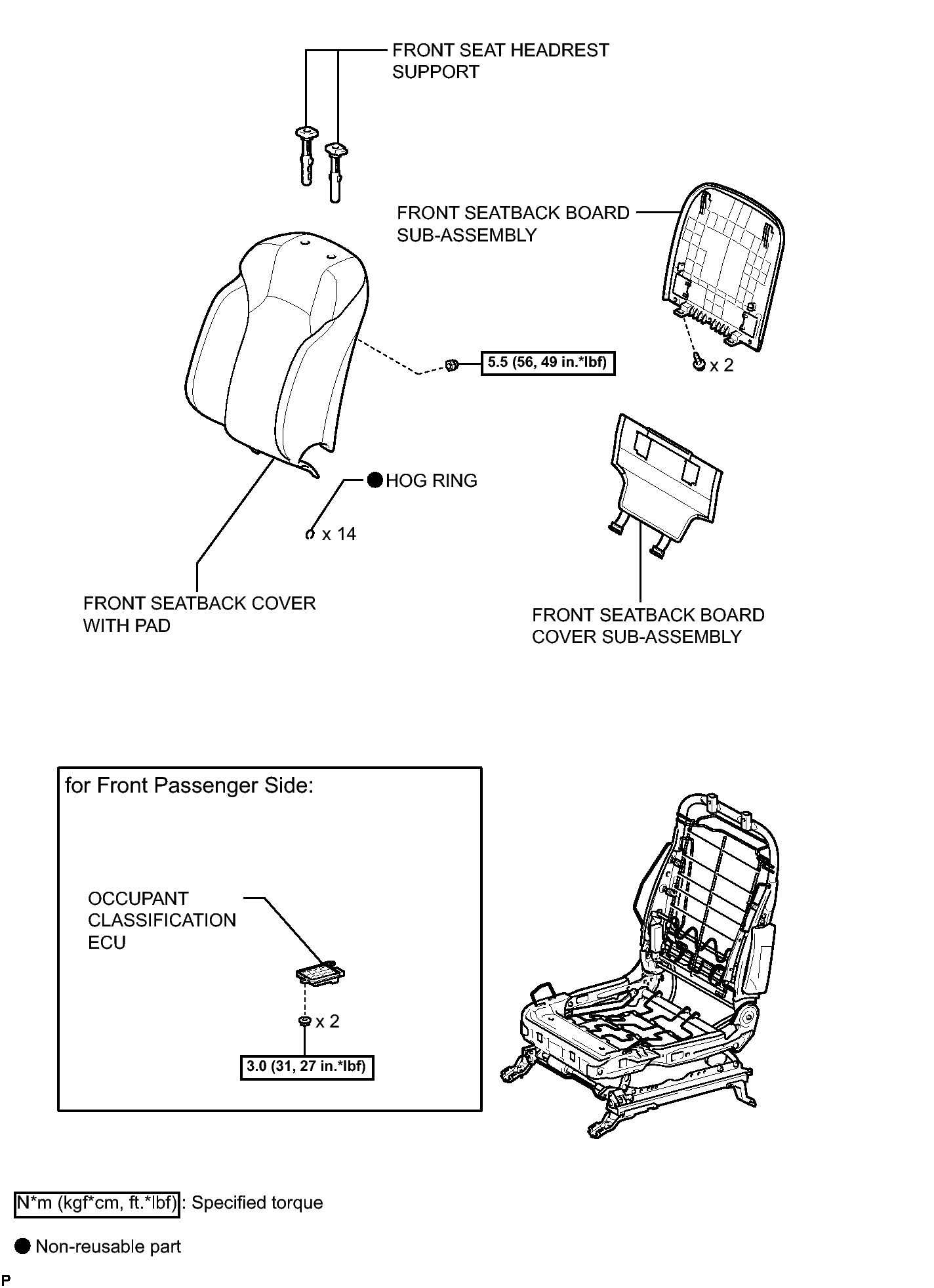

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (3 Of 6)
GTY114710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

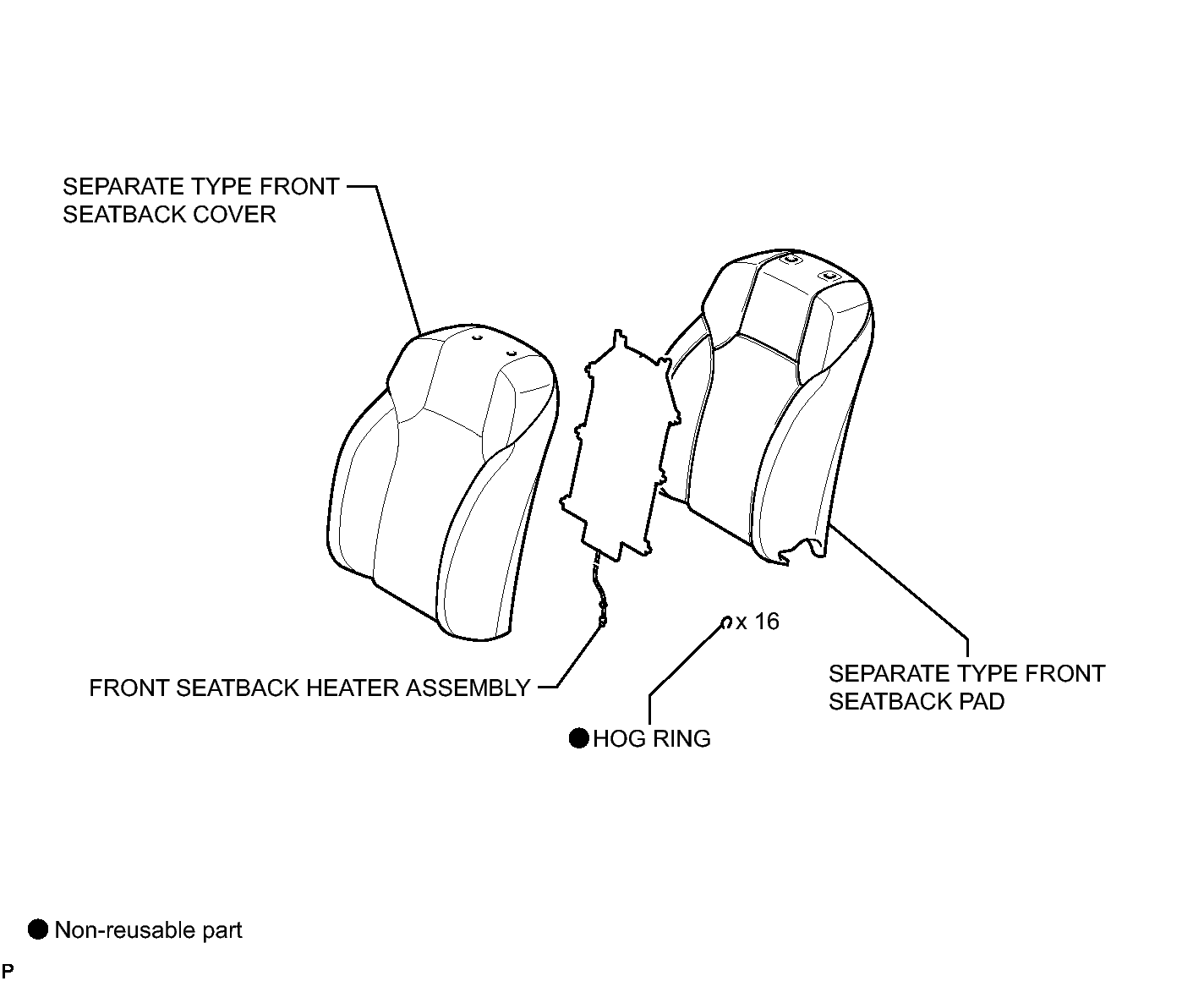

Fig 1: Identifying Front Seatback Heater Replacement Components (4 Of 6)
GTY261910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

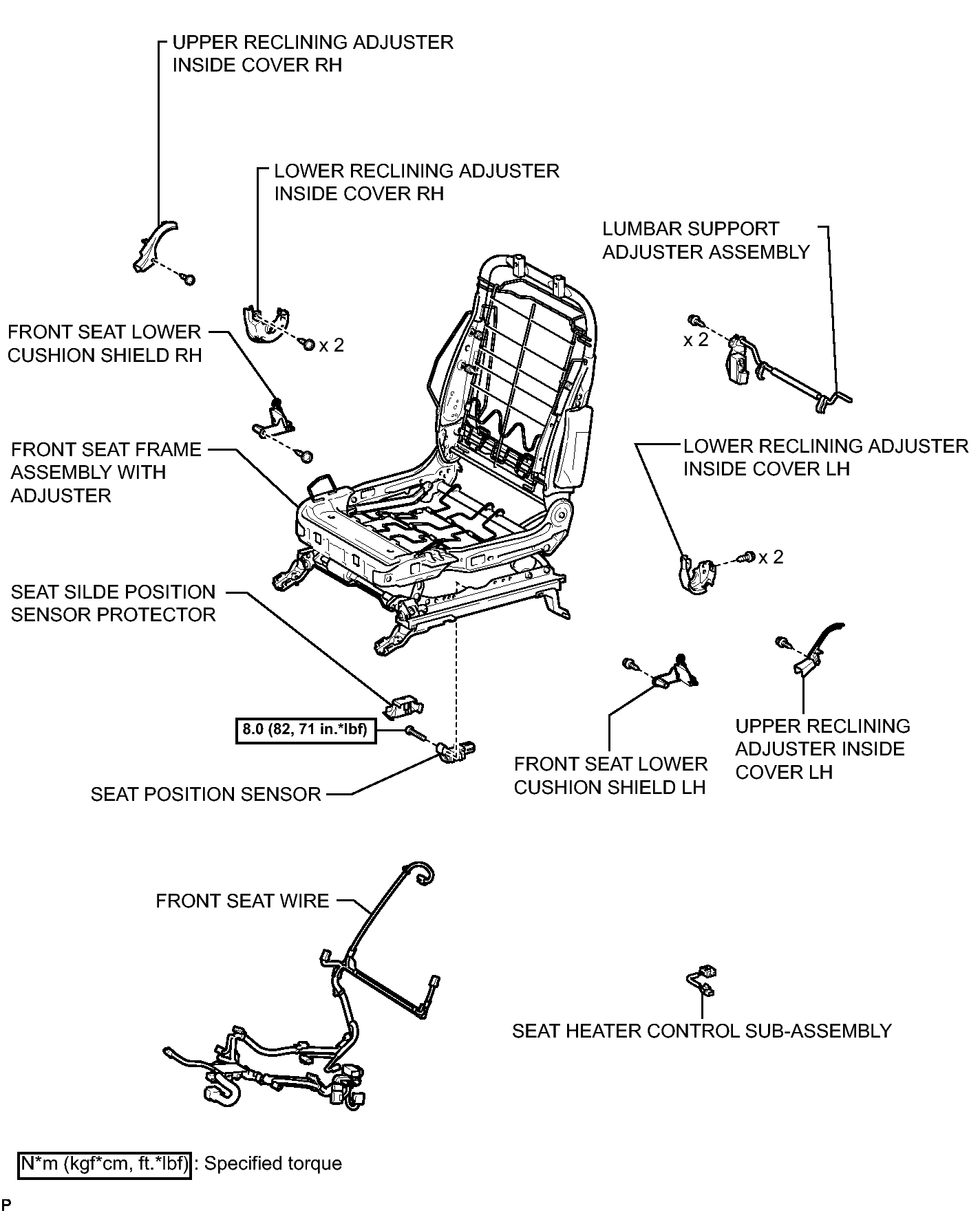

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (5 Of 6)
GTY274999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

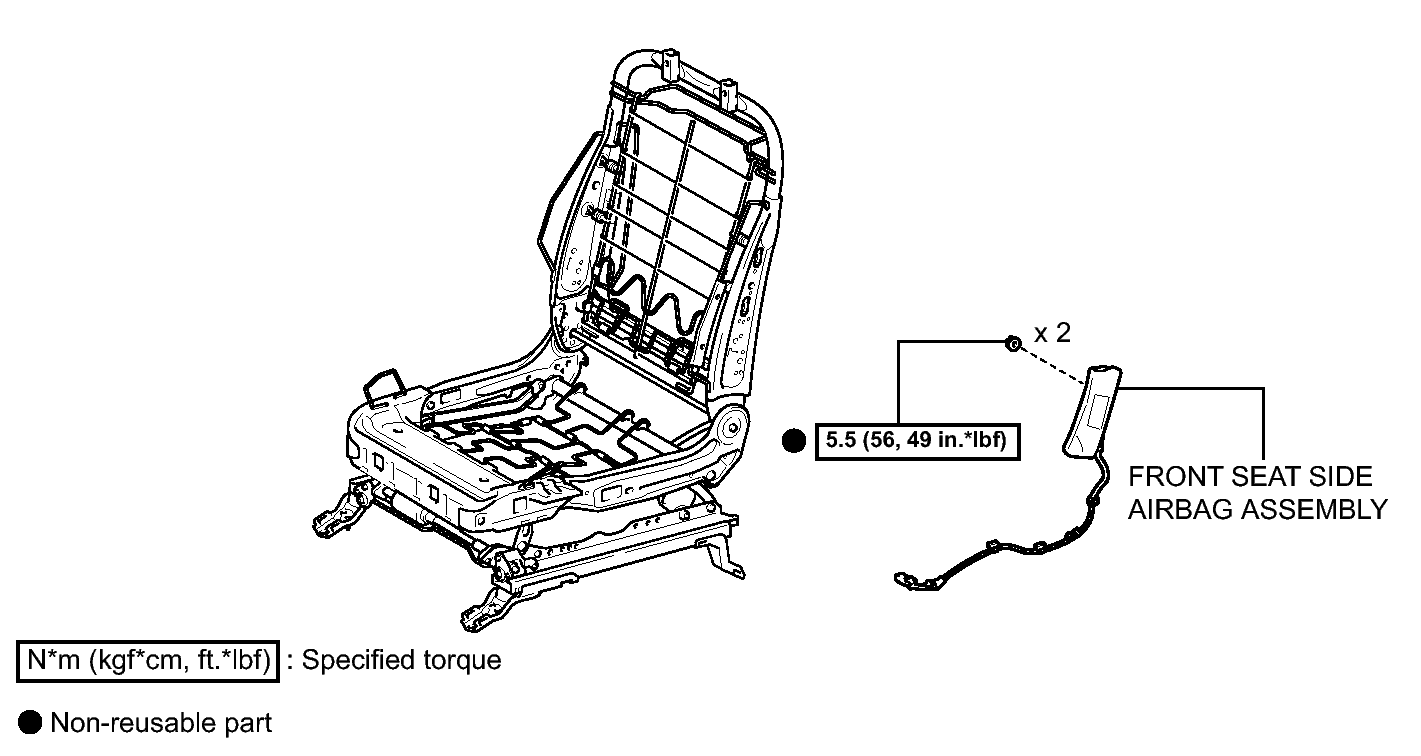

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (6 Of 6)
GTY354242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
