Parts Location: Illustration

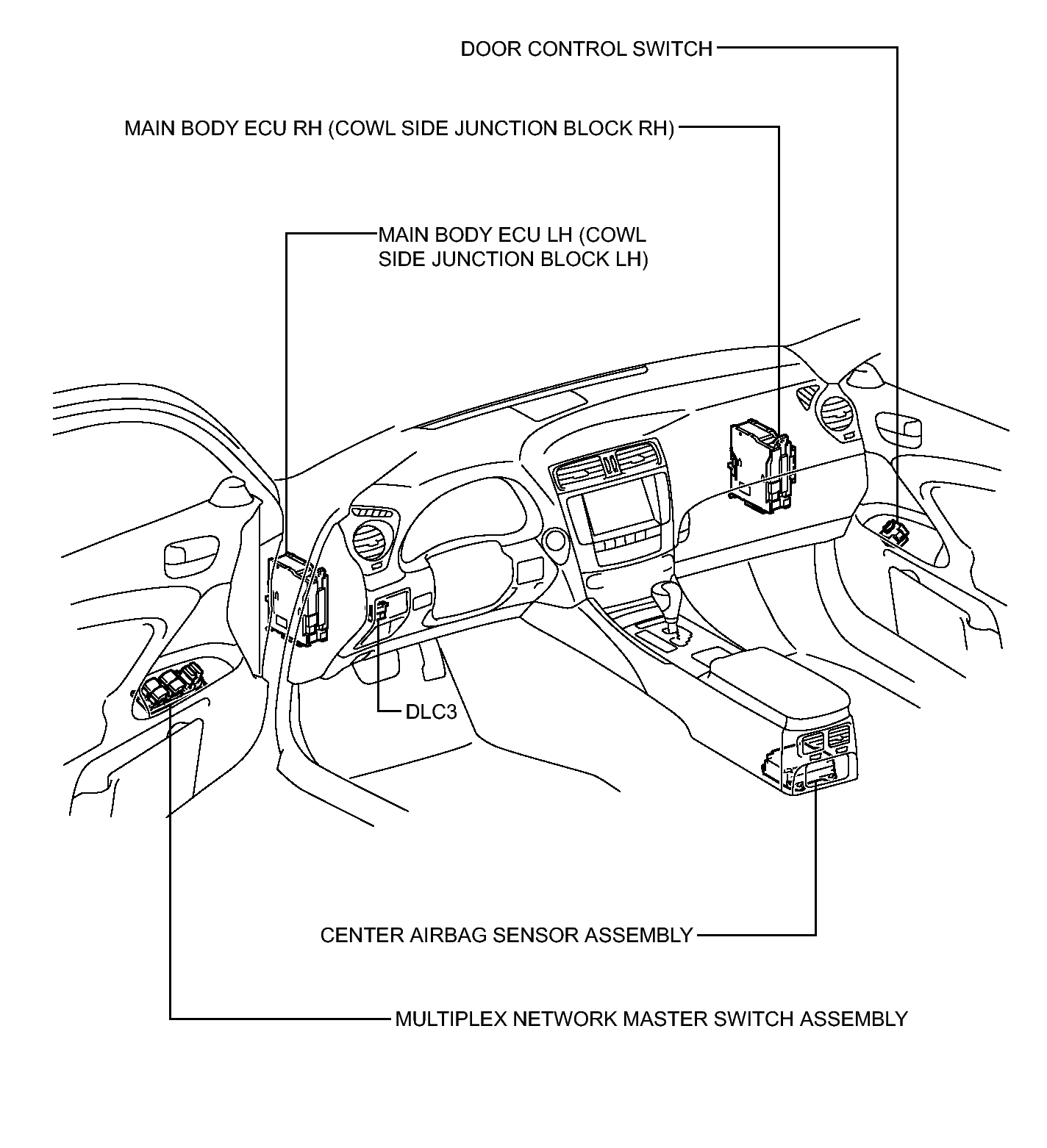

Fig 1: Identifying Power Door Lock Control System Components Location (1 Of 2)
GTY125582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

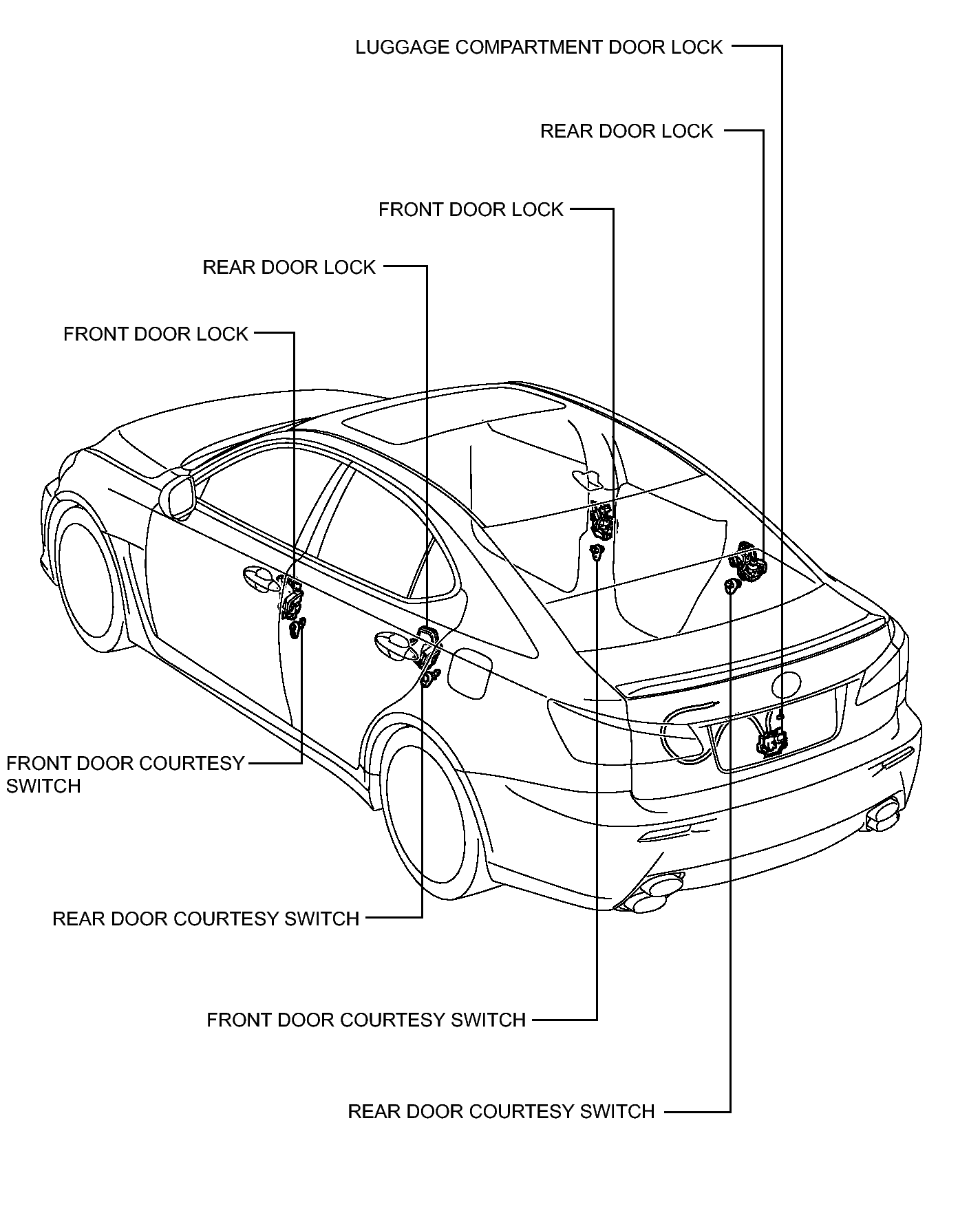

Fig 1: Identifying Power Door Lock Control System Components Location (2 Of 2)
GTY142123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
