Installation

2GR-FSE ENGINE CONTROL: HEATED OXYGEN SENSOR: INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR

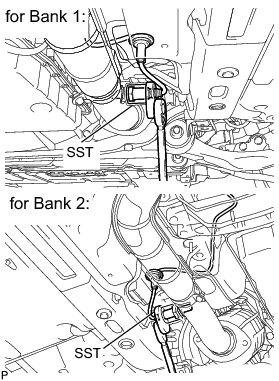

(a) Using SST, install the heated oxygen sensors.

SST : 09224-00010

without SST - Torque : 44 Nm (449 kgf-cm, 32 ft-lbf)

with SST - Torque : 40 Nm (408 kgf-cm, 30 ft-lbf)

NOTICE:
* The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
* The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.) Service Precautions.
* This torque value is effective when SST is parallel to the torque wrench.

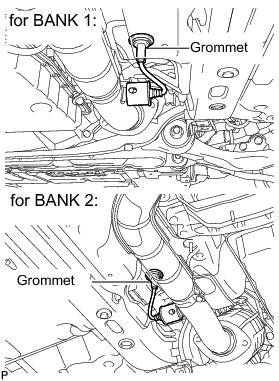

(b) Pass the heated oxygen sensor connectors through the floor panel and install the grommets.

2. INSTALL CONSOLE BOX Installation

3. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation

4. INSTALL FRONT ASH RECEPTACLE ASSEMBLY Installation

5. INSTALL CONSOLE PANEL SUB-ASSEMBLY Installation

6. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH Installation

7. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH Installation

8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
